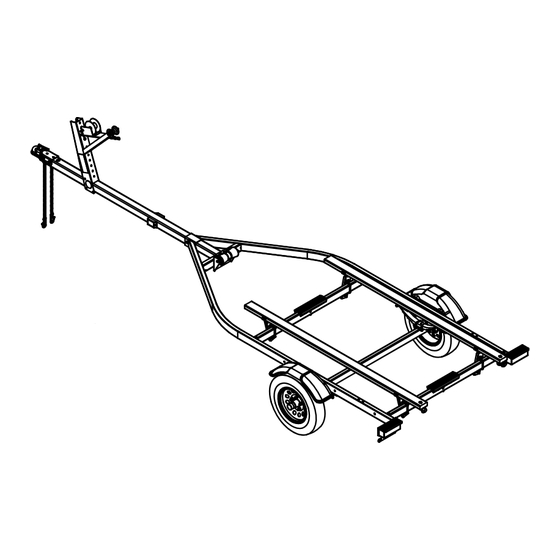

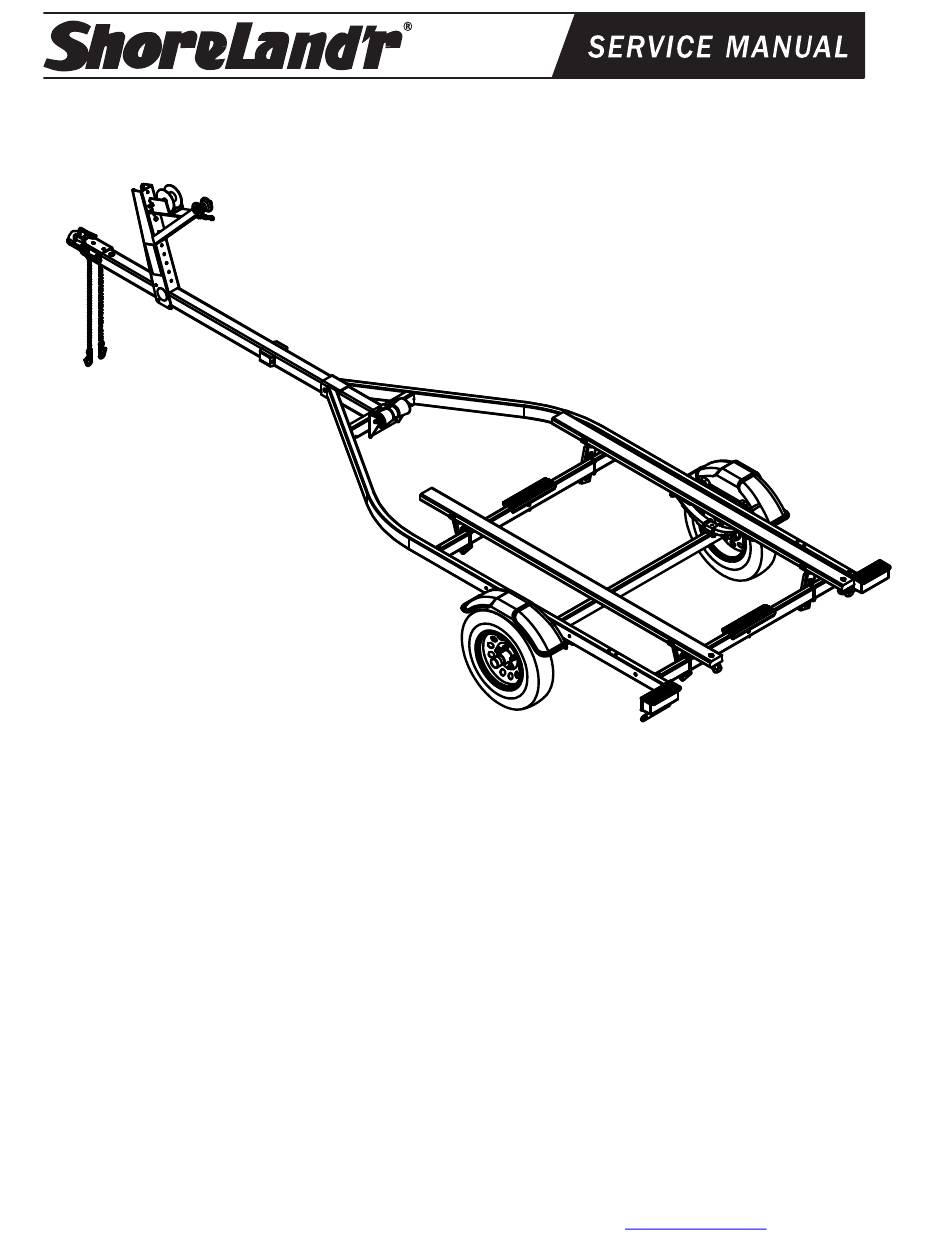

Model Shown
SLB14TS-___
SLB14TS, SLB14TM & SLB14TL (All Colors) Bundles Required:
*5.30 X 12-C Tire/ Mod Rim ..........................................2
65522--
Hardware Box - Bunk 56 Fishing Series .......................1
62340
Literature Bag - Trailers .................................................1
68827--
Frame Bundle - 56 Wide Fish - Bunk .............................1
65780--
Tongue 3X3X14 GA X 7' ................................................1
or
65537--
Tongue 3X3X14 GA X 8' 6" ............................................1
or
65516--
Tongue 3X3X14 GA X 10' ..............................................1
*Check with your dealer/customer service representative for current tire/rim
assembly part number.
ShoreLand'r offers their product line a painted finish.
When ordering parts it is important that you specify the
finish or color you have on your product. The five (5) digit
number along with a two (2) digit space _ _, note the parts
which can be purchased with various finishes. When
ordering these items use the five (5) digit number along
with a two (2) digit suffix for the proper finish.
00 .........Galvanized
03 .........Black
Midwest Industries, Inc.
Page 1 of 11
SLB14TS-__, SLB14TM-__, & SLB14TL-__
1400 lb Fishing Series Trailers
Ida Grove, IA 51445
800-859-3028
www.shorelandr.com
0004224
8/17/2010
Advertisement
Related Manuals for ShoreLand'r SLB14TS Series
Summary of Contents for ShoreLand'r SLB14TS Series
- Page 1 SLB14TS-__, SLB14TM-__, & SLB14TL-__ 1400 lb Fishing Series Trailers Model Shown SLB14TS-___ SLB14TS, SLB14TM & SLB14TL (All Colors) Bundles Required: *5.30 X 12-C Tire/ Mod Rim ..........2 65522-- Hardware Box - Bunk 56 Fishing Series .......1 62340 Literature Bag - Trailers ..........1 68827-- Frame Bundle - 56 Wide Fish - Bunk ......1 65780--...
- Page 2 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorelandr.com 0004224 Page 2 of 11 8/17/2010...
- Page 3 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorelandr.com 0004224 Page 3 of 11 8/17/2010...
- Page 4 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorelandr.com 0004224 Page 4 of 11 8/17/2010...
- Page 5 Tire Size and Carrying Capacity Chart Tire Size ......5.30 X 12-C GVWR .......2000 lb. Carrying Capacity ....1400 lb. Axle ........Non-Brake Refer to the tire side wall for correct tire pressure. NOTE: Brakes available as optional equipment Recommended carrying capacity is based on shipping weight of the trailer with standard equipment.
- Page 6 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorelandr.com 0004224 Page 6 of 11 8/17/2010...
- Page 7 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorelandr.com 0004224 Page 7 of 11 8/17/2010...
-
Page 8: Tongue Assembly
TONGUE ASSEMBLY Place the frame to be assembled on saw horses or stands to assist in the assembly. Remove all items that are banded to the frame. Sort the items in the hardware box by item and the hardware by size. Locate the tongue for the trailer. - Page 9 Winch Post Assembly The winch post assembly is pre-assembled and is shipped banded to the frame. See Diagram D. Place the winch post on the tongue in the approximate location. Attach to the tongue using three (3) 3/8” x 4” hex bolts and 3/8”...
- Page 10 Repeat the above process on the bunk on the right side of the trailer. The bunk assembly is now complete but may need to be adjusted once the boat is placed on the trailer. Keel Roller Installation Remove the keel roller assembly from the hardware box. Position it on the back side of the front cross member of the frame as shown in Diagram A.
- Page 11 fender to the trailer frame. The axle can then be moved forward or backward to get the proper tongue weight. A recommended tongue weight for your trailer is 7-10% of the total load including boat, motor, and trailer. Adjustments are now complete. Double check your boat for fit. If desired fit has been achieved, tighten all fasteners that may have either been left loose or have been loosened to do the adjusting.
