Setup

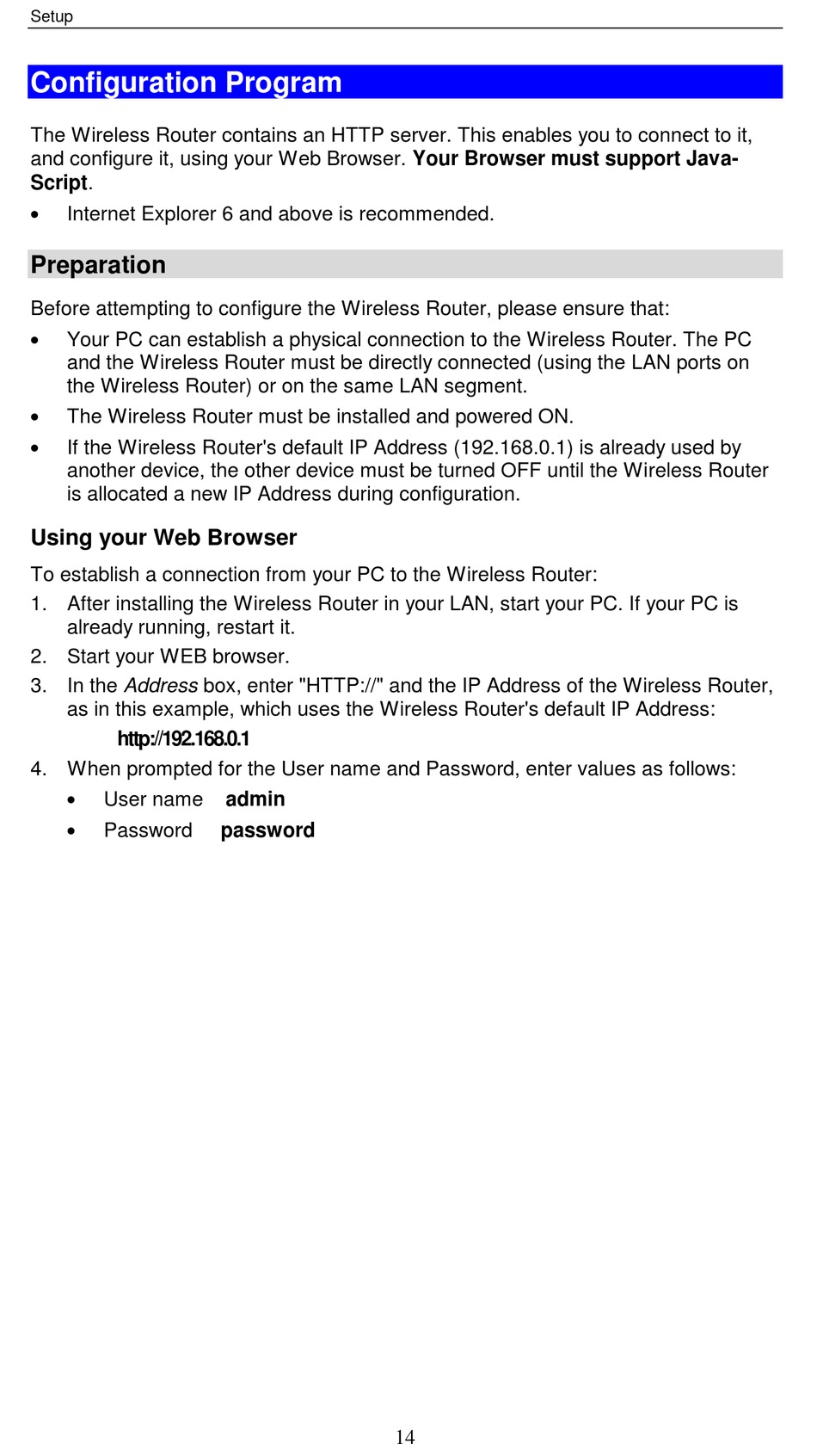

Configuration Program

The Wireless Router contains an HTTP server. This enables you to connect to it,
and configure it, using your Web Browser. Your Browser must support Java-
Script.

Internet Explorer 6 and above is recommended.
Preparation
Before attempting to configure the Wireless Router, please ensure that:

Your PC can establish a physical connection to the Wireless Router. The PC
and the Wireless Router must be directly connected (using the LAN ports on
the Wireless Router) or on the same LAN segment.

The Wireless Router must be installed and powered ON.

If the Wireless Router's default IP Address (192.168.0.1) is already used by
another device, the other device must be turned OFF until the Wireless Router
is allocated a new IP Address during configuration.
Using your Web Browser
To establish a connection from your PC to the Wireless Router:
1. After installing the Wireless Router in your LAN, start your PC. If your PC is
already running, restart it.
2. Start your WEB browser.
3. In the Address box, enter "HTTP://" and the IP Address of the Wireless Router,
as in this example, which uses the Wireless Router's default IP Address:
http://192.168.0.1
4. When prompted for the User name and Password, enter values as follows:

User name

Password
admin
password
14
