LevelOne CamCon FCS-1060 Specification Sheet

P/T/Z Network Camera
H/W Version: 2

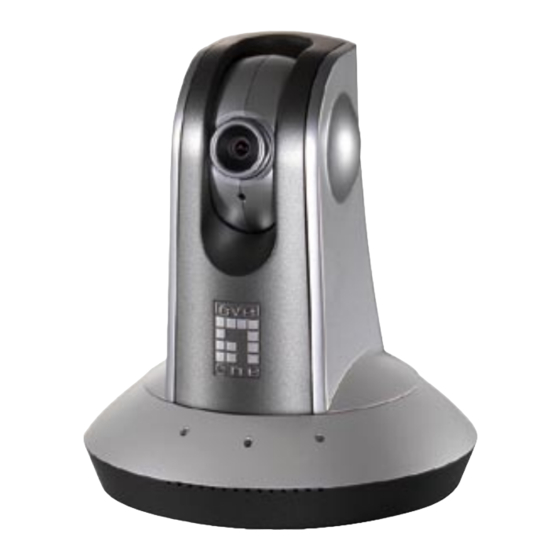

LevelOne FCS-1060 is a Pan, Tilt and Zoom
IP Network camera, offering superior image
quality and optimized bandwidth efficiency
through existing Ethernet connections. It is
able to broadcast live images to your handheld
mobile phone or PDA and supports 3GPP/ISMA
RSTP format via a 3G mobile phone.
Pan/Tilt/Zoom Network Camera
The FCS-1060 contains a CMOS sensor to
record brilliant images up to 640 x 480 pixels.
The Auto Pan function allows the user to
define individual cameras automatic panning
movements thus providing the capability to
survey the widest range of targets over a
pan range of 350-degrees and a tilt range of
125-degrees. The Patrol mode allows the user
to preset up to 20 spots for sequential auto-
monitoring.
Key Features
- Built-in 1/4" CMOS sensor to deliver high
quality streaming video
- Motorized wild-range Pan/Tilt.
- Supports 3GPP/ISMA RTSP (Real Time
Streaming Protocol)
- Intelligent Motion Detection
- Built-in Web server for remote accessing image
from general web browser anywhere
- Free software included (Industry-leading
32-channel IP CamSecure Lite™ software)

Advanced Monitoring Features
The motion detection feature provides
operational flexibility to record only when there
is motion thus saving record storage. With a
built-in web server, the FCS-1060 provides an
easy user interface for remote access to receive
video over the Internet with the Internet
Explorer browser.
Easy Maintenance and Configuration
With LevelOne's free bundled software,
administrators are able to monitor up to 32
channels simultaneously. The FCS-1060 also
provides recording capabilities for synchronized
video & audio when captured by event-driven
or schedule recording modes.
1. LAN Port
2. Power Cord Socket
1 2
Works Well With
FCS-9464
IP CamSecure Pro64 Mega
FCS-7011
1-port PoE Video Server
FCS-1060
