Instructions – Parts List

Parts

PLURAL COMPONENT

Static Mixer Control

3000 psi (21 MPa, 210 bar) Maximum Fluid Working Pressure

Part No. 207861, Series C

Part No. 948338, Series A

Read warnings and instructions.

See page 2 for Table of Contents.

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441

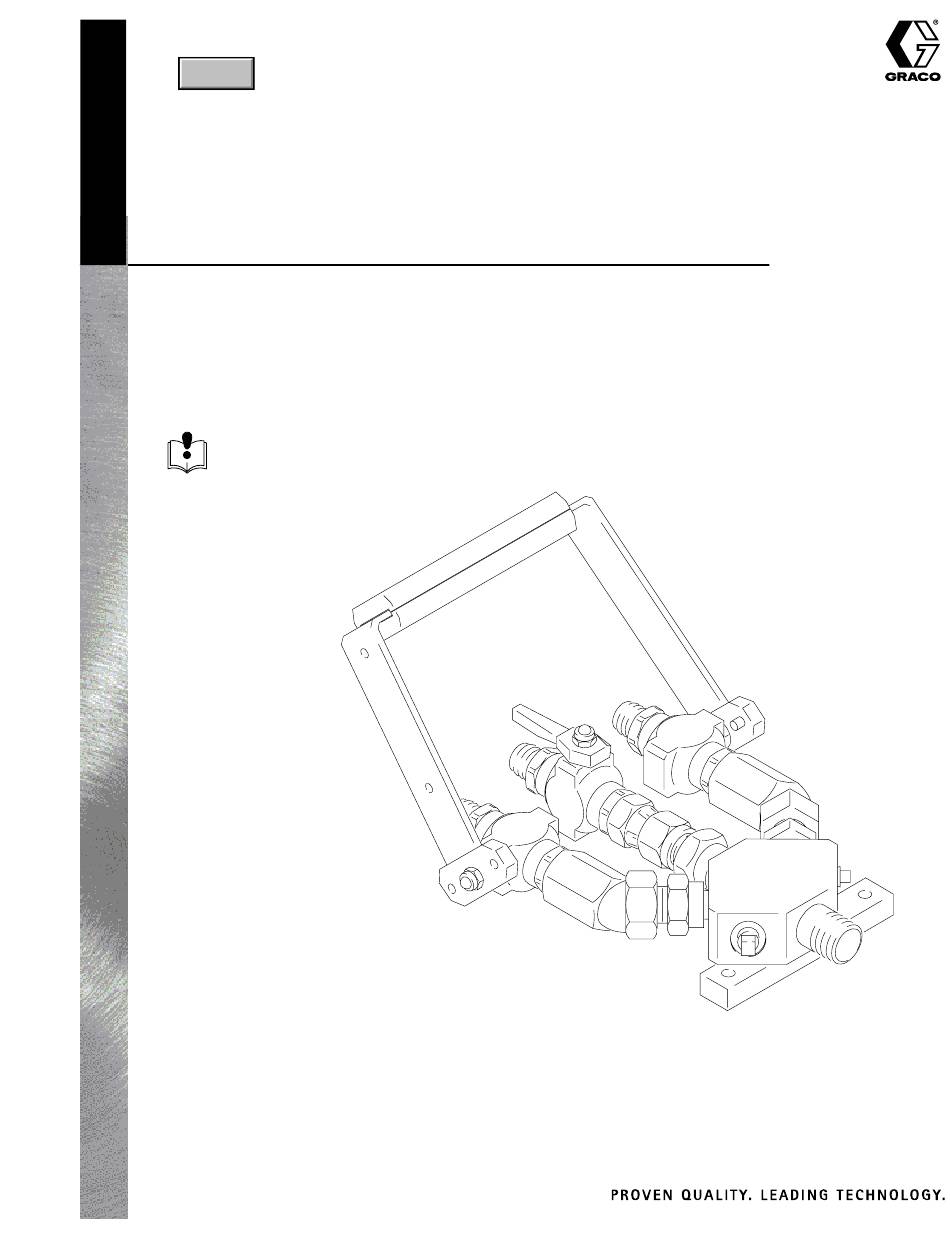

Model 207861 Shown

306992F

8613A

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco C Series

Page 1 Part No. 207861, Series C Part No. 948338, Series A Read warnings and instructions. See page 2 for Table of Contents. Model 207861 Shown 8613A GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1984, Graco Inc. is registered to I.S. EN ISO 9001...
Page 2 D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
Page 3 WARNING INJECTION HAZARD Spray from the gun/valve, hose leaks or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin might look like just a cut, but it is a serious injury.
Page 4 REACTIVE CHEMICALS HAZARD Graco Inc. does not manufacture or supply any of the reactive chemical components that are used in this equipment, and is not responsible for their effects. Because of the vast number of chemicals that could be used, and their varying chemical reactions, the buyer and user of this equipment should de- termine all facts relating to the materials used, including any of the potential hazards involved.
Page 5 Installation For assistance in setting up a plural component sys- Flushing tem, you should contact your Graco distributor. This When you stop spraying/dispensing for a short time, will help ensure that you select the proper type and close the mixer material valves and open the solvent size of equipment for your job.
Page 6 Troubleshooting 2. Check all possible causes and solutions in the WARNING Troubleshooting Chart before disassembling the mixer for repair. If the problem is still not corrected, To reduce the risk of serious injury whenever you refer to the Troubleshooting section of the sepa- are instructed to relieve pressure, always follow the rate manuals supplied with each component in Pressure Relief Procedure on page 5.
Page 7 Service Model 207861, Series C Ball Valve Detail 8612A Fig. 2 306992...
Page 8 Parts Model 207861, Series C Ball Valve Detail 8612A Fig. 3 306992...
Page 9 Parts Model 207861, Series C Part No. Description Qty. Part No. Description Qty. 217561 LEVER, actuating 102410 CAPSCREW, soc hd; 6–32 thd; 207411 SWIVEL, union adapter; 45_; 3/8” (10 mm) long 3/8 npt(f) 102598 CAPSCREW, soc hd; 10–32 thd; 213040 BALL VALVE 1/2”...
Page 10 Parts Model 948338, Series A TI1915B 306992...
Page 11 Parts Model 948338, Series A Part No. Description Qty. Part No. Description Qty. 102022 PIPE BUSHING 165964 . NUT, stem packing 113093 PIPE CONNECTOR 178745 . STEM, valve 166242 FITTING, elbow, street, 90 deg 172094 . SEAT, ball 214037 BALL VALVE; see manual 306861; 178743 .
Page 12 Technical Data Category Data Material Inlet Model 207861: 1/4 npt (m) Model 948338: 1/2 npt(m) Solvent Inlet 1/4 npt(m) Material Outlet 1/2 npt(m) Wetted Parts Stainless Steel, Carbon Steel, PTFE , Nylon Weight 6 lb (2.7 kg) PTFE 306992...
Page 13 Dimensions Model 207861 (In Closed Position) 1/4 npt Material Inlet 1/4 npt Solvent Inlet 1/4 in. (6 mm) Diameter Mounting Holes 6 in. (152 mm) 7–1/2 in. (191 mm) 7–1/2 in. (191 mm) 1/2 npt Outlet 8613A Model 948338 (In Open Position) 1/2 npt Outlet 1/2 npt Material Inlet 1/4 npt Solvent Inlet...
Page 14 Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
