Summary of Contents for ADX FIREPOWER WIRELESS 23

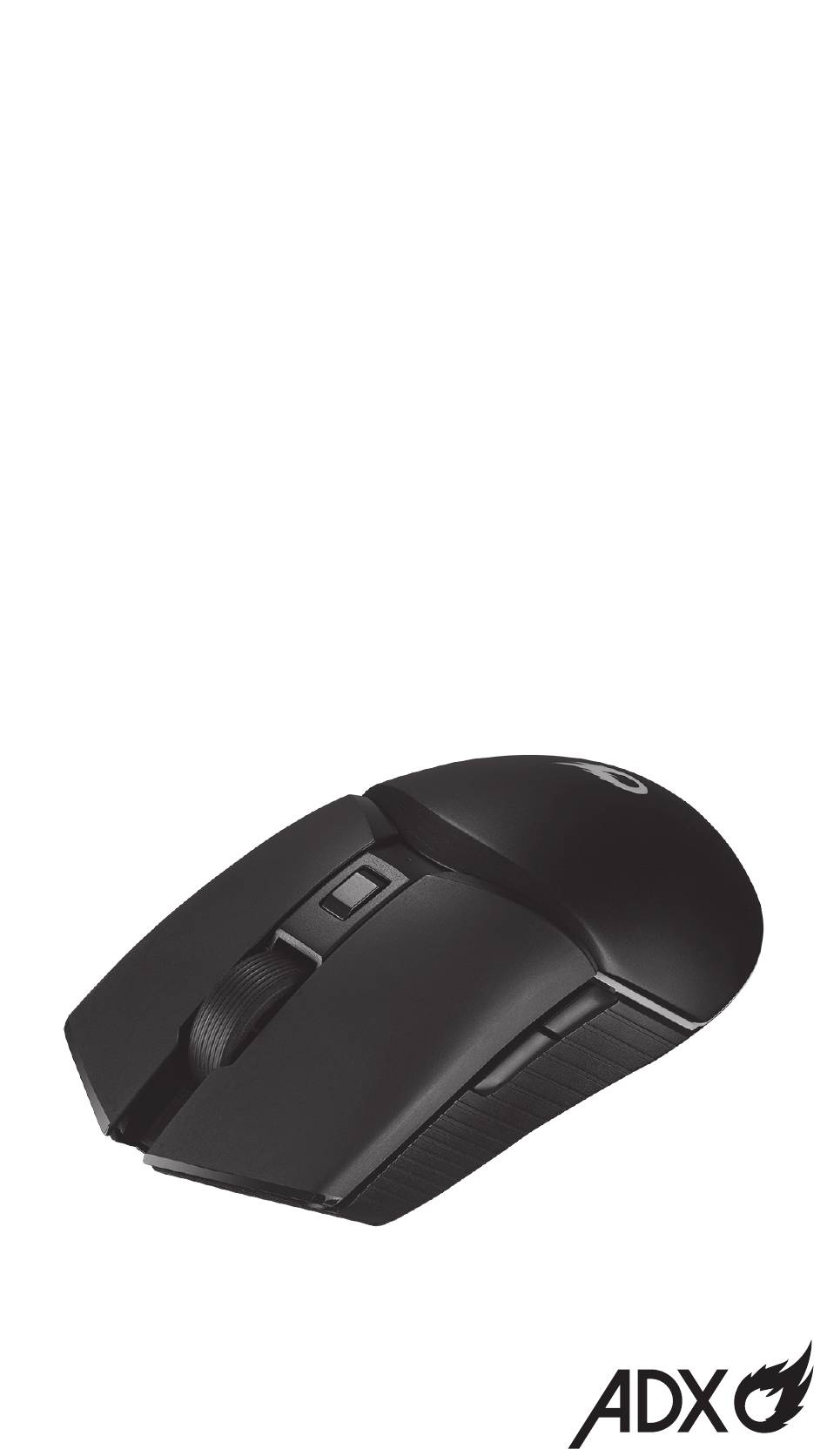

- Page 1 FIREPOWER WIRELESS 23 Rechargeable Wired & Wireless Gaming Mouse INSTRUCTION MANUAL ADXWM1123...
-
Page 2: Table Of Contents
Contents Safety Warnings ................. 3 Unpacking ..................6 Product Overview ................7 Top View ......................7 Front View ......................7 Bottom View .......................8 Charging the Mouse ................9 Wired Connection ....................9 Wireless Connection ................ 10 DPI Settings ..................10 System Requirements ..............11 Software Installation ............... -
Page 3: Safety Warnings
Safety Warnings Read all the instructions carefully before using the unit and keep them for future reference. Retain the manual. If you pass the unit onto a third party, make sure to include this manual. Damage • Please inspect the unit for damage after unpacking. •... - Page 4 Battery-Powered Devices: Rechargeable Lithium Ion batteries are potentially hazardous and can present a serious FIRE HAZARD if damaged, defective or improperly used. • Always charge in a well ventilated area. Do not charge under pillows, blankets or on flammable surfaces. •...
- Page 5 • Unplug the charger from the electrical plug and the product when not in use. • Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. • If left unused, a fully charged battery will lose its charge over time. •...
-
Page 6: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 7: Product Overview
Product Overview Top View 1. Right Button 5. DPI Indicator 2. Scroll Wheel 6. Forward/Backward Buttons 3. Left Button 4. DPI Button Press repeatedly to select different DPI. Front View 1. USB Type C Port Connect with the provided USB Type C Cable for wired connection and charging. -
Page 8: Bottom View
Bottom View 1. ON/OFF Switch Switch on/off the unit. 2. Light Mode Button Press repeatedly to switch between different light modes (Pulse / DPI Static / DPI Breathing / Cycle Breathing / Off) 3. Optical Sensor The light colour of DPI Static and DPI Breathing depends on the resolution set for the mouse. -
Page 9: Charging The Mouse
Charging the Mouse Fully charge the unit before first use. 1. Plug the Type C connector of the provided USB charging cable into the charging port of the mouse. 2. Insert the other end of the USB charging cable into your laptop or computer (not included). -
Page 10: Wireless Connection
Wireless Connection 1. Fully charge the unit before using in wireless mode. 2. Switch on the unit. 3. Plug the dongle directly into your computer’s USB port. The mouse will automatically connect to the computer. Switch off the unit to conserve energy if it is not used for a long period of time. -
Page 11: System Requirements
3. Run the software installer (ADX HUB 2 Setup.exe). 4. Follow the installation instruction to complete the installation. 5. Choose ADX HUB 2.exe from the desktop to start the software. The software is not available for MAC OS. Software operation can only be used in Wired Mode. -
Page 12: User Interface - Customise
User Interface - Customise 1. Select Customise to enter the setting page. 2. Set your preference of the mouse buttons in the Key Function menu. 3. You may save your own preference in the Profile menu. 4. Select “Apply“ to implement your settings, or “Reset“... -
Page 13: User Interface - Performance
User Interface - Performance 1. Select Performance to enter the setting page. Select the DPI from • Level 1 to Level 6, and then set it from 100 to 24000. Select the Response • Rate between 125 Hz, 250 Hz, 500 Hz and 1000 Hz. 2. -
Page 14: User Interface - Light Effect
User Interface - Light Effect If one more ADX gaming device is connected, you may synchronize their light effect. 1. Select Light Effect, and the devices you want to apply the light effect. 2. Select your preferred Lighting Settings (Mode, Brightness and Speed). -
Page 15: Hints And Tips
Hints and Tips • If the mouse is moving erratically, change the working surface which the mouse is operating on. • If the software is not working properly, uninstall it and then reboot the computer. Re-install the software. • Never use the mouse on a glass or mirrored surface as these surfaces will cause the mouse to fail temporarily. -
Page 16: Specifications
Specifications Model ADXWM1123 Wireless Frequency 2403 ~ 2482MHz Operating Range <10 m (open space) Battery Type Rechargeable Lithium ion Polymer Battery Resolution 800 / 1600 / 3200 / 6400 / 12000 / 24000 dpi Max. Radio Frequency Mouse: 1 dBm Power Transmitted Dongle: 2 dBm Operating Temperature... - Page 17 This unit is designed for indoor use only. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
- Page 18 Declaration of Conformity (RED) Hereby, Currys Group Limited declares that the radio equipment type [ADXWM1123] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.currys.co.uk/ Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
