Summary of Contents for ADX Firepower WMK07

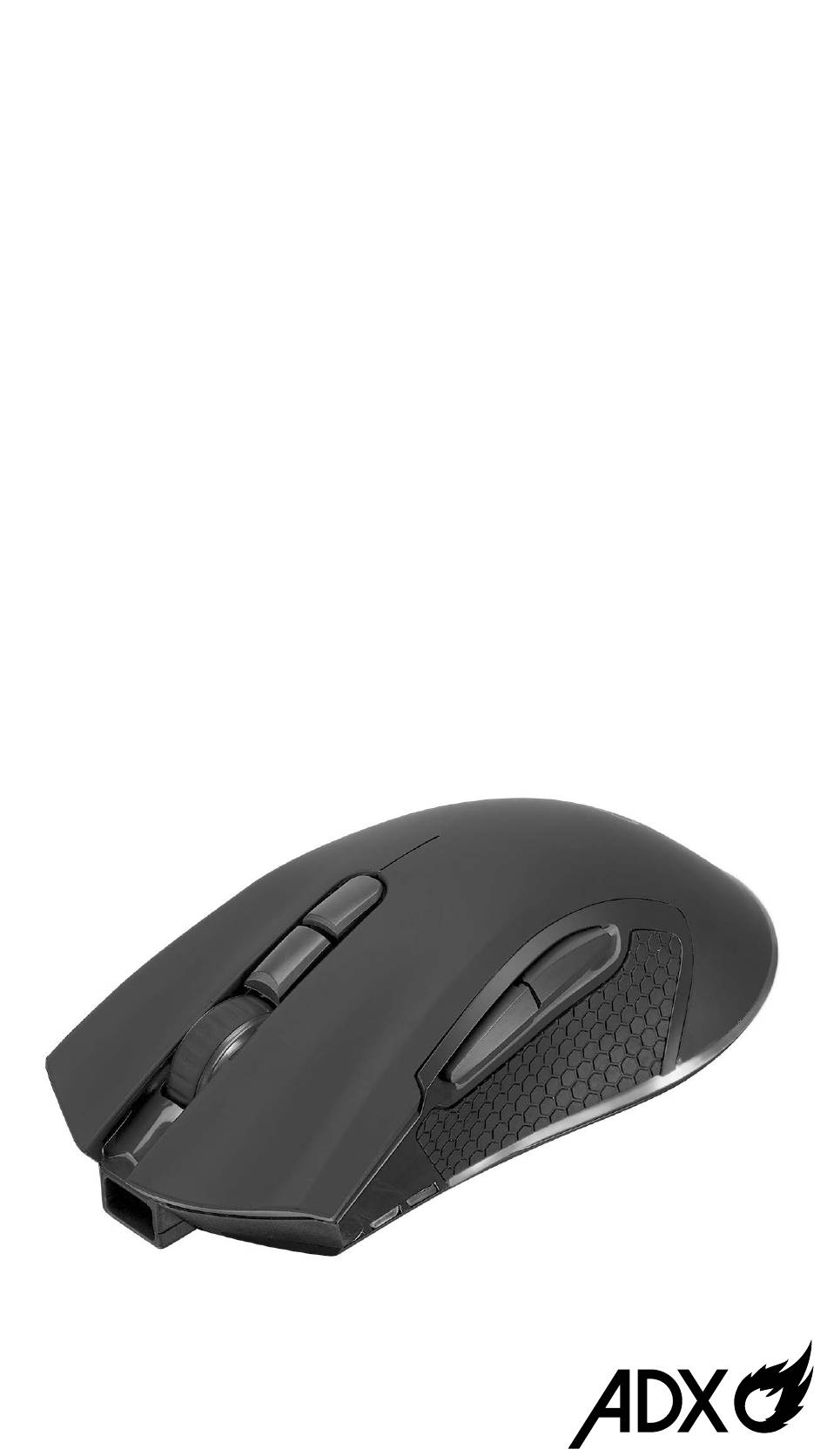

- Page 1 FIREPOWER WMK07 WIRELESS RGB GAMING MOUSE INSTRUCTION MANUAL ADXWM0720...
-
Page 2: Table Of Contents
Contents Safety Warnings ................. 3 Unpacking ..................4 Product Overview ................5 System Requirements ............... 5 Software Installation ................. 5 User Interface ..................6 DPI Setting ..................7 Lighting Effect ..................8 Performance..................9 Polling Rate ..................10 Macro Editor ..................11 Hints and Tips................... -
Page 3: Safety Warnings
Safety Warnings Never point the optical sensor towards the face, particularly the eyes, to avoid possible injury. • While the mouse is functioning, the optical light is visible to the naked eye. Avoid looking directly into the emitter hole while the mouse is active. -
Page 4: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Product Overview
Product Overview Top View 1. Right Button 4. DPI Button Select different dpi. 2. Scroll Wheel 5. Forward/Backward 3. Left Button Buttons Bottom View 1. Wireless ON/OFF 4. DPI Indicators 2. Brightness Switch 5. Dongle Compartment 3. Polling Rate Switch... -
Page 6: System Requirements
System Requirements Operating Systems: Microsoft® Windows® 8 / 10 Hardware: 1 available USB port Wireless Connect 1. Ensure the Wireless Mode switch is in ON position. The wireless function will enable. 2. Plug the dongle directly into your computer’s USB port. The mouse will automatically connect to the computer. -
Page 7: Software Installation
2. Download the latest gaming software from https://downloads.adxgaming.com 3. Run the software installer. 4. Follow the installation instruction to complete the installation. 5. Choose ADX ADXWM0720.exe from the desktop to start the software. The software is not available for MAC OS. -
Page 8: User Interface
User Interface Choose ADX ADXWM0720.exe from the desktop to start the software. Lighting Parameter Macro Left Click Profile 1 Profile 2 Right Click Profile 3 Middle Click PDI + PDI – Forward Backward Polling Rate Electronic Sports Lighting Brightness Steady... - Page 9 Lighting Effect Select Lighting Effect from the user interface. Lighting Parameter Macro Left Click Profile 1 Profile 2 Right Click Profile 3 Middle Click PDI + PDI – Forward Backward Polling Rate Electronic Sports Lighting Brightness Steady Dark Bright Color Restore Apply 1.
-
Page 10: Dpi Setting
DPI Setting Select PDI Setting from the user interface. Lighting Parameter Macro Left Click Profile 1 Profile 2 Right Click Profile 3 Middle Click PDI + PDI – Forward Backward Polling Rate Electronic Sports DPI Setting DPI Stages 1600 3200 6400 12000 16000... -
Page 11: Performance
Performance Select Performance from the user interface. Lighting Parameter Macro Left Click Profile 1 Profile 2 Right Click Profile 3 Middle Click PDI + PDI – Forward Backward Polling Rate Electronic Sports Parameter Pointer Speed Double-click Slow Fast Pointer Acceleration Scroll Wheel Scroll for one page Restore... -
Page 12: Macro Editor
Macro Editor Select MACRO from the user interface. Lighting Parameter Macro Profile 1 Macro list Key list Profile 2 Record delay Profile 3 Fire mode Loop mode Number of loop 1 ~ 255 Insert event Delete Modify Delete Start record Restore Apply 1. - Page 13 Specifications Mouse Model ADXWM0720 Rated Input DC 5V 500mA Wireless Frequency 2.4GHz Operating Range < 8m (open space) Frequency Band(s) 2400 – 2482 MHz Max. Radio Frequency Mouse: -1 dBm Power Transmitted Dongle: 2 dBm Battery Life Up to 19 hrs Charging Time 4.5 hrs Operation Temp.
-
Page 14: Hints And Tips
Hints and Tips • Restart the computer. • If the software is not working properly, uninstall it and then reboot the computer. Re-install the software. • If the mouse is moving erratically, change the working surface which the mouse is operating on. Wireless Mode •... - Page 15 Notes for battery disposal The batteries used with this product chemicals that are contain harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste. For more information, please contact the local authority or your retailer where you purchased the product.
- Page 16 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-ADXWM0720-201009V1...
