Summary of Contents for ADX FIREPOWER M16
- Page 1 FIREPOWER GAMING WIRELESS MOUSE INSTRUCTION MANUAL ADXWM1625...
-
Page 2: Table Of Contents
Contents Safety Warnings ....................3 Unpacking ....................... 7 Product Overview ................... 8 Top View ..........................8 Bottom View ........................8 Charging the Mouse ..................9 Wireless Connection ..................10 Rainbow Light Indicator Settings..............11 DPI Settings ....................11 System Requirements .................. 12 Hints and Tips.................... -
Page 3: Safety Warnings
Safety Warnings • Read all the instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. Damage • Please inspect the unit for damage after unpacking. •... - Page 4 Battery-Powered Devices: Rechargeable Lithium Ion batteries are potentially hazardous and can present a serious FIRE HAZARD if damaged, defective or improperly used. • Always charge in a well ventilated area. Do not charge under pillows, blankets or on flammable surfaces. •...
- Page 5 • Unplug the charger from the electrical plug and the product when not in use. • Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. • If left unused, a fully charged battery will lose its charge over time. •...
- Page 6 This unit is designed for indoor use only. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
-
Page 7: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 8: Product Overview

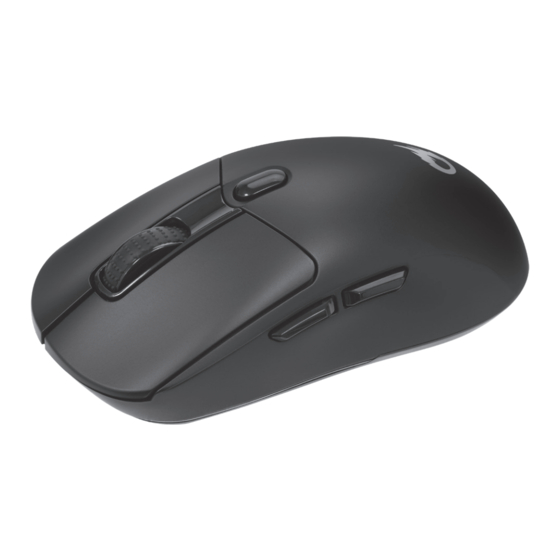

Product Overview Top View Right Button Backward Button Scroll Wheel Red LED Light Left Button DPI Button Press to adjust the DPI resolution. Forward Button Rainbow Light Indicator Bottom View Rainbow Light On/Off Button Optical Sensor Power On/Off Switch Switch on/off the unit. Dongle Compartment Cover... -
Page 9: Charging The Mouse
Charging the Mouse Fully charge the unit before first use. 1. Plug the Type C connector of the USB charging cable (included) into the charging port of the mouse. 2. Insert the other end of the USB charging cable into your laptop or computer (not included). -
Page 10: Wireless Connection
Wireless Connection 1. Open the Dongle Compartment Cover and take the Dongle out from the unit. 2. Plug the Dongle directly into your computer’s USB A port. 3. Slide the On/Off toggle to the ON position to switch on the unit. Switch off the unit to conserve energy if it is not used for a long period of time. -
Page 11: Rainbow Light Indicator Settings
Rainbow Light Indicator Settings Press the Rainbow Light On/Off Button repeatedly to switch on/off the Rainbow Light Indicator. On/Off Button of Rainbow Light Indicator • The Rainbow Light Indicator will switch off automatically after the unit is idle for about 1 minute. •... -
Page 12: System Requirements
System Requirements Operating Systems: Microsoft® Windows® 10 / 11 Hardware: 1 available USB A port Hints and Tips • Make sure the USB plug is fully plugged into a USB port and the computer is on or try to use a different USB port. •... -
Page 13: Battery
Battery Model 602040 Battery Type DC 3.7V 450mA Battery Rating 3.7V 450mAh 1.665Wh Number of Battery Designation Code 1ICP6/20/41 Manufacturer Donguan Nuolei Electron Industry Co., Ltd Dimension 20 × 6 × 40 mm Net Weight 10 g Features and specifications are subject to change without prior notice. - Page 14 collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
