Hunter 99147 Important Instructions

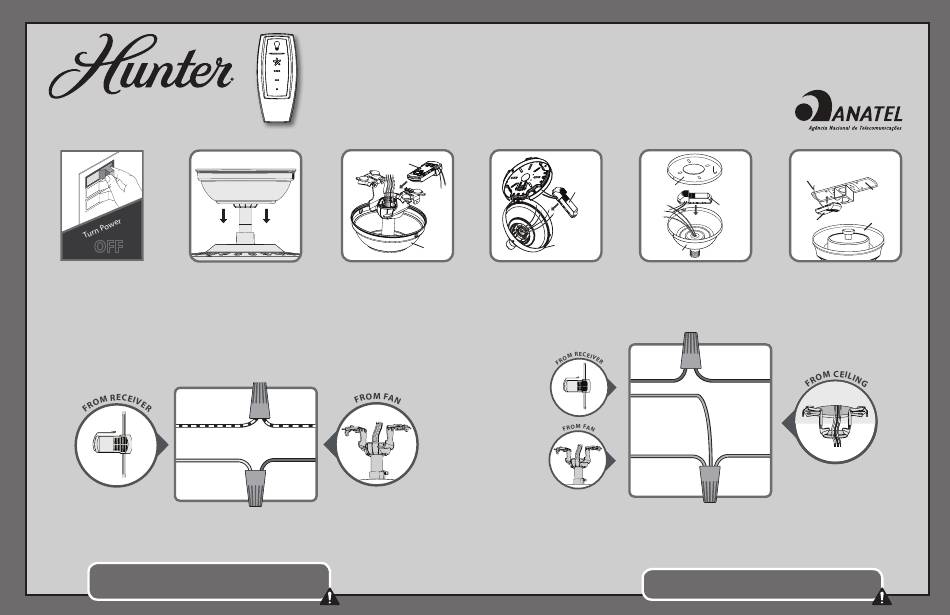

Installation
OFF
Before installing the
Remove the canopy. If uncertain

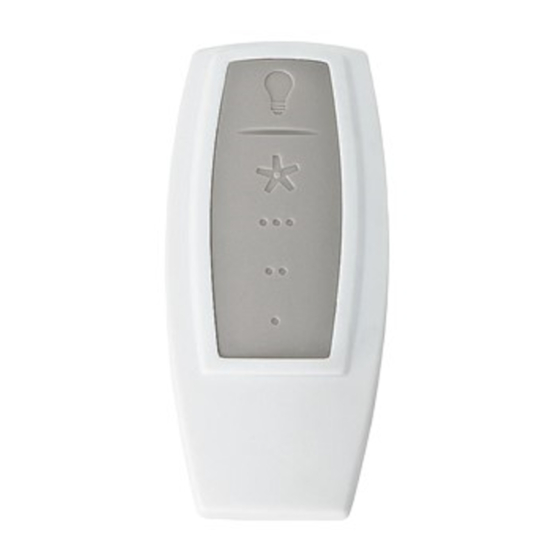

Universal Remote Control
how to remove it, reference the fan's
Receiver, use the pull chains
owner's manual. With wiring exposed,
to set the fan speed to HIGH
it may be helpful to note existing wire
and the light to ON. Be
connections or take a digital photo for
sure power is OFF before reference. Remove the wire connectors
proceeding with installation. that connect the wires from the outlet
box to the fan, leaving the grounding
wires connected.
Wiring
black/white stripe
yellow
CONNECT WIRES FROM RECEIVER TO FAN - Using the wire connectors, connect the black and white wire from the receiver
to the black and white wire from the fan. Connect the yellow wire from the receiver to the brown wire from the fan.
If you're uncertain about wire colors or connections, please contact a qualified electrician.
To avoid possible electrical shock, before installing or servicing your fan, disconnect
the power by turning off the circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off position, securely fasten a
prominent warning device, such as a tag, to the service panel.
Ceiling Fan
Remote Control
Models 99147, 99310
Receiver
Canopy
Choose the hanging system that most closely resembles the one used by your fan and install the receiver as shown and wire as directed.
Note: Some fans may have considerable excess lead wire. For easier canopy installation, cut the excess wire, leaving a minimum of 8" remaining. Re-strip the fan lead wires 1/2" . Place remaining excess
wire into the ceiling electrical box. The bracket and fan must remain properly grounded.
black/white stripe
brown
MD005-01 • 08/27/15 • © 2015 Hunter Fan Company
Important Instructions:
Keep Instructions for future use
Receiver
OR OR
Canopy
brown
blue
blue
CONNECT WIRES FROM RECEIVER AND FAN TO WIRES FROM OUTLET BOX - Using the wire connectors,
connect the brown (live in) wire from the ceiling to the brown wire from the receiver. Connect the blue (neutral)
wire from the ceiling to both the blue wire from the receiver and the blue wire from the fan.
If you're uncertain about wire colors or connections, please contact a qualified electrician.
AFTER ALL WIRES ARE CONNECTED and secured with wire connectors, re-install the canopy.
www.HunterFan.com.br
For low profile fans, secure the receiver
to the ceiling bracket with a cable tie.
Cable Tie
Ceiling
Plate
OR
Receiver
Receiver
Canopy
brown (live in)
blue (neutral)
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of the
outlet box and the ungrounded wires on the other side of the outlet box.
Ceiling
Bracket
Fan Body
