Bien Air CAP 15:1 Prophy Instruction Manual

CAP 15:1 Prophy
PMP 10:1 Prophy
ENG Instruction
REF 2100050-ENG/05.08
English
Fully Swiss-manufactured devices.
Type
Dental contra-angle and handpiece, with internal
spray.
Description CAP 15:1 Prophy
Contra-angle without light, for interchangeable
cups.
Description PMP 10:1 Prophy
Handpiece without light, for interchangeable
heads.
Planned use
Product intended for professional use only. Use in
dentistry for prophylaxis work.
Technical data and assembly
Classification
Class IIa in accordance with European Directive
93/42/CE in accordance with medical directives.
Type of coupling
The most commonly used coupling in the world as
per ISO Standard 3964.
Drive
The instrument can be coupled to an air-driven or
electric micromotor.
Dimensions
CAP 15:1 Ø 19.6 mm (0.77 in)
total length 88.5 mm (3.5 in)
PMP 10:1 Ø 19.6 mm (0.77 in)
total length without head 68 mm (2.68 in)
Possible input value
Up to 40 000 rpm
Recommended working speed
400 to 600 rpm
Transmission ratio
CAP 15:1 15:1 reduction
PMP 10:1 10:1 reduction
Cup, brush
With screw type M1.8 or clip type M1.8
Head for PMP 10:1
Doriot type head, disposable straight and angled

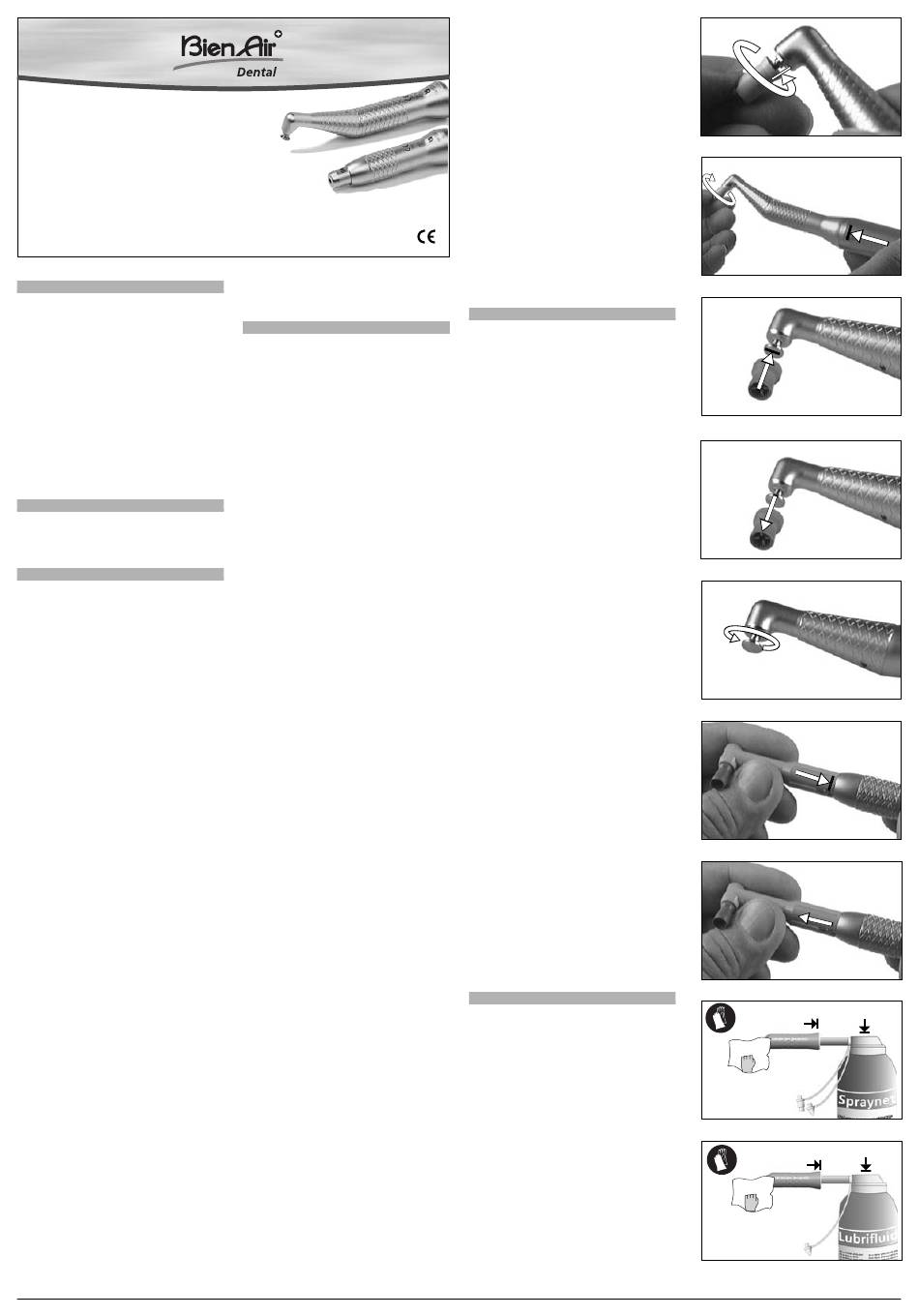

Fitting the screw cup fig. 1
Disassembling the screw cup
Leave the CAP on the motor fig. 2
Fitting the clip cup fig. 3 and 5
Disassembling the clip cup
Leave the CAP on the motor fig. 4-5
Fitting the head
Only for PMP 10:1 fig. 6
Disassembling the head
Only for PMP 10:1 fig. 7
REF 2100050-ENG/05.08
Important
Never mount an instrument on a rotating motor.
Maintenance
Separately clean, lubricate and sterilise the
device before the treatment of each patient.
Only use maintenance products and components
from Bien-Air. The use of other products and com-
ponents can void the guarantee.
The instrument is delivered "non sterile". Before
first use, lubricate and sterilize the instrument.
Please comply with these instructions.
Check that the steriliser and the water that is used
are clean. After each sterilisation cycle, remove the
device from the sterilizing apparatus immediately,
in order to reduce the risk of corrosion.
Overhaul
Never disassemble the device. For all modifications
and repairs, we recommend that you contact your
regular supplier or Bien-Air direct. Bien-Air asks
the user to have its dynamic instruments checked
or inspected at least once a year thereafter.
Cleaning
Use Spraynet cleaner from Bien-Air fig. 8. Spray
the inside and outside of the equipment to remove
the residues and carefully clean the surfaces.
Disinfection
Disinfect using a clean cloth soaked in a suitable
product. Products containing acetone, chlorine
and bleach are not recommended as disinfectants.
Never immerse in disinfectant solutions.
Not suitable for ultrasonic bath.
Before sterilisation
Remove residue, carefully clean the device. Lubri-
cate instrument.
Lubrication
Only use Lubrifluid spray.
• Remove tool from instrument gripper before
lubrication
• Place the instrument in a cloth so as to catch
the debris and foreign matter expelled by the
atomizer jet.
• Remove the protective cap and insert the nozzle
into the back of the instrument sleeve.
• Spray for about 1 second fig. 9.
Sterilisation
Process: Steam autoclave up to 134°C (273°F).
The required time for sterilisation of our products
must comply with the prevailing local regulations
for this type of instrument.
Important
After lubrication, always place the instrument with
the head downwards in order to allow the lubricant
to spread well through the whole mechanism and
to prevent any infiltration of the oil into the micro-
motor when the instrument is attached to it.
Important
After cleaning and disinfecting/ sterilizing
the instrument and before using it, operate
at moderate speed, with a bur in the chuck,
for 10 to 15 seconds to circulate lubricant
and remove excess.
Environment
Temperature between -40°C (-40°F) and 70°C
(158°F), relative humidity between 10% and
100%, atmospheric pressure 50 kPa to 106 kPa
(7.3 to 15.3 psi).
Information
The technical specifications, illustrations and di-
mensions contained in these instructions are given
only as a guide. They may not be the subject of any
claim. The manufacturer reserves the right to
make technical improvements to its equipment,
without amending these instructions. The French
original of this text conforms to the legal
0120
standards. For all additional information, please
contact Bien-Air at the address indicated on the
reverse.
General information
The device must be used by a competent person in
accordance with the current legal provisions con-
cerning industrial safety, health and accident pre-
vention regulations, and these working instruc-
tions. In accordance with these requirements, the
operators:
• must only use operating devices that are in per-
fect working order; in the event of irregular fun-
ctioning, excessive vibration, abnormal heating
or other signs indicating malfunction of the
device, the work must be stopped immediately;
in this case, contact a repair centre that is
approved by Bien-Air;
• must ensure that the device is used only for the
purpose for which it is intended, must protect
themselves, their patients and third parties from
any danger, and must avoid contamination
through the use of the product.
The device is intended for medical treatment only;
any use other than that for which this product is
intended is unauthorised and may be dangerous.
The medical device meets all the current European
legal requirements.
Excess material from products used for mainten-
ance (lubricants, cleaning products and disinfec-
tants) originating from CA or PM may penetrate
into the electric brush motor and interfere with its
functioning. It is essential to follow the mainten-
ance instructions accompanying each product.
Never lubricate the electric brush motor.
Recommendations
Adhere to the Instructions for Use, in accordance
with the instructions of the tool manufacturer.
Never use a tool with an incorrect rod, as there is a
risk of this becoming detached during the treat-
ment and causing injury to you yourself, to your
patient and to third parties.
Rest the device on a suitable support to avoid risks
of infection for yourself, the patient or third parties.
Only use maintenance products and components
from Bien-Air. The use of other products and com-
ponents can void the guarantee.
Guarantee
Terms of guarantee
Bien-Air grants the operator a guarantee covering
all functional defects, material or production
faults.
The device is covered by this guarantee for
12 months from the date of invoicing.
In the event of justified claims, Bien-Air or its aut-
horised representative will fulfil the company's ob-
ligations under this guarantee by repairing or re-
placing the product free of charge. Any other
claims, of whatever nature, in particular in the
form of a claim for damages and interest, are
excluded.
Bien-Air shall not be held responsible for damage
or injury and the consequences thereof, resulting
from:
• excessive wear and tear
fig. 1
fig. 2
fig. 3
fig. 4
fig. 5
fig. 6
fig. 7
1 sec.
fig. 8
1 sec.
fig. 9
