Bien Air MC2 Series Instruction

Hoses
MC2 & Isolite
Do not sterilise
Instruction
REF 2100017-ENG/09.11
English
Medical devices entirely made in Switzerland
by Bien-Air Dental SA.

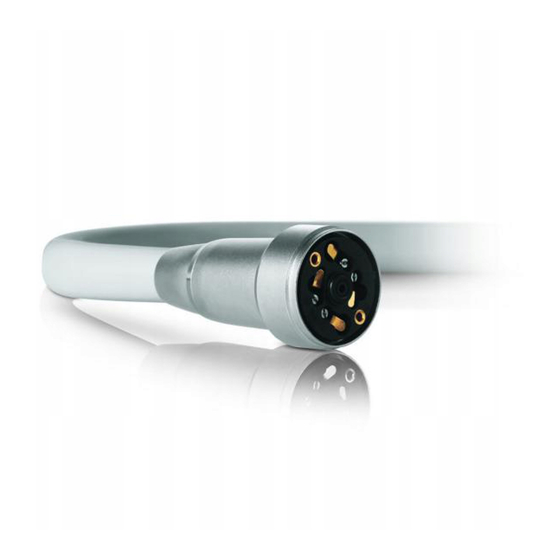

Type

Electric micromotor hose with revolving connector
for use with the MC2, the Isolite 100 and 300, with
or without light. Quality hoses straight or coiled, in
black, grey or white. Standard length 1.7 m or spe-
cial lengths up to 3 m.

Intended use

Product intended for professional use only. Use in
dentistry for prophylaxis, general dentistry and en-
dodontic work.

Technical data and assembly

Classification

Class IIa, «active medical devices», as per section
III «Classification», Rule 2 of Annex IX to Euro-
pean Directive 93/42/EEC, namely: «Non-invasive
devices intended for channelling liquids or gases for
the purpose of administration into the body, which
may be connected to an active medical device in
Class IIa».

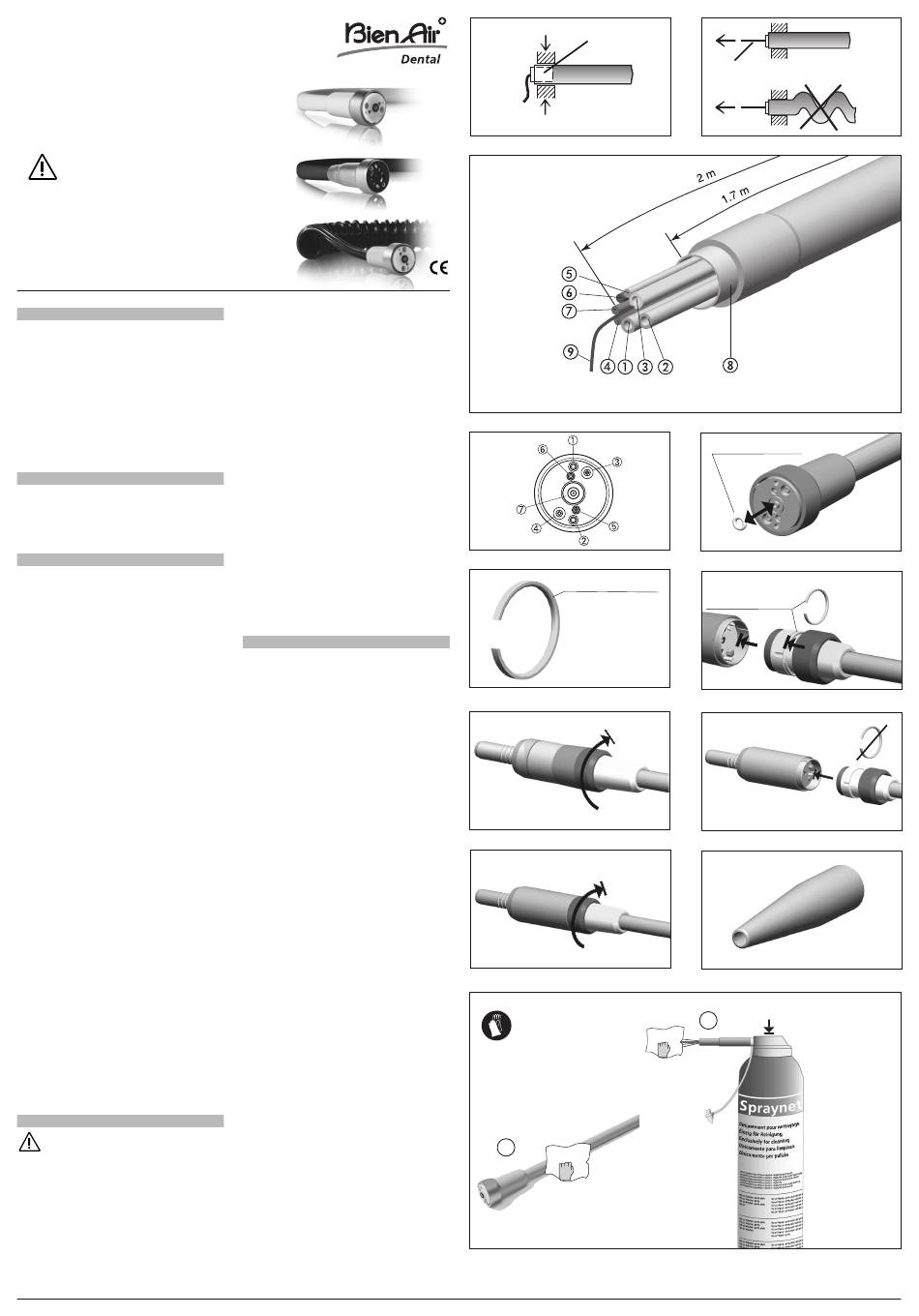

Fitting

Keep the initial alignment of the leads and conduits
unchanged. Place the back-up ring in the lock-
“
ing area fig. 1. Tie the security string fig. 2.
”
Description fig. 3 - 4
Ø 1.5/2.5 mm air spray (small white)
Œ
with "A" or (blue)
Ø 1.5/2.5 mm water spray (small white)

with "W" or (green)
Ø 1.5/2.5 mm motor cooling (small white)
Ž
or (transparent) Ø 2.8/4.1 mm
(+) red: motor

black: motor

(+) brown: bulb
‘
(0V) blue: bulb
’
back-up ring
“
security string (if existing)
”

Accessories

O-Ring joint REF 1300414-010. Changing the O-
ring joint fig. 5. The split ring REF 212.65.01 fig. 6
is required only for connection to an MC2 IR or
GTAV motor fig. 7-8.
Connection (without the split ring) to an Isolite
electric motor fig. 9-10.
The conical piece fig. 11 can be useful for connect-
ing the cooling tube to the Unit tube fig. 12.
’

Maintenance

Non-sterilisable

Cleaning

Carefully clean all surfaces with a cloth impreg-
nated with Spraynet, fig. 13.

Disinfection

Disinfect using a clean cloth soaked in a suitable
product. Products containing acetone, chlorine and
bleaches are not recommended as disinfectants.
REF 2100017-ENG/09.11
To keep the surface of the hose in good condition, it
is advisable to periodically wipe the complete length
of it with a cloth dusted with talcum powder.
Never immerse in disinfectant solutions.
Not suitable for ultrasonic bath.

Transport

Temperature between -40°C (-40°F) and 70°C
(158°F), relative humidity between 10% and 100%,
atmospheric pressure 50 kPa to 106 kPa (7.3 to
15.3 psi).

Information

The technical specifications, illustrations and di-
mensions contained in these instructions are given
only as a guide. They may not be the subject of any
claim. The manufacturer reserves the right to make
technical improvements to its equipment, without
amending these instructions. For all additional in-
formation, please contact Bien-Air Dental SA at the
address indicated on the back cover.

Other precautions for use

The device must be used by a qualified person in
accordance with the current legal provisions con-
cerning industrial safety, health and accident pre-
vention measures, and these working instructions.
In accordance with these requirements, the opera-
tors:
• must only use operating devices that are in per-
fect working order; in the event of irregular
functioning, excessive vibration, abnormal
heating or other signs indicating malfunction
of the device, the work must be stopped imme-
diately; in this case, contact a repair centre that
is approved by Bien-Air Dental;
• must ensure that the device is used only for the
purpose for which it is intended, must protect
themselves, their patients and third parties from
any danger, and must avoid contamination
through the use of the product.
The device is intended for medical treatment only;
any use other than that for which this product is in-
tended is unauthorised and may be dangerous. The
medical device meets all the current legal require-
ments.
The device is not authorised for use in an explosive
atmosphere (anaesthetic gas).
Recommendations
It is essential to use dry, purified compressed air in
order to ensure the long working life of the device.
Maintain the quality of the air and the water by reg-
ular maintenance of the compressor and the filtra-
tion systems. The use of unfiltered hard water will
lead to early blockage of the tubes, connectors and
spray cones.
Rest the device on a suitable support to avoid risks
of infection for yourself, the patient or third parties.
Only use maintenance products and components
from Bien-Air Dental. The use of other products and
components can void the guarantee.
“
