S001
SF 811
STS 890
ENG
Instruction
REF 2100024-ENG/06.08
English
Fully Swiss-manufactured devices.
Typ

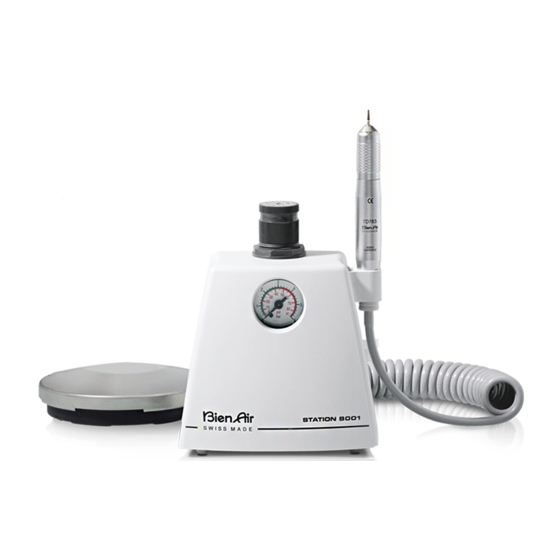

S001
pneumatic module, tabletop model.
SF 811
pneumatic module, model for fixed installation, to
be mounted upright.
STS 890
pneumatic module with water reservoir.
These modules are equipped with a pedal, a pres-
sure gauge with pressure relief device and a turbi-
ne support.

Planned use

Product intended for professional use only.These
modules are designed for laboratories and for
prosthetic and ceramic work.

Technical data and assembly

S001 assembly
SF811 mounting
STS 890
Classification
Conforms to machinery directive 89/392/EC.
Dimensions
S001:
110 x 135 x 162 mm
SF 811:
86 x 75 x 165 mm
STS 890:
200 x 190 x 100 mm
Weight
S001:
SF 811:
STS 890:

Air pressure at inlet

S001 & SF 811 & STS 890: min. 500 kPa and max.
800 kPa

Air consumption output

S001 & SF 811 & STS 890: 32 normliter/min

Air pressure output

S001 & SF 811: 250 kPa - 300 kPa
The unit is delivered with a pre-adjusted of
300 kPa.
Do not use the turbine at above the required
air pressure (see instuction REF 2100038).
STS 890

1. Spray regulator

The desired water quantity is adjusted by the green
control knob and the air supply by the blue control
knob.

2. Refilling the water reservoir

Unscrew the cap slowly to allow pressure to be re-
leased. Refill water tank with distilled water
only, by using the enclosed measure. Replace and
close the cap. The pressure in the reservoir is then
automatically re-set.
REF 2100024-ENG/06.08

3. Foot pedal operation

The drive air is activated by pressing the foot pedal
anywhere on its surface. To activate the spray, press
the foot pedal on the area indicated. The angle ot
the spray is approx 100°.

4.Manometer-pressure regulator with filter

The reservoir of this filter must be cleaned regular-
ly by opening the plug at the bottom of the reser-
voir. Drain by pressing the bottom plug.

Maintenance

Only use maintenance products and components
from Bien-Air. The use of other products and com-
ponents can void the guarantee.

Overhaul

Never disassemble the device. For all modifications
and repairs, we recommend that you contact your
regular supplier or Bien-Air direct. Bien-Air asks
the user to have its dynamic instruments checked
or inspected at least once a year thereafter.
Never immerse in disinfectant solutions.
Not suitable for ultrasonic bath.

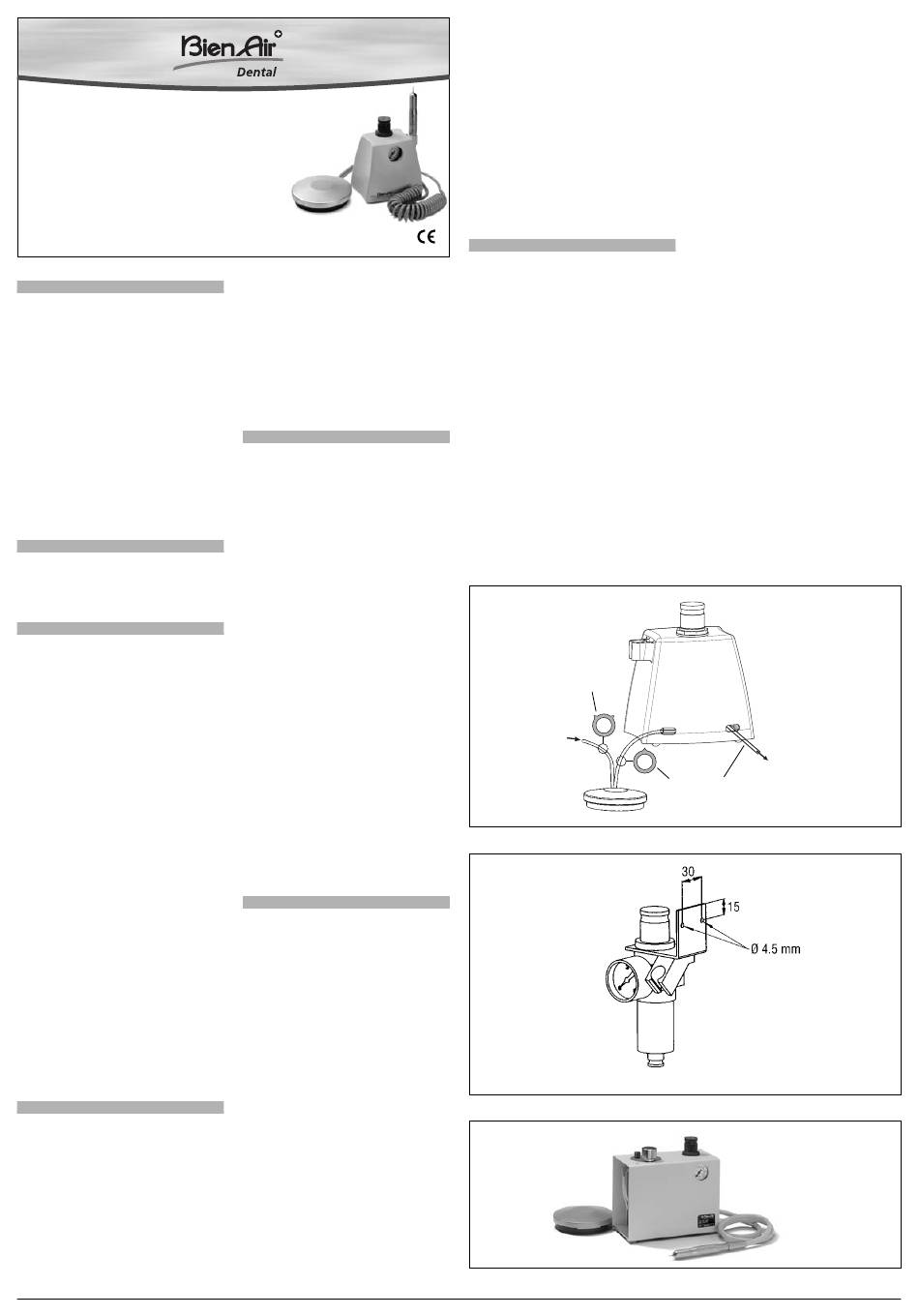

fig. 1
Environment
fig. 2
Temperature between -40°C (-40°F) and 70°C
fig. 3
(158°F), relative humidity between 10% and
100%, atmospheric pressure 50 kPa to 106 kPa
(7.3 to 15.3 psi).
Information
The technical specifications, illustrations and di-
mensions contained in these instructions are given
only as a guide. They may not be the subject of any
claim. The manufacturer reserves the right to
make technical improvements to its equipment,
without amending these instructions. The French
1,250 g
original of this text conforms to the legal stan-
300 g
dards. For all additional information, please
4,400 g
contact Bien-Air at the address indicated on the
back cover.

General information

The device must be used by a competent person in
accordance with the current legal provisions con-
cerning industrial safety, health and accident pre-
vention regulations, and these working instruc-
tions. In accordance with these requirements, the
operators:
• must only use operating devices that are in per-
fect working order; in the event of irregular fun-
ctioning, excessive vibration, abnormal heating
or other signs indicating malfunction of the
device, the work must be stopped immediately;
in this case, contact a repair centre that is
approved by Bien-Air;
• must ensure that the device is used only for the
purpose for which it is intended, must protect
themselves, their patients and third parties from
any danger, and must avoid contamination
through the use of the product.
The device is not intended for medical treatment;
any use other than that for which this product is
intended is not allowed and may proved to be dan-
gerous. The device meets all the current European
legal requirements (in accordance with machi-
nery directive 89/392/EC).
Recommendations
It is essential to use dry, purified compressed air in
order to ensure the long working life of the device.
Maintain the quality of the air and the water by re-
gular maintenance of the compressor and the fil-
tration systems. The use of unfiltered hard water
will lead to early blockage of the tubes, connectors
and spray cones.
After a period of prolonged use, the device must be
cleaned and serviced according to these instruc-
tions.
Rest the device on a suitable support to avoid risks
of infection for yourself, the patient or third parties.
Guarantee
0120
Terms of guarantee
Bien-Air grants the operator a guarantee covering
all functional defects, material or production
faults. The device is covered by this guarantee for
12 months from the date of invoicing.
Bien-Air also offers a 24-month guarantee for the
glass-bar light conductors.
In the event of justified claims, Bien-Air or its aut-
horised representative will fulfil the company's ob-
ligations under this guarantee by repairing or re-
placing the product free of charge. Any other
claims, of whatever nature, in particular in the
form of a claim for damages and interest, are
excluded.
S001
internal Ø 1/8"
(3,17mm)
Air in
5 - 8 bars
72 - 116 psi
fig. 1
SF 811
fig. 2
STS 890
fig. 3
Bien-Air shall not be held responsible for damage
or injury and the consequences thereof, resulting
from:
• excessive wear and tear
• improper use
• non-observance of the instructions for installa-
tion, operation and maintenance
• unusual chemical, electrical or electrolytic
influences
• poor connections, whether of the air, water or
electricity supply.
The guarantee does not cover flexible "fibre optic"
type conductors, or any parts made of synthetic
materials.
The guarantee shall become null and void if the
damage and its consequences are due to improper
manipulation of the product, or modifications to
the product carried out by persons not authorised
by Bien-Air.
Claims under the terms of the guarantee will be
considered only on presentation, together with the
product, of the invoice or the consignment note, on
which the date of purchase, the product reference
and the Serial No. should be clearly indicated.
Air out
2.5 - 3 bars
35 - 42 psi
internal Ø 1/8"
(3,17mm)
1/2
