- Page 1 MODEL # CM3216T Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 20-0 7 - 15...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...

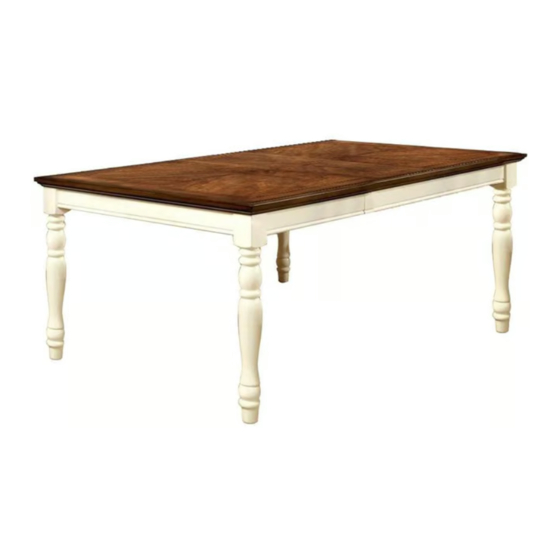

- Page 5 DINING TABLE CM3216T #1 1pc #2 4pcs Table Top Legs #D 1pc #A 8pcs #C 8pcs #B 8pcs Hex Nut (Ø5/16") Lock Washer Flat Washer Wrench Ø5/16"x13mm Ø5/16"x19mm 5 / 7...
- Page 6 ASSEMBLY INSTRUCTIONS Part #1 x1pc 2. Apply a flat washer (#B), a lock Part #2 x4pcs washer (#C), and a hex nut (#A) in that order onto the threaded Hardware #A x8pcs ends. Secure using the wrench. Hardware #B x8pcs Hardware #C x8pcs 1.
- Page 7 ASSEMBLY INSTRUCTIONS 1. Slide the outer sides of the table top (#1) out- ward, then lift the leaf from underneath. 2. Slide the outer sides of the table inward, then lock the latches located under the table top (#1). 7 / 7...
