7 INSTALLATION PRECAUTIONS

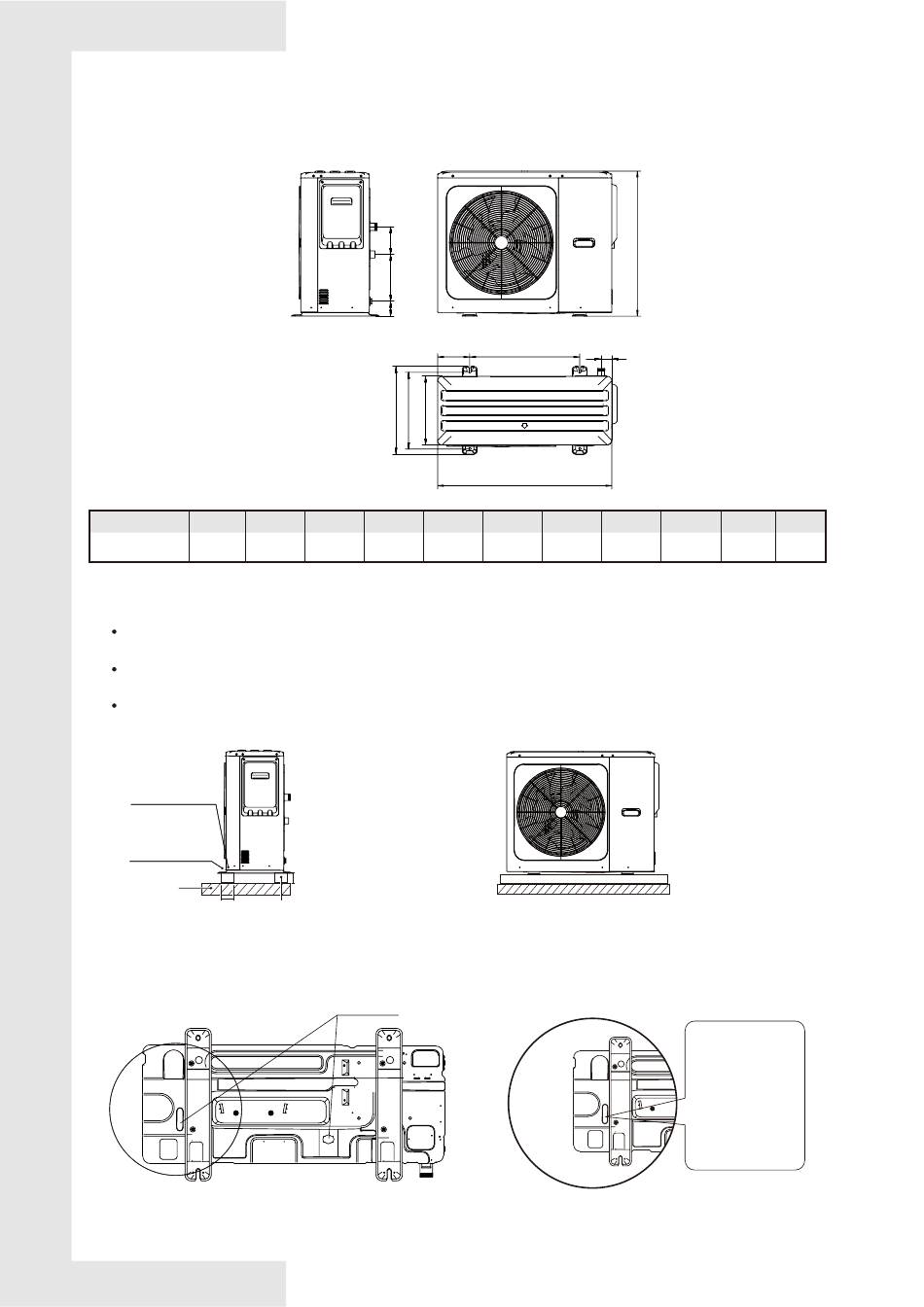

7.1 Dimensions

Model A B
5-16kW 1040 410

7.2 Installation requirements

Check the strength and level of the installation ground so that the unit may not cause any vibrations or noise during its
operation.
In accordance with the foundation drawing in the figure, fix the unit securely by means of foundation bolts. (Prepare four sets
each of Φ10 Expansion bolts, nuts and washers which are readily available in the market.)
Screw in the foundation bolts until their length is 20 mm from the foundation surface.
(unit: mm)
Φ10 Expansion
bolt
Rubber
shocking
proof mat
Solid
ground
≥80
Concrete
or roofing
basement
h≥100mm

7.3 Drain hole position

I
J
K
E
D C B
C D E
458 523 191
≥100
Drain hole
09
H
F G
A
F G H
656 64 865
(unit:mm)
I J K
165 279 89
This drain hole is
covered by rubber
plug. If the small
drain hole can not
meet the drainage
requirements, the
big drain hole can
be used at the
same time.
