introduction

The Model 687A01 Hand Held Vibration Meter Kit consists of a digital vibration meter, a general purpose
accelerometer, an accelerometer cable assembly, magnet, and headphones. The kit is designed for general
purpose, overall vibration readings on all types of machines. When unpacking the kit, be sure to note that the
following accessories are included:
 687A02 Meter
 603C01 Industrial Accelerometer
 050BQ006AC Cable Assembly
 080A131 Magnetic Mounting Base
 070A47 Headphones

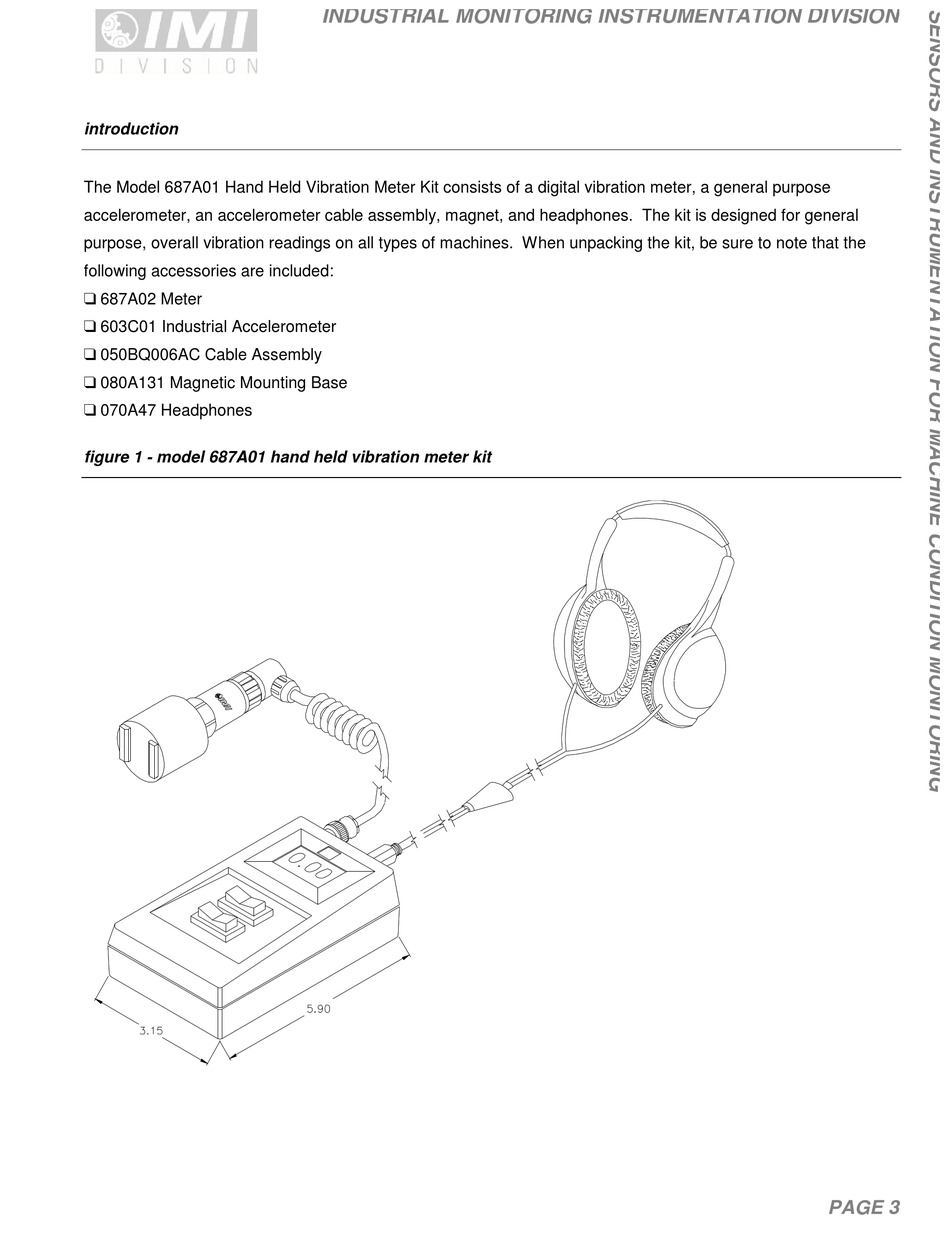

figure 1 - model 687A01 hand held vibration meter kit
PAGE 3
