PCB Piezotronics 086C01 Installation And Operating Manual

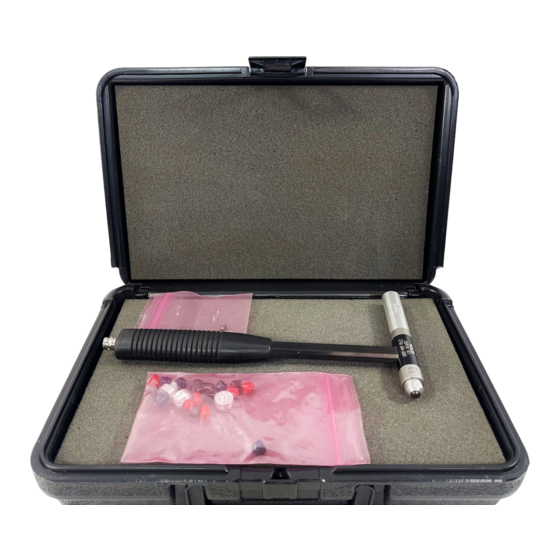

Modally tuned® impulse hammer w/force sensor and tips, 0 to 100 lbf, 50 mv/lbf (11.2 mv/n)
Hide thumbs Also See for 086C01:

Advertisement

Quick Links

Download this manual
Model 086C01
Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 100 lbf, 50 mV/lbf (11.2 mV/N)
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 086C01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCB Piezotronics 086C01

Summary of Contents for PCB Piezotronics 086C01

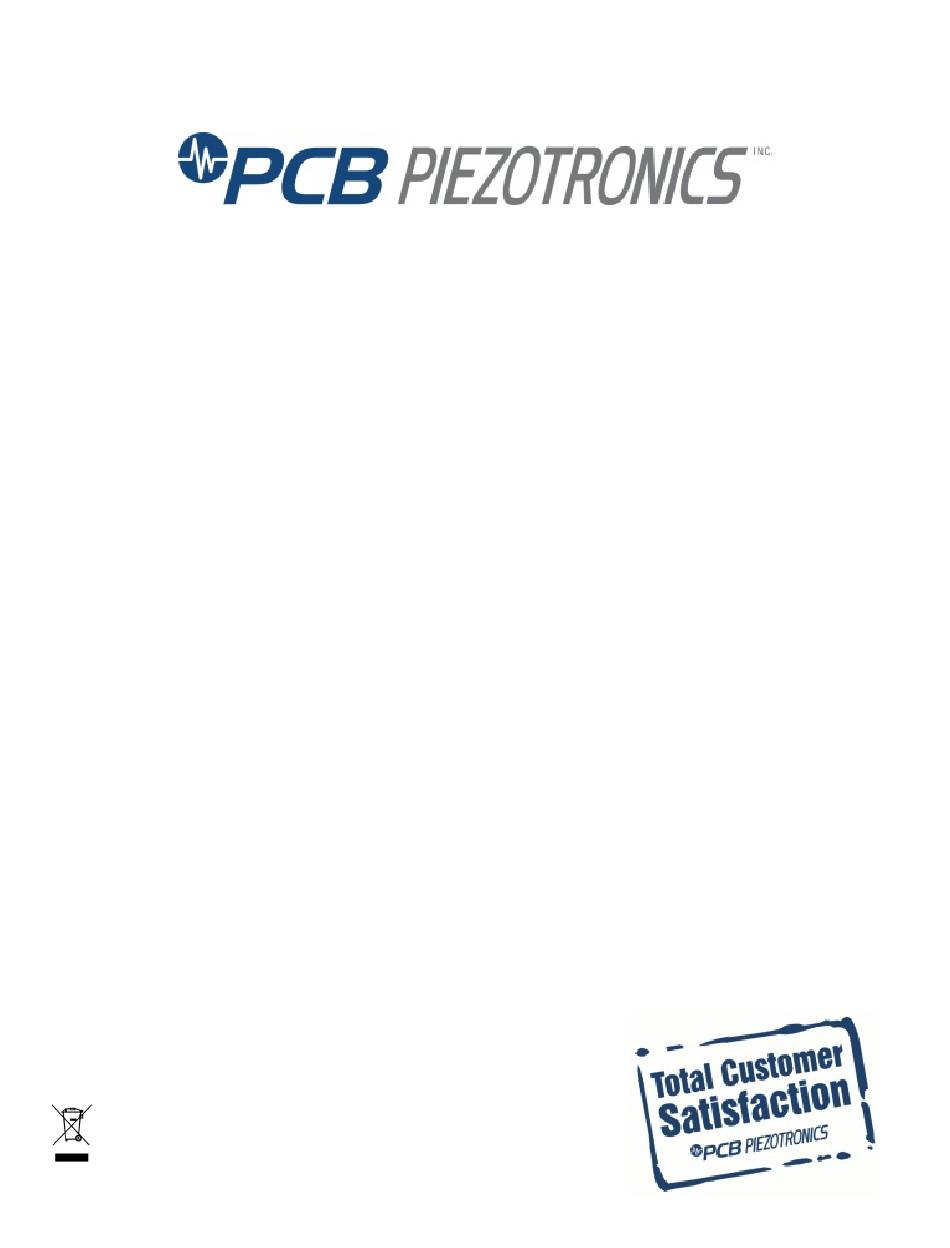

  • Page 1 Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 100 lbf, 50 mV/lbf (11.2 mV/N) Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com...
  • Page 2  Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.

  • Page 6: Table Of Contents

    Installation and Operating Manual ® Modal / Impulse Force Hammer CONTENTS: Introduction ........1.0 Description ........2.0 Installation and Operation ..... 3.0 Testing .......... 4.0 Calibration ........5.0 Maintenance ........6.0 Precautions ........7.0 Warranty and Service ....8.0 INTRODUCTION ®...
  • Page 7 Hard Tip (20 lbf pk) Vinyl Cover (1.3 lbf pk) 1000 10000 100000 Frequency (Hz) 086C01 Family Impulse Hammer Response Curve Hard Tip (80 lbf pk) Medium Soft Tip (80 lbf pk) (20 lbf pk) Medium Tip with Vinyl Cover...
  • Page 8 086C02, C03, C04, C40 Family Impulse Hammer Response Curves Hard Tip (80 lbf pk) Medium Soft Tip (80 lbf pk) (20 lbf pk) Medium Tip with Super Soft Tip Vinyl Cover (20 lbf pk) (80 lbf pk) 1000 10000 Frequency (Hz) 086D05 Family Impulse Hammer Response Curves Medium Soft Tip...
  • Page 9 086D20, C41 Family Impulse Hammer Response Curves Hard Tip (1500 lbf pk) Medium Tip (1500 lbf pk) Soft Tip (1500 lbf pk) Super Soft Tip (1500 lbf pk) 1000 10000 Frequency (Hz)

  • Page 10: Description

    Hammer model selection involves determining the size and mass of the hammer structure which will provide the force amplitude and frequency content required for proper excitation of the structure under test. Large, heavy structures like locomotive frames, tanks and bridges require an instrumented sledgehammer;...

  • Page 11: Testing

    TESTING Generally speaking, the impact tips affect the hammer impulse frequency content, and the extender affects the signal energy level. Frequency content and energy level are interrelated, so both will be affected by different hammer structures. Hammer velocity at impact will also affect both. In general, massive structures with lower stiffness require the use of the extender and soft impact tip to adequately excite low frequency resonances.

  • Page 12: Calibration

    filters, which is their normal behavior. To view the correct impulse waveform, switch the analyzer to a high-frequency range. When configuring your oscilloscope or data acquisition system, it is recommended that the input be set to DC coupled. This is because, in some cases, the time constant associated with the equipment’s AC ®...

  • Page 13: Precautions

    WARRANTY AND SERVICE All equipment and repair services provided by PCB Piezotronics, Inc. are covered by a warranty against defective material and workmanship under a Total Customer Satisfaction policy. See the supplemental sheet, contained with this manual, for information on our service, repair and return policies, procedures and instructions.
  • Page 14 Model Number Revision: L ICP® IMPACT HAMMER ECN #: 48526 086C01 Performance ENGLISH OPTIONAL VERSIONS Sensitivity(± 15 %) 50 mV/lbf 11.2 mV/N Optional versions have identical specifications and accessories as listed for the standard model Measurement Range ± 100 lbf pk ±...
