TECHNICAL GUIDE
LX SERIES
SPLIT SYSTEM
AIR CONDITIONERS
17 SEER – R-410A – 3 PHASE
3 THRU 5 NOMINAL TONS
MODELS: TCG36 THRU 60
®
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.simplygettingthejobdone.com and
www.colemanac.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Standard 1-Year limited parts warranty.
Standard 5-Years limited compressor warranty.
*Does not apply to R-22 models or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed

DESCRIPTION

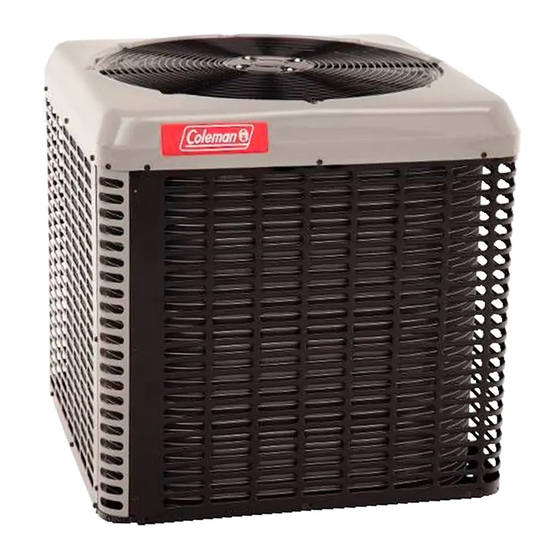

The TCG models are part of our successful LX series 17 SEER
three phase split system air conditioner lineup. The three phase
TCG units are engineered as matched systems using Cole-
man™ indoor coils, furnaces and air handlers.

FEATURES

• Small Footprint - Minimum footprint for easier handling,
transportation, and installation.
• Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. Options are provided for
indoor piston or TXV. The factory installed filter-drier and fac-
tory charge for a 15-Ft lineset means less time spent brazing
and charging the system. The small base dimension and
reduced unit clearances make for easier retrofits.
• Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
• Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galva-
nized steel chassis components resist corrosion and rust
creep. Champagne colored powdercoat paint further protects
external panels.
• Quality Coils - The high efficiency microchannel aluminum
coil is manufactured using an improved material system pro-
viding reliable performance and small unit size.
• Rugged Coil Protection - Coils are protected from mechan-
ical damage by a proven stamped steel coil guard design.
• Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high pressure switch. The
liquid line filter-drier is factory installed to protect the com-
pressor against moisture and debris.
• Reliable Operation - Ball bearing fan motors provide supe-
rior performance in extreme temperatures.
• Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
• Top Discharge - Warm air is blown up, away from the struc-
ture and any landscaping and allows compact location on
multi-unit applications.
• Low Operating Sound Levels - Developed using CFD and
FEA tools, the sturdy cabinet and top design provides sound
performance as low as 73 dBA. Compatible accessories for
further sound reduction are also available.
• Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electri-
cal controls, swing out control box for full corner access, and
removable fan guard allow easy access for unit mainte-
nance.
• Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.
5562621-CTG-C-0320
