Summary of Contents for Oscartielle MINOR 2000
- Page 1 INSTRUCTION MANUAL BETRIEBSANLEITUNG INSTRUCCIONES DE USO MINOR 2000...
- Page 2 Oscartielle Customer Service. Oscartielle states that its refrigerated display units comply with the current hygiene and sanitary laws and regulations and is therefore perfectly suitable for storing food products.

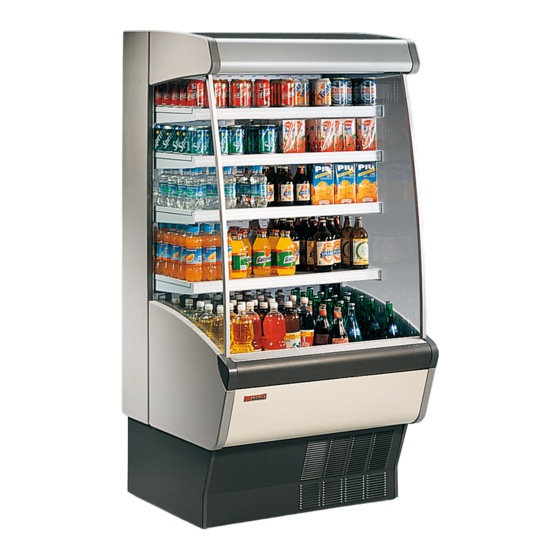

- Page 3 Descrizione del mobile - Cabinet description Description du meuble - Beschreibung der Bedientheke - Descripción de la cámara MINOR2000 MINOR2000 FV FIG. 1 Trasporto del mobile Cabinet handling Transport du meuble - Transport des Kühlmöbels - Desplazamiento de la cámara FIG.
- Page 4 Installazione e condizioni ambientali - Installation and environmental conditions Installation et conditions ambiantes - Inbetriebnahme und Einsatzbedingungen - Instalación y condiciones ambientales FIG. 3 FIG. 5 FIG. 4.1 FIG. 6 FIG. 4.2...
- Page 5 Cabling elettrical and tecnical data Branchement électrique et données techniques Elektrischer Anschluss und technische daten- Conexión eléctrica y datos tecnico FIG.7 TAB 2.1 MINOR 2000 G.I. Potenza assorbita (W) 1049 1303 1765 2629 Absorbed Power (W) Potenza assorbita (W) in sbrinamento elettrico (Optional) Absorbed Power (W) in electric defrost (Optional) 0°C/+2°C (+5°C/+7°C FV)
- Page 6 Messa in funzione e caricamento- Start-up and loading- Mise en marche et chargement- Inbetriebnahme und Bestückung - Puesta en servicio y carga FIG. 9 FIG. 10 FIG. 11 FIG. 12...
- Page 7 FIG.13 Manutenzione del mobile - Unit maintenance - Entretien du meuble - Wartung - Mantenimiento de la cámara FIG. 14...
- Page 8 Canalizzazione del mobile Multiplexing Canalisation du meuble Zusammenbau - Ensamblaje de cámaras FIG. 15...
- Page 9 Schema elettrico - Electrical diagram Schéma électrique Schalt plan- Esquema eléctrico - G.I. L70/100/130/190 e G.E. L70/100/130/190/250 FIG. 16.1...
- Page 10 Schema elettrico - Electrical diagram Schéma électrique Schalt plan- Esquema eléctrico - G.I. L250 FIG. 16.2...
- Page 11 Istruzioni per sincronizzare gli sbrinamenti di banchi frigoriferi canalizzati dotati di strumenti EVRS - Instructions for the defrosts synchronization of multiplexed cabinets with instrument EVRS - Instructions pour la synchronisation des dégivrages des meubles canalisés avec instrument EVRS - Anleitungen für die Synchronisierung der Abtauungen bei Möbeln im Kanal mit Instrument EVRS - Instruciónes para la sincronisación de los desescarches de los muebles in canal con instrumento EVRS - EVRS...
- Page 12 Um die Parametern zu regulieren, die Anleitungen der Schnittstelle EVRS folgen, beiliegend der Betriebsanleitung. 1. Enchufar el primero instrumento Master con los Slave de los muebles canalizados usando el cable Art. 705278 y los faston deja predispuestos para la sincronisación de los desescarches. Conectar el Faston n. 7 del cuadro master con el faston n.
- Page 13 TAB.2.1, TAB.2.2. The plug-in cabinets (except for Minor 2000 L250) are supplied already fitted with a cable m. 2,5 long and a plug (FIG.7). The plug has to be inserted into a fix socket, without using further extension, multiple outlet or longer cables.
- Page 14 Warning: Follow the Manufacturer's instructions to install the unit, using qualified personnel and in compliance with the electrical regulations for the specific country (electrical safety standards and laws, accident and fire prevention laws, EC directives). Incorrect installation may cause injury and damage; the Manufacturer cannot be held liable for this. The unit must be earthed.
- Page 15 At night, use the night blinds (available on request), as this will save energy and help preserve the products on display. 8 - Prohibitions and requirements Warning: disconnect the cabinet from the power supply in case it is not used. The power supply has to be disconnected by the remote-control switch fitted upstream from the power socket.
- Page 16 The gas contained in foam polystyrene for thermal insulation of the cabinet is (CO This product contains HFC, namely fluoridated gasses, a refrigerating gas with a high Global Warming Potential (GWP) regulated by the Kyoto protocol. Oscartielle equips its plug-in cabinets with the following types of refrigerating gasses: R 290; GWP (100) R 134A;...
- Page 17 Please refer to the explanation at page 9. The connecting cable is supplied in the multiplexing kit. 19 - Conformity Declaration A copy of the declaration of product conformity can be requested by filling in the form available a the internet address: http://www.oscartielle.it/conformity...
- Page 18 Installatione, maintenance The installation of the refrigerated cabinet, as well as maintenance, must be performed by skilled technicians. During the execution of the maintenance officers are required to operate in accordance with the instructions contained in the instruction manual. Before performing any ELECTRICAL or MECHANICAL maintenance on the refrigerator, the technician in charge must be sure that there is no power supply.
-
Page 19: Important Notice
Oscartielle S.p.A. in considering this product a WEEE (RAEE), interprets the guidelines of Orgalime, which takes account of the application, in Italian legislation, with Legislative Decree no.49/2014 and no.27/2014, of directives 2012/19/CE, and 2011/65/CE (RoHS), relative to the use of hazardous substances in electric and electronic devices.
