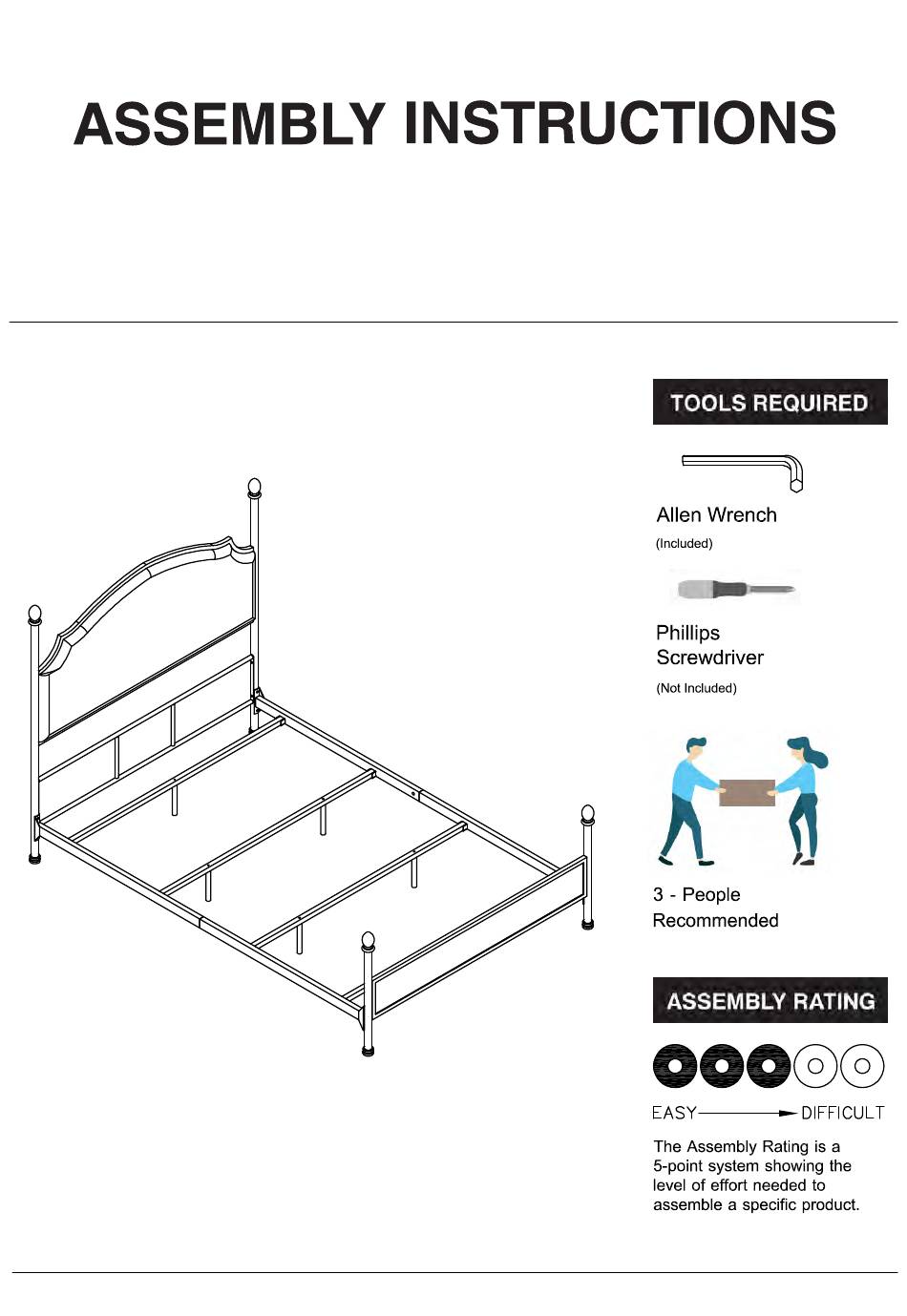

- Page 2 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 3 4 / X X X X X X X 1 1...
- Page 6 Align HB panel (#6) to HB posts (#1,2), then secure by using bolts (#A). Align headboard (#5) to the posts (#1,2), then secure by using bolts (#D,E) and screws (#F) with washers (#H) as shown in the diagram.
- Page 7 Align footboard panel (#7) to the FB posts (#3,4), then secure by using bolts (#C). Align side rails (#8,9) to each other, then secure by using bolts (#A) with washers (#G).
- Page 8 Align side rails to the headboard and footboard, then secure by using bolts (#B) with washers (#G). Align support legs (#13) to the slats (#10,11), then secure by using bolts (#D) with washers (#G).
- Page 9 Align slats (#10,11) to the side rails, (#8,9), then secure by using bolts (#A) with washers (#G). Insert finials (#12) to the headboard and footboard.
