Summary of Contents for Furniture of America CM7420Q

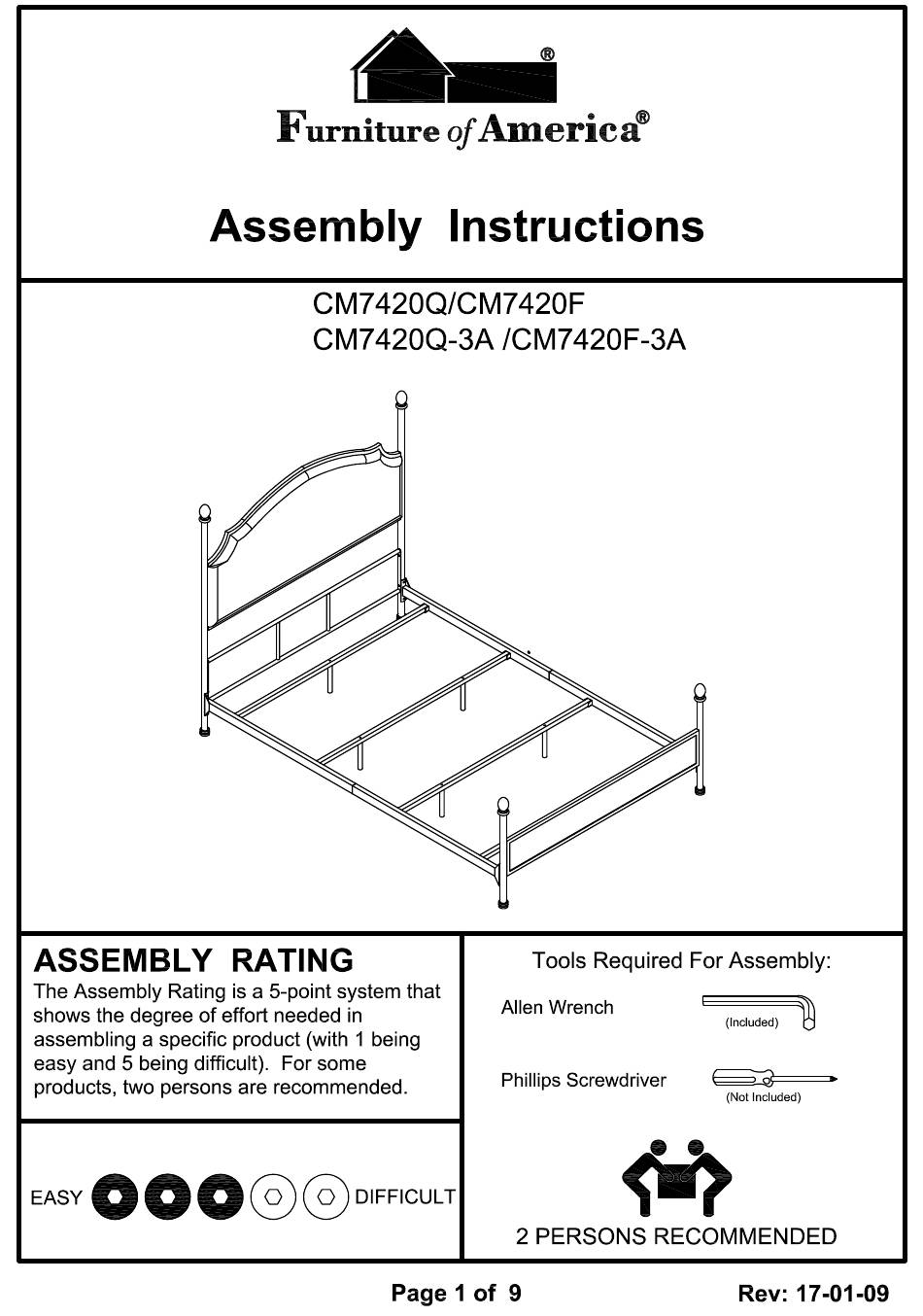

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 5 Align the left and right headboard post (#1,2) to the holes of the headboard panel (#6). Secure with bolts (#A). 1) Align cushion panel (#5) to the holes in-between the headboard posts (#1,2). 2) Secure top holes with bolts (#D). 4) Prepare 4 bolts assembly by inserting 3) Secure bottom holes with bolts (#E).
- Page 6 Align footboard panel (#7) to the holes of the left and right footboard post (#3,4), then secure with bolts (#C). Prepare 6 bolts assembly by inserting lock washer (#G) onto bolts (#A). Align side rails 1 (#8) to the holes of side rails 2 (#9). Secure with bolts (#A).
- Page 7 Prepare 8 bolts assembly by inserting washer (#G) onto bolts (#B). Align side rails to the holes of the headboard and footboard. Secure with bolts (#B). Prepare 6 bolts assembly by inserting washer (#G) onto bolts (#D). Align support legs (#13) to the holes of the mattress rails (#10,11).
- Page 8 Prepare 8 bolts assembly by inserting washer (#G) onto bolts (#A). Align mattress rails (#11) to the outer holes of the side rails and mattress rails (#10) to the inner holes of the side rails. Secure with bolts (#A). Attach the knobs to the headboard and footboard.
- Page 9 Assembly Completed...
- Page 10 For more information contact our team: service.ec@enitiallab.com...
- Page 14 Align headboard panel (#6) to the holes of the left (#1) and right headboard post (#2). Secure with bolts (#A). 1) Align cushion panel (#5) to the holes of the left (#1) and right headboard post (#2), then secure with bolts (#D) and (#E). Prepare 4 screws assembly by inserting washer (#H) onto screws (#F).
- Page 15 Align left (#3) and right footboard post (#4) to the holes of the footboard panel (#7). Secure with bolts (#C). Prepare 6 bolts assembly by inserting washer (#G) onto bolts (#A). Connect and align side rails (#8) to side rails (#9). Secure with bolts (#A).
- Page 16 Prepare 8 bolts assembly by inserting washer (#G) onto bolts (#B). Align side rails to the holes of the headboard and footboard. Secure with bolts (#B). Prepare 6 bolts assembly by inserting washer (#G) onto bolts (#D). Align support legs (#13) to the holes of the mattress rails (#10,11). Secure with bolts (#D).
- Page 17 Prepare 8 bolts assembly by inserting washer (#G) onto bolts (#A). Align mattress rails (#10) to the center of the bed frame and mattress rails (#11) to the outer of the bed frame. Secure with bolts (#A). Attach final (#12) to each posts of the headboard and footboard.
- Page 18 Assembly Completed...
- Page 19 For more information contact our team: service.ec@foagroup.com...
- Page 23 Align the left and right headboard post (#1,2) to the holes of the headboard panel (#6). Secure with bolts (#A). 1) Align cushion panel (#5) to the holes in-between the headboard posts (#1,2). 2) Secure top holes with bolts (#D). 4) Prepare 4 bolts assembly by inserting washer...
- Page 24 Align footboard panel (#7) to the holes of the left and right footboard post (#3,4), then secure with bolts (#C). Prepare 6 bolts assembly by inserting lock washer (#G) onto bolts (#A). Align side rails 1 (#8) to the holes of side rails 2 (#9). Secure with bolts (#A).
- Page 25 Prepare 8 bolts assembly by inserting washer (#G) onto bolts (#B). Align side rails to the holes of the headboard and footboard. Secure with bolts (#B). Prepare 4 bolts assembly by inserting washer (#G) onto bolts (#D). Align support legs (#13) to the holes of the mattress rails (#10). Secure with bolts (#D).
- Page 26 Prepare 8 bolts assembly by inserting washer (#G) onto bolts (#A). Align mattress rails (#11) to the outer holes of the side rails and mattress rails (#10) to the inner holes of the side rails. Secure with bolts (#A). Attach the knobs to the headboard and footboard.
- Page 27 Assembly Completed...
