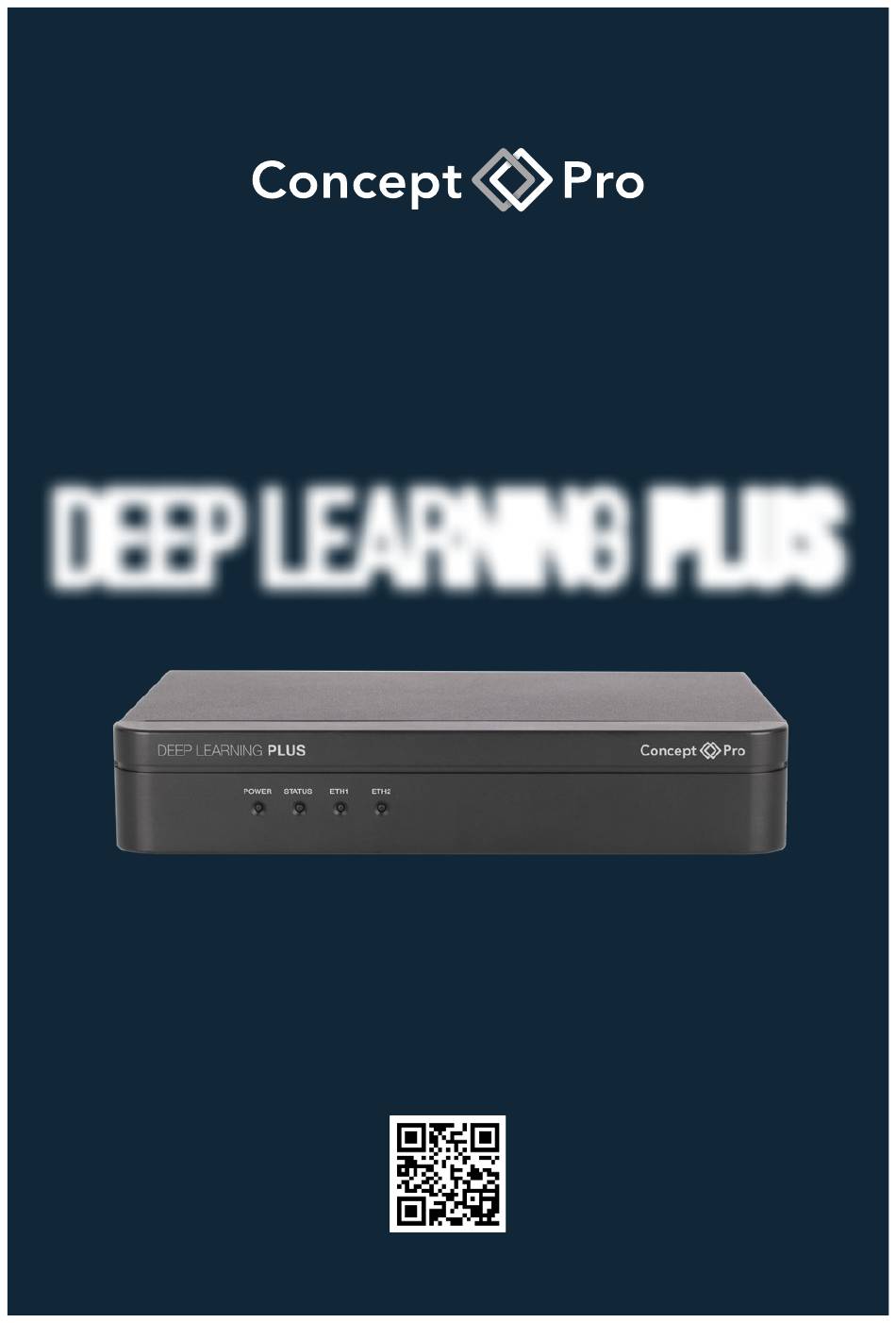

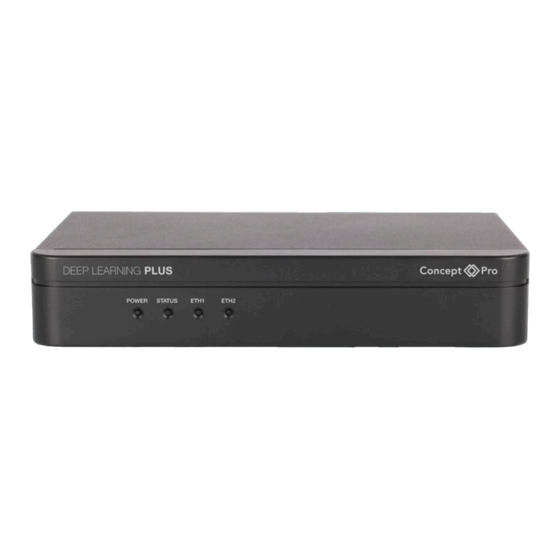

- Page 1 DEEP LEARNING PLUS PLUS DEEP LEARNING Q U ICK S TAR T G UID E DL PL US- 4/DL PL US-8/DL PL US- 16 Technical Documents...
- Page 2 DEEP LEARNING PLUS QUICK START GUIDE...
-
Page 3: What's In The Box
Alarm input signal terminal for connection with alarm sensor equipment. RELAY Alarm output relay terminal for connection with external alarm equipment. RS485 RS-485 communication terminal for connection with external equipment (e.g., access control equipment) DC12V DC12V power input for included power supply adapter. DEEP LEARNING PLUS QUICK START GUIDE... -
Page 4: Basic Connection Overview
For example, the following mixed load-out would be acceptable for DL PLUS-4: Channel Resolution Frame Rate Channel 1 1920x1080 25FPS Channel 2 2592x1520 12FPS Channel 3 2592x1520 12FPS Channel 4 3840x2160 6FPS DEEP LEARNING PLUS QUICK START GUIDE... - Page 5 Enter/Exit, Counting PLEASE REFER TO THE HOW TO OPTIMISE CAMERA INSTALLATION FOR ACCURATE DETECTION SECTION AT THE END OF THIS QUICK START GUIDE FOR MORE GUIDANCE ON SETTING UP A CAMERA FOR >95% DETECTION ACCURACY. DEEP LEARNING PLUS QUICK START GUIDE...
-
Page 6: Universal Mode
The most convenient method to utilise the DL PLUS product in a Concept Pro system is Companion Mode. Simply connect the DL PLUS unit to the same local network as a supported Concept Pro network/ digital video recorder as indicated in the “Basic Connection Overview” section above. Then, add the DL PLUS unit from the DVR/NVR user interface and configure Deep Learning algorithm-based rules with specific alarm triggers for each channel directly from the recorder. - Page 7 CONNECTING DL PLUS WITH SUPPORTED CONCEPT PRO RECORDER Please follow the steps below to connect a DL PLUS product with a supported Concept Pro IP/AHD recorder: Install the DL PLUS product on the same network as the desired, compatible Concept Pro video recorder (e.g., VUHDIP Series NVR).
- Page 8 Refer to the top section to the right. Set <ACTIVATION> to <ON>, select a DL algorithm (e.g., Human/Vehicle Detector), and select <EDIT> under <RULE ENGINE> to add, edit, or delete Deep Learning rules for the selected channel. The following rule types are supported by DL PLUS and Concept Pro recorders: Rule Type Description Triggers when a target object is detected crossing a custom-drawn line;...
- Page 9 (available for Intrusion and Occupancy Detection rule types). When all rule configuration is complete, click <APPLY> and repeat for any other desired channels. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 10 (resolution, frame rate, quality, etc.) for Alarm/Deep Learning events and using lower quality recording settings for other modes. To take advantage of this, please follow the steps below: From the Concept Pro Video Recorder user interface, navigate to <MENU> - <RECORD SETUP> - <DL/ALARM RECORDING> menu.
- Page 11 Deep Learning rules configured with DL PLUS can be setup to trigger specific event actions by the Concept Pro recorder. To take advantage of this customization, please follow the steps below: From the Concept Pro Video Recorder user interface, navigate to <MENU> - <SYSTEM SETUP>...
- Page 12 Easily search for recorded Deep Learning-based events detected using the DL PLUS algorithms using the DL Search menu . From the Concept Pro Video Recorder user interface, navigate to <MENU> - <SEARCH> - <DL SEARCH> menu. Enter desired search parameters for each field: FROM: Enter start date/time.
- Page 13 Note: For security purposes, changing the default user ID and password to unique, complex values is strongly recommended. This can be done from the <SYSTEM> menu in the web interface. If prompted by the web browser, check the option to proceed to the entered IP address. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 14 ‘Admin_Tool.exe’ can be used to discover and configure DL PLUS units (as well as some other Concept Pro products) over the network. Click the <SEARCH> button to search the network for any connected DL PLUS units. Search results are displayed on the screen when the search function is completed. You can determine the DL PLUS units from the listed model information and click on the desired product to configure further.
- Page 15 The device list window will automatically update after a short interval of time. Configure the network settings window if desired. Double-click a device in the device list window to open the device’s web interface. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 16 Enter the default user ID and password (ADMIN/1234). Input username and password in the login window Note: For security purposes, changing the default user ID and password to unique, complex values is strongly recommended. This can be done from the <USER> menu in the web interface. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 17 RTSP stream URL (refer to the user documentation for such products to determine RTSP stream URL format). When all desired video sources are assigned to a channel, select <APPLY> to save. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 18 From DL PLUS web interface, select <SETUP> tab, then <DL SECURITY> - <DL TRIGGER> menu. Select a DL trigger detection rule to create from Intrusion, Occupancy, Loitering, Stopping, Enter/Exit, and Line Crossing Detection, then click <ADD>. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 19 Import Zone Information: Select a zone from another DL Trigger that has already been created. Preview: Draw, edit, and move DL Trigger areas as well as the on-screen counter widget. When finished, select <APPLY> to save. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 20 Days of the Week: Select the days that should apply the Schedule Preset. Time Range: Enter a time range for the Schedule Preset. If the times match, then the schedule will be active for 24 hours for the selected days. When finished, select <APPLY> to save. DEEP LEARNING PLUS QUICK START GUIDE...
- Page 21 NVR/DVR: Sequrinet integration for sending event metadata to Concept Pro recorder in DL PLUS Universal Mode. For the purposes of sending event metadata and snapshot from DL PLUS to supported Concept Pro recorder in Universal Mode, configure as follows : From DL PLUS web interface, select <SETUP>...
- Page 22 Host: Enter the IP address or DDNS name for the desired Concept Pro recorder. Port: Enter the HTTP port number for the desired Concept Pro recorder. Protocol: HTTP protocol. Username: Enter the username for the desired Concept Pro recorder. Password: Enter the password for the desired Concept Pro recorder.
- Page 23 Deep Learning rules configured with DL PLUS can be setup to trigger specific event actions by the Concept Pro recorder, separate from any event actions already configured for the action rules via DL PLUS web interface. To take advantage of this customization, please follow the steps below: From the Concept Pro Video Recorder user interface, navigate to <MENU>...
- Page 24 Easily search for recorded Deep Learning-based events detected using the DL PLUS algorithms using the DL Search menu. From the Concept Pro Video Recorder user interface, navigate to <MENU> - <SEARCH> - <DL SEARCH> menu. Enter desired search parameters for each field: FROM: Enter start date/time.
- Page 25 HOW TO OPTIMISE CAMERA INSTALLATION FOR ACCURATE DETECTION The accuracy of a deep learning-based installation will heavily depend upon various environmental and installation factors. The following guidelines are recommended for the best performance (>95% accuracy): DEEP LEARNING PLUS QUICK START GUIDE...
-
Page 26: Indoor Installations
However, as the angle reaches 0-30° the ability to accurately apply tracking rule types decreases. For deep learning rules that depend upon object tracking in addition to detection, the total range of object movement should be considered. DEEP LEARNING PLUS QUICK START GUIDE... -
Page 27: Outdoor Installations
55m and vehicles up to 80m. Vehicle detection also follows the recommended installation angle/height range. For example, refer to the scene below: Detecting vehicles at greater heights can best be achieved as follows: DEEP LEARNING PLUS QUICK START GUIDE... - Page 28 OFFICE: Videcon Ltd, Unit 5, Bridge Gate Centre, Martinfield, Welwyn Garden City, AL7 1JG Sales: +44 (0)1924 528000 | Accounts: +44 (0)1924 528006 | Technical: +44 (0)1924 528004 | Welwyn: +44 (0)1707 932555 Fax: +44 1924 528005 | Email: sales@videcon.co.uk | www.videcon.co.uk DEEP LEARNING PLUS QUICK START GUIDE MY04AU01_REV00...
