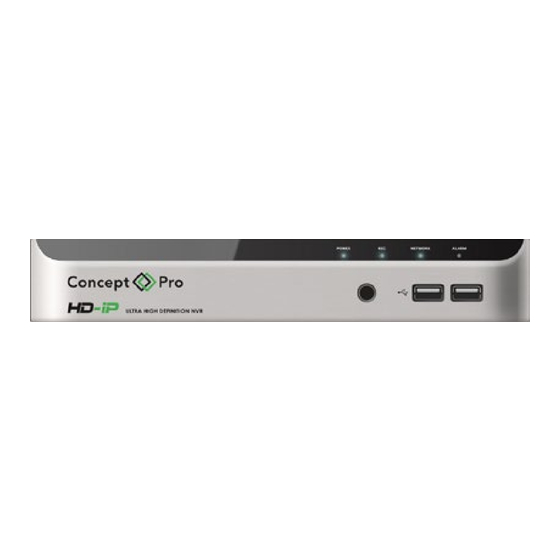

- Page 1 VUHDIP-4 VUHDIP-8 VUHDIP-16 NETWORK VIDEO RECORDER QUICK START GUIDE Technical Documents NETWORK VIDEO RECORDER QUICK START GUIDE...
-
Page 2: What's In The Box
B - VUHDIP-8 C - VUHDIP-16 No Name Description CAM1 – CAM4 (VUHDIP-4) Ethernet ports used for connecting and providing power to network video cameras CAM1 – CAM8 (VUHDIP-8/16) through Power over Ethernet protocol (Max. 15W per channel). ETHERNET/WAN (UPLINK) Network port for connection to the Internet, router, or hub. - Page 3 IP Camera Internet W A N (U P L IN K A U D L A N (D O IO O L IN K V G A A U D IO IN S P O 48 V T O U M O N AL AR IT O R...
-
Page 4: Getting Started
3. GETTING STARTED Setup Wizard The Setup Wizard will help configure important system settings when the device is first booted up. Create a new, complex password to properly secure the device. This step is highly recommended for device security. This step is highly recommended for device security, however please be sure to remember the password in order to prevent becoming locked out of the NVR. - Page 5 1. The log-in screen will appear after the system boots up. 2. Select a user ID and enter the corresponding password. The default user ID is “ADMIN” and the default password is “1234”. 3. Click <OK>. For security purposes, please change the password to a more complex, secure password after logging in the first time.
- Page 6 4. AUTOMATIC RECORDING PROFILES 1. Press [MENU] on the remote control and use the direction buttons to select <RECORD SETUP>, then press [ENTER]. Alternatively, select <MENU> - <RECORD SETUP> from the status bar. 2. Set <RECORD SETUP MODE> to <AUTO CONFIGURATION> and select a desired recording profile: - CONTINUOUS RECORD: Always record video.
-
Page 7: Searching Recorded Video
5. SEARCHING RECORDED VIDEO 1. From the <SEARCH> menu, select <TIME SEARCH>. 2. Specify the date and time from the calendar. 3. Identify the type of recording data by the colour in the bar. - Light Green: Pre-Recording - Green: Continuous Recording - Blue: Motion Recording - Red: Alarm Recording - Yellow: Panic Recording... - Page 8 6. Activating Video Analytics & Deep Learning Video Analytics Video Analytics Some Concept Pro cameras come equipped with video analytics functionality, including line crossing, area entrance/exit, loitering, stopped, and object removed detection, that can be used from the Concept Pro suite of recorders.
- Page 9 A corresponding DLVA Search menu is also available to quickly search video for desired objects. Some Concept Pro cameras can also be used with select Concept Pro recorders to provide highly accurate deep learning video analytics, including human and/or vehicle intrusion detection and illegal parking detection.
-
Page 10: Licence Activation
Deep Learning Video Analytics requires a license to be activated on the recorder. The license can be purchased at the point of ordering a new Concept Pro recorder and will ensure the recorder comes with the Deep Learning Video Analytics license activated Alternatively, the license can be activated after the recorder has been purchased, simply call Videcon on +44(0)1924 528000 to order the license;... - Page 11 Bit Rate Control, then press <APPLY>. Regions of Interest Some Concept Pro cameras, such as the CVP5325 series, support regions of interest directly through Concept Pro NVRs, others can be configured through web browser. Regions of Interest can be manually set from the <CAMERA SETUP> menu with the area denoted ‘of interest’...
- Page 12 Click <QUERY>. The results will be listed in the <ARCHIVING INFO> window. i. The maximum backup capacity for one time is 20GB. If the archiving request exceeds 20GB, the end time will be automatically adjusted so the file is under 20GB. To export to an external USB storage device, connect the device to the NVR and click <EXPORT>.
-
Page 13: App Setup
10. ACCESSING FROM THE CONCEPT PRO VIEWER MOBILE APP From an iOS App Store or Play Store, search for the free “Concept Pro Viewer” app. Install and open the application. Add the device via QR Code, DDNS Details, or IP Address. -
Page 14: Nvr Setup
NVR SETUP Ensure that Sequrinet is enabled by navigating to Menu, System Setup, Network, DDNS. On the bottom, check that Sequrinet Cloud Service is Enabled, then select Apply. Select Menu at the bottom left hand corner of the screen and select Sequrinet at the top of the list. A QR code will appear. - Page 15 NETWORK VIDEO RECORDER QUICK START GUIDE...
- Page 16 S1474AU02_Rev02 Design and specification are subject to change without notice.
