Device settings

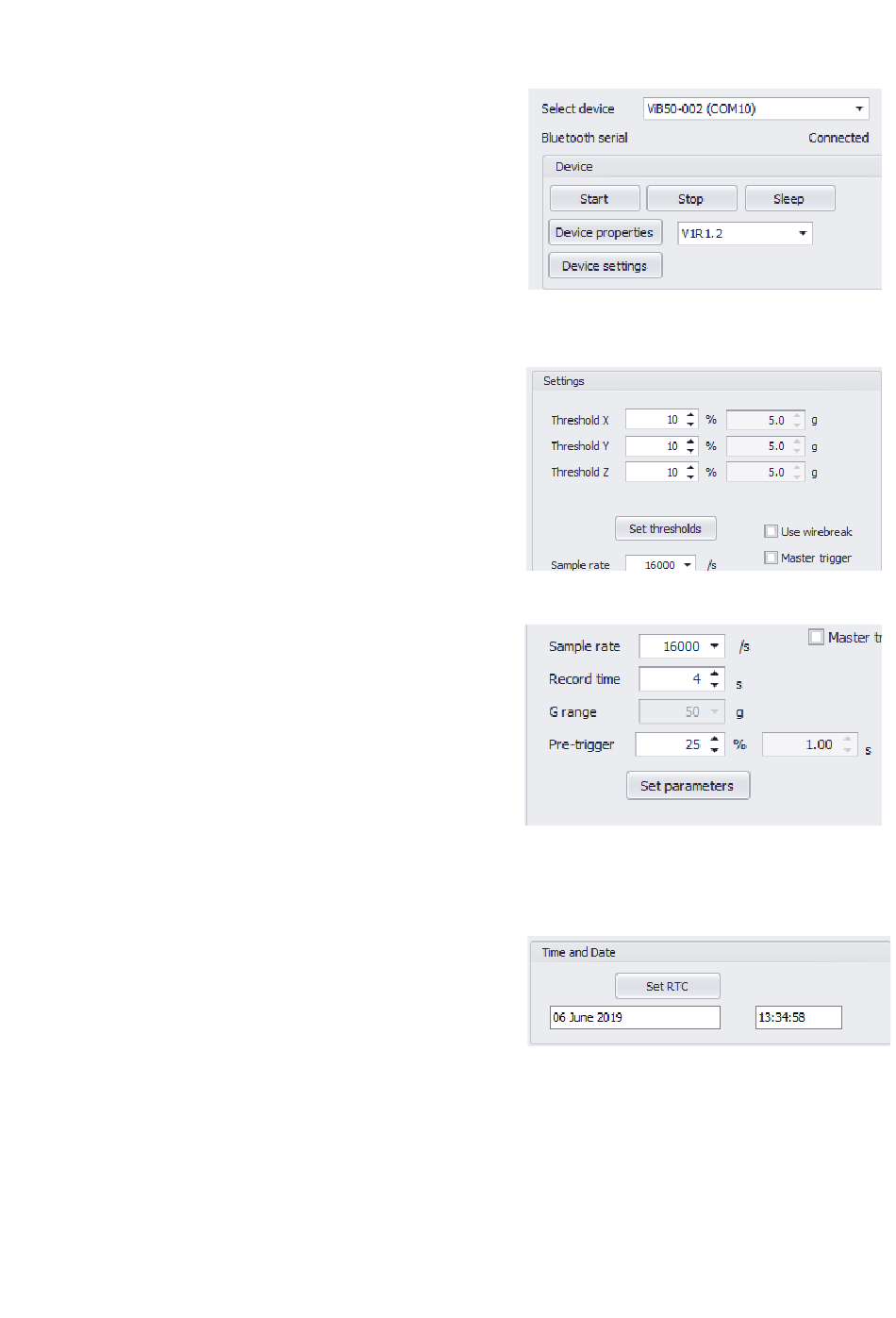

There are 5 control buttons that have the following use:
•

Start:

Initiates a software tigger (starts a sample).
The sample starts one minute after command.
•

Stop:

Stops the unit from waiting for a trigger, unit
will resume waiting for a trigger after a minute.
•

Sleep:

A reduced power mode that waits for
communications before continuing.
•

Device properties:

and reconects it to get the device properties again.
•

Device setting:

Reloads all the device settings.

Thresholds

•
There are 2 different trigger options either level
threshold trigger or wire-break.
•
The three-different axis have individual trigger
level settings from 1% of full scale to 80%.
•
Wire-break sets the unit to trigger on the external
wire-break connection.
•
Master trigger is not implemented in the current
version of the Vibration monitor
•
Once the levels have been set the Set threshold
button updates the unit.

Parameters

•
Sample rate can be set for 1,000 – 32,000 s/s
•
Record time can be set up to the maximum times
allowed by the various sample rates.
o Note a minimum of 8,000 samples should
be selected with a combination of Record
time and Sample rate
•
G Range is read only and shows the current units
range.
•
Pre-trigger is a percentage from 5% To 80% of the record time set. Changing either this or
the Record time alters the actual trigger time.
•
Once the values are selected the Set parameters button updates the unit.

Real Time Clock

•
The Real Time Clock (RTC) should be set to the
system time periodically to increase the accuracy.
•
The RTC is used when there is no valid GPS
connection for data timing and for the File
Date/Time stamping
These settings are retained by the unit when switched off and to deploy the units with these pre-set
settings is simply a matter of switching the unit on.
This disconnects the bluetooth link
