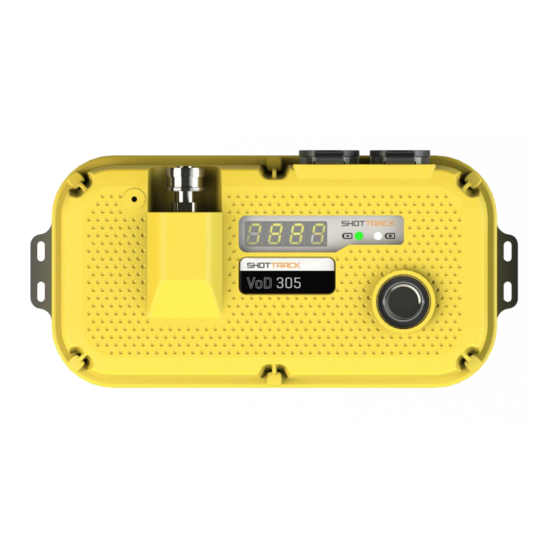

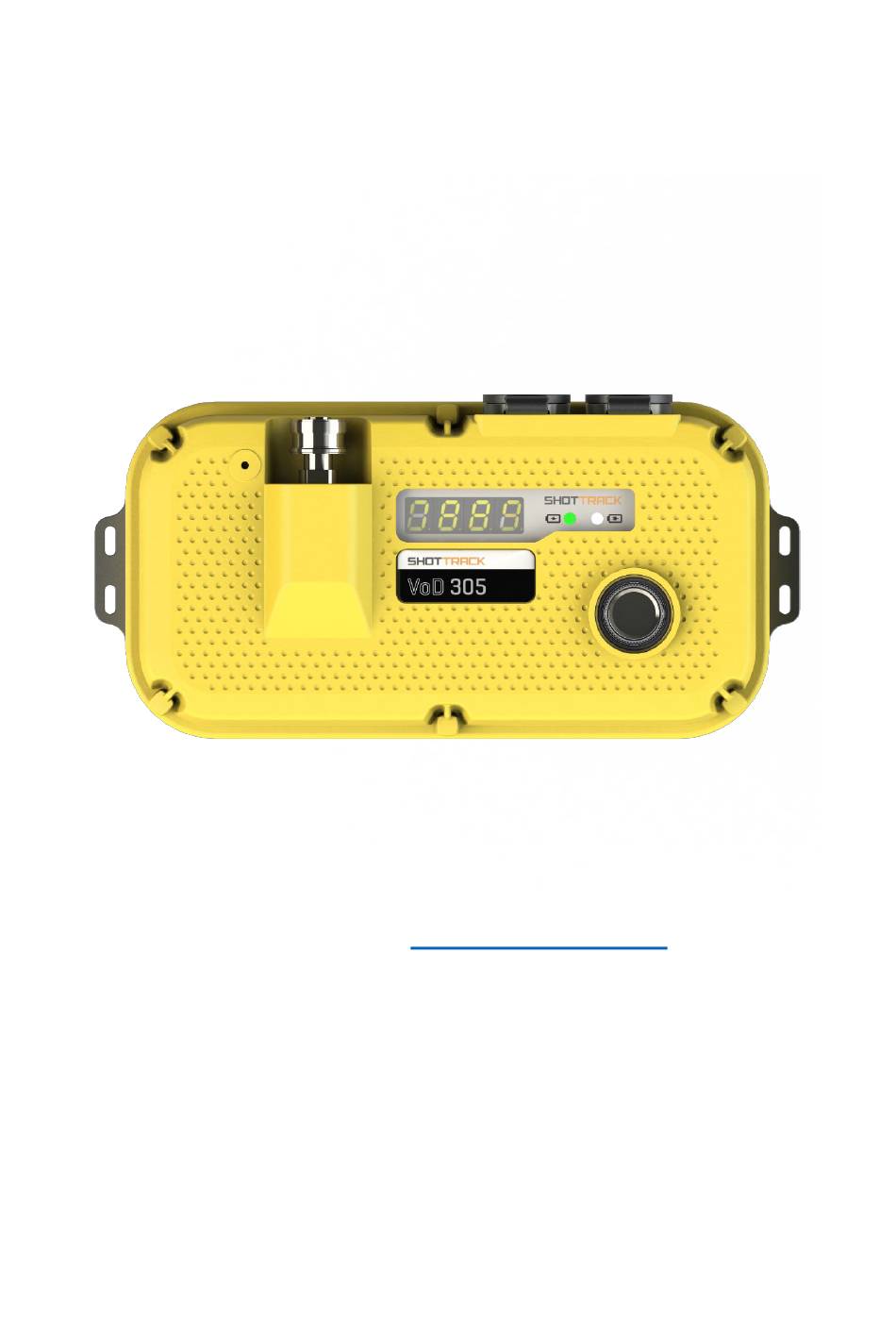

- Page 1 ShotTrack VoD-305 ShotTrack Pty Ltd Office 1.03 Innovation Hub, 363 Hogbin Drive, Coffs Harbour, NSW 2450, Australia info@shottrack.com.au www.shottrack.com.au...
- Page 2 • The simplicity of the ShotTrack unit is the key to success. After the holes have been prepared there are 5 easy steps to remember • Battery condition should have been checked already • 100 % is good for 10 hours...
- Page 3 Using the ShotTrack VoD305 • Turn the unit ON • Press the ON/OFF button for 2 seconds until it illuminates Blue. • Release the button and it will start to flash Red • The current battery condition will be shown as a percentage •...
- Page 4 • After the battery condition is shown the current calibration factor is displayed. • The display will flash this value for 5 seconds. • The unit will now display 0000 which is the no cable default. If the unit is being used in a completely different location than before it might be prudent to allow an extended period to make sure a GPS fix can be acquired to set the (RTC) Real Time Clock if so then the...
- Page 5 • Connect the cable to the unit • The display will change to the cable length. • If the displayed length is not what is expected give or take a couple of meters then there is a cable error. This will more than likely be due to an incorrect cable calibration or suspect connector.
- Page 6 After the trigger • The unit will attempt to recover from a momentary disconnection of an intermittent connector or temporary distortion of cable. For example, if a truck runs over the cable and the cable later recovers. o After a trigger event is detected the unit will check 10 seconds after the data has been saved to see if the cable has returned to its original length.
- Page 7 In some circumstances it is advantageous to have the unit reset itself after it has triggered. This is an optional feature and must be specially enabled. Please contact ShotTrack if this option is required. • Repeat further tests. o If the unit had been set to one or more repeat...
