ShotTrack III VoD Manual

ShotTrack
S
hotTrack III VoD (Velocity of Detonation) monitor has been developed based on ten years of
supply and operation with the original ShotTrack.

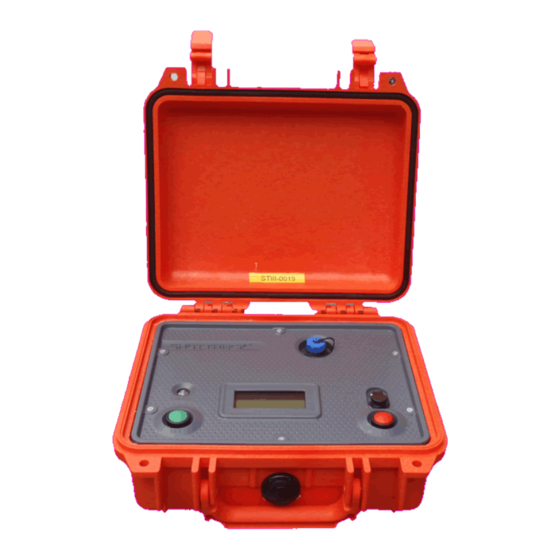

The unit is housed in a tough 1200 Pelican Case and measures 270 x 246 x 123 mm. (outside
dimensions)
The unit has an internal Multi Cell-Lithium ION battery pack that has > 4-hour continuous operation
from a charge.
General Specifications
 Sample Rates
 Unit display
 Max Cable length
 Samples stored
 Data Storage
 Size
 Weight
 Battery
 Charger
Data Format
Data is stored as a pair of standard files. The shot data and info is stored on an internal Flash drive.
Cable lengths
• Maximum cable length = 610 meters. This is the recommended maximum cable length. It is
possible with some cables to get above this length. If a longer length is used then the sample
rate must be changed to 12 us.
• Minimum cable length before shot = 150 meters. This is the minimum length the unit checks
for before allowing the unit to be SET. A no cable message is displayed if the cable is shorter
than this length. Records down to 80 meters. This allows for minimum of 70 meters of usable
cable for a shot.
III VoD Introduction

= Selectable 6 (default) , 12, 24 and 48 microseconds
= Meters (default) , Feet or Nanoseconds
= 610 meters
= 512,000 (1 Mbyte per shot)
= Internal Flash (4 GByte )
= 27 cm x 24.6 cm x 12.3 cm
= 1900 grams
= LION internal 7.6 volt battery
= Internal intelligent LION charger
