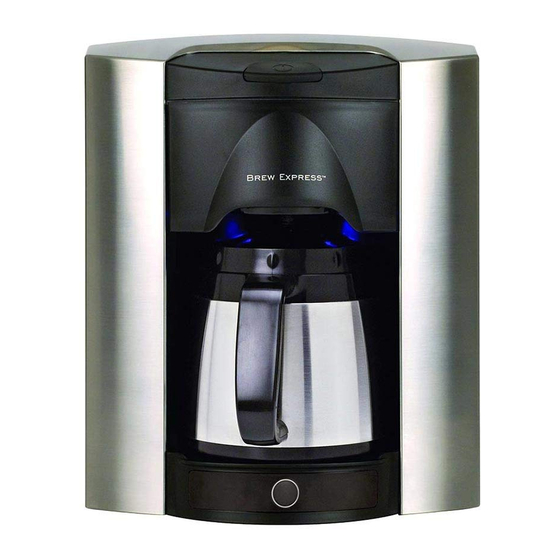

Lance-Larkin Brew Express BE-104C Operation Manual

Lance-larkin brew express be-104c: user guide
Hide thumbs Also See for Brew Express BE-104C:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
B
E
REW
XPRESS
®
OpEratiOn GUiDE
BE-104C
model no.
For more information see our instructional video online at www.BrewExpress.com.
by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brew Express BE-104C and is the answer not in the manual?

Questions and answers

Related Manuals for Lance-Larkin Brew Express BE-104C

Summary of Contents for Lance-Larkin Brew Express BE-104C

  • Page 1 XPRESS ® OpEratiOn GUiDE BE-104C model no. For more information see our instructional video online at www.BrewExpress.com.

  • Page 2: Table Of Contents

    COn t En ts 1. Safety 2. Features 3. Controller Functions 4. Start Up 5. Operation 6. Maintenance 7. Troubleshooting 8. Parts & Service 10. Warranty Information 6 - 7 9 - 11...

  • Page 3: Safety

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all Instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. The voltage and frequency of the supply connections should conform to those of the rating label. 4.

  • Page 4: Safety

    safEty IMPORTANT: Please read and follow instructions carefully before starting your BREW EXPRESS in-the-wall COFFEE SYSTEM. The BREW EXPRESS dispenses extremely hot water. Hot liquids may cause severe burns if it contacts skin. Use extreme caution when handling hot liquids dispensed by the BREW EXPRESS. KEEP HANDS AWAY FROM SPRAY HEAD, BREW BASKET, CARAFE OR MUG DURING BREW CYCLE •...

  • Page 5: Features

    Handsome Euro design compliments any decor. Unique brew basket allows for removal of carafe without spilling. Stylish and sturdy construction designed for years of use and trouble-free maintenance. Exclusive Pause-N-Brew detection sensor knows when carafe is removed and stops the brew cycle. fEatUrEs Convenient and practical.

  • Page 6: Controller Functions

    COntrOl fUnCtiOns Display Panel Brew Button Starts brew cycle. Brewing stops automatically or by pressing the brew button again. Status Light Green (steady) – wait mode Red (steady) – brew mode Red (slow blinking) – carafe or mug not detected Red (fast blinking) –...

  • Page 7: Start Up

    IMPORTANT: Please read and follow instructions carefully before starting your BREW EXPRESS in-the-wall COFFEE SYSTEM. Did you purge water lines during installation to remove any foreign particles (debris) in lines? Debris in water lines can clog brewer system causing failure, and VOID ALL WARRANTIES. The BREW EXPRESS dispenses extremely hot water.

  • Page 8: Operation

    OpEratiOn 1. Select Water Volume The water volume can be set to 2 cup or 4 cup using the slide switch on the back of the unit. This feature was intended for applications where the volume is set at installation and not changed. When the switch is in the up position (2 cup mode), 7 to 9 oz (207 to 266 ml) of water will be dispensed.
  • Page 9 6. Carafe Lock Removal The Brew Express is shipped with a carafe lock to prevent the carafe from moving in mobile applications (marine, recreational vehicles) or to prevent accidental removal by children. If this device is not required it can easily be removed.

  • Page 10: Maintenance

    maintEnanCE Cleaning Carafe Clean the carafe and lid after each use with warm water and a mild dish soap. Brew Basket The brew basket should also be cleaned after each use with mild dish soap and warm water. The brew basket is dishwasher safe (top rack only). Spray Head It is recommended the spray head be cleaned occasionally with mild soap and warm water depending on the amount of use.

  • Page 11: Troubleshooting

    Display is not illuminated • Depress power button (on top of brewer). • Ensure the power to the rough-in box is turned on (check circuit breaker). • Ensure brewer is fully pressed into the rough-in box. • Ensure the outlet inside the rough-in box is properly wired. Remove the brewer and check outlet with volt meter.
  • Page 12 trOUBlEshOOtinG Water overflow from brew basket • Paper filter is not high enough and grounds are flowing over and plugging brew basket (use higher filter) Excessive Steam • Inlet water line connected to hot water supply (connect to cold water). •...

  • Page 13: Troubleshooting

    • Check volume of water by running a full cycle of water without coffee. If carafe overfills call for technical service. • Check voltage to coffee maker. Water leak from back of brewer • Check quick connect (push connectors together firmly and slightly twist).

  • Page 14: Parts & Service

    parts & sErviCE Spare parts are available from Lance Larkin (866) 268-5953 or email info@lancelarkin.com Contact Lance Larkin for all service and warranty issues. • Spray head • Brew Baskets (flat bottom and cone) • Carafe and lid • Mounting screws •...

  • Page 15: Warranty Information

    Warranty 1 yEar limitED Warranty This limited warranty is the only one that applies to this product, and sets forth all the responsibilities of Lance Larkin regarding this product. There is no other warranty, other than that described herein. BREW EXPRESS is warranted, to the original purchaser only, to be free of defects for parts and labor for a period of 1 year from the date of purchase.
  • Page 16 www.brewexpress.com for customer service or technical service please call (866)-268-5953 ® ® Printed in CHINA. BE104C-OG/052808 © LANCE LARKIN 2008...
