15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2” and rated from PoE(53V), 0.43A. (XNV-6083RZ/XNV-8083RZ/XNV-9083RZ) EXPLANATION OF GRAPHICAL SYMBOLS 16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2”...
Page 4
For below models only. The ITE is to be connected only to PoE+ networks without routing to the outside plant. XNV-6083RZ/XNV-8083RZ/XNV-9083RZ The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3at shall be a UL Listed device with the output evaluated as a Limited Power Source Risk Group 1 as defined in UL60950-1 or PS2 as defined in UL62368-1.
CONTENTS OVERVIEW WEB VIEWER Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs Optional Accessories for Installation Network I/O box - separately sold product What’s Included At a Glance APPENDIX...
overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)
OPTIONAL ACCESSORIES FOR INSTALLATION NETWORK I/O BOX - SEPARATELY SOLD PRODUCT You can purchase appropriate optional accessories available. Appearance Item Name Description Model Name External connection device for camera’s Network I/O box SPM-4210 alarm and audio I/O Hanging Mount Backbox * This mount can be used after being attached to hanging mount SBP-300LMW (Parapet Mount)

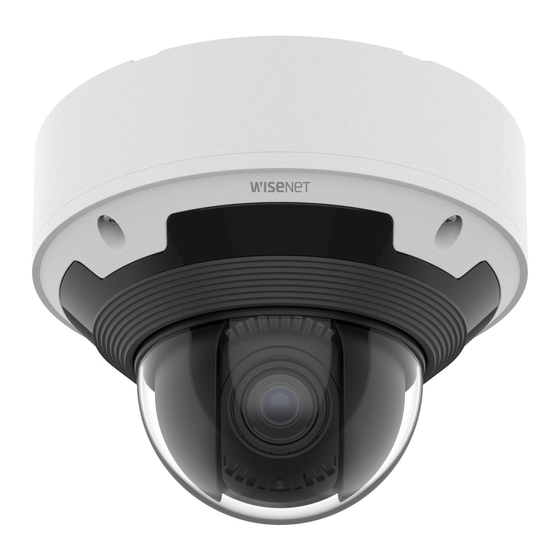

As for each sales country, accessories are not the same. Mount-plate Camera-case Camera-module Dome-cover Pipe-cover Illumination Sensor Reset PoE+ port button Use installation screws of at least M4, L30 for the installation of this product. Micro SD card slot IR LED (XNV-6083RZ/ XNV-8083RZ/ XNV-9083RZ) 8_ overview...
installation & connection INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP67 / IP6K9K spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
Page 10
installation & connection Removing a Micro SD card Installation (mount plate) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD [Directly installing on wall/ceiling] card from the slot. 1-1.
Page 11
[Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out network cable through the pipe. 2-2. Separate the pipe cover of the mount plate by pressing its sides. English _11...
Page 12
installation & connection Installation (camera case) 3. Mount the cable bushing to the camera case. Use a cable bushing compliant with the network cable to be connected. Camera main: use a cable with the diameter of Ø5 to 6.5 Components: use a cable with the diameter of Ø5 to 8.5 [Installing the network cable] 1-1.
Page 13
Installing the camera module Assembling the dome cover 1. Connect the network cable to the PoE+ port on the camera module. [Directly installing on wall/ceiling] 2. Attach the camera module to the case. 1. Assemble the dome cover. A magnet is embedded at the bottom of the module Make sure to firmly tighten the fastening screws so that there is no water damage issue.
Page 14
installation & connection [Using Weather cap] 3. Mount the weather cap to the dome cover and fasten the screws. 1. Remove the screws from the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 TR20 2.
CONNECTING WITH OTHER DEVICE ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Tilt PoE+ Router Ethernet Lens rotation ` Adjusting the monitoring direction Powering and networking You can adjust the camera direction only when the camera is fixed on the ceiling. At this time, rotating the main body of the camera in the left and right direction is called PAN, and adjusting Connect the PoE+ device with the PoE+ port of the camera.
Page 16
installation & connection Connecting audio and alarm I/O You can connect audio and alarm using a network I/O box separately sold. Microphone Network Speaker <SPM-4210> Alarm Sensor (Warning lamp) For more information on the network I/O box, see the manual for the network I/O box. You can set the network I/O box in Camera web viewer <Setup ( )>...
network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
network connection and setup USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).
AUTOMATICALLY CONFIGURING IP Configuring Dynamic IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically ~ Example of the Dynamic IP environment configure the IP. XNV-6083RZ - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2.
For more information, refer to the user manual of the applicable router. Play) function. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”. 20_ network connection and setup...
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _21...
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.
PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video&audio, network, event, analysis, and system over the network.
appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ Check if the memory card is defective. ~ On the authentication popup window prompted when initially accessing https, click "View Cannot record into the Micro SD card. Authentication Certificate" and select the "Always trust when connecting to the designated ~ When replacing the Micro SD card, it must be done while the power is disconnected from No video is displayed when accessing webviewer IP"...
Page 25
Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
