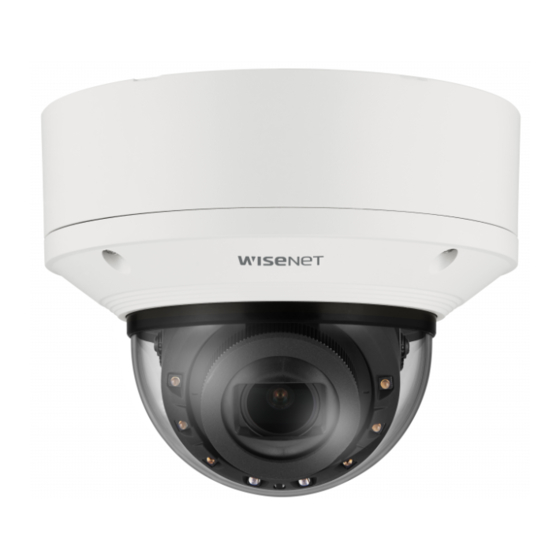

- Page 1 NETWORK CAMERA User Manual XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R XND-6083RV/XND-8083RV/XND-8093RV/XND-9083RV XNO-6083R/XNO-8083R/XNO-9083R XNB-6003/XNB-8003/XNB-9003...
- Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 EXPLANATION OF GRAPHICAL SYMBOLS from 12 Vdc, 1.67 A or PoE, 0.43 A. (XND-6083RV/XND-8083RV/XND-8093RV/XND-9083RV/XNV-6083R/ XNV-8083R/XNV-8093R/XNV-9083R/XNO-6083R/XNO-8083R/XNO-9083R) The lightning flash with arrowhead symbol, within an equilateral triangle, is 16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated intended to alert the user to the presence of “dangerous voltage”...
- Page 4 The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3at shall be a UL Listed device with the output evaluated as a Limited Power Source as defined in WARNING IR emitted from this product. UL60950-1 or PS2 as defined in UL62368-1. (XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R/ Do not stare at operating lamp. XND-6083RV/XND-8083RV/XND-8093RV/XND-9083RV/XNO-6083R/XNO-8083R/XNO-9083R) Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102.
-
Page 5: Table Of Contents
CONTENTS OVERVIEW Important Safety Instructions INSTALLATION & CONNECTION Adjusting the monitoring direction for the Recommended PC Specifications camera Recommended Micro SD/SDHC/SDXC Connecting with other Device Memory Card Specifications NAS recommended specs Video output Optional Accessories for Installation NETWORK CONNECTION AND Connecting the Camera Directly to Local Area Networking SETUP... -
Page 6: Recommended Pc Specifications
overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based) - Page 7 Vandal Dome Camera Indoor Dome Camera XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R XND-6083RV/XND-8083RV/XND-8093RV/XND-9083RV Bullet Camera Box Camera XNO-6083R/XNO-8083R/XNO-9083R XNB-6003/XNB-8003/XNB-9003 English _7...
-
Page 8: Optional Accessories For Installation
OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. Model name Hanging Mount Backbox Pole Mount Skin Cover Housing XNV-6083R/XNV-8083R/ SBP-300LMW (Parapet Mount) SBP-187HMW SBV-180WW SBC-180B (Black) XNV-8093R/XNV-9083R SBP-156LMW (Parapet Mount) SBP-300CMW (Ceiling Mount) SBP-156CMW (Ceiling Mount) -
Page 9: Vandal Dome Camera
WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount-plate Camera-case Camera-module Dome-cover <XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R> Pipe-cover Lens IR LED Illumination Sensor Reset button Zoom/Focus Network Control Button Port Options (not included) VIDEO RESET... -
Page 10: Installation
vandal dome camera INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP67 / IP6K9K spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: ~ Select an installation site that can hold at least 5 times the camera’s weight. - Page 11 Removing a Micro SD card Installation (mount plate) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD [Directly installing on wall/ceiling] card from the slot. 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. VIDEO RESET VIDEO RESET Before removing the Micro SD card, in <Setup (...
- Page 12 vandal dome camera [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
- Page 13 1-4. Mount the cable bushing to the camera case. 2-3. Mount the cable bushing to the camera case. [Installing the network cable] (IP66) [Installing audio/alarm cables] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 2-2.
- Page 14 vandal dome camera 4. Join the mount plate with the camera case. Installing the camera module 1. Connect the network/power/audio/alarm cables to the camera module terminal. 2. Attach the camera module to the case. A magnet is embedded at the bottom of the module Take caution not to allow any foreign objects between the attaching surfaces.
- Page 15 Assembling the dome cover [Using Weather cap] 1. Remove the screws from the dome cover. [Directly installing on wall/ceiling] 1. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 TR20 2.
- Page 16 vandal dome camera Outside installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.
-
Page 17: Indoor Dome Camera
indoor dome camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Pipe-cover Mount-plate Camera-case Camera-module Dome-cover <XND-6083RV/XND-8083RV/XND-8093RV/XND-9083RV> Internal microphone connection port Lens IR LED Reset button Illumination Sensor Zoom/Focus Network Control Button Port Option (not included) SBC-160B VIDEO RESET... - Page 18 indoor dome camera INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP52 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: ~ Select an installation site that can hold at least 5 times the camera’s weight.
- Page 19 Removing a Micro SD card Installation (mount plate) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD [Directly installing on wall/ceiling] card from the slot. 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. VIDEO RESET VIDEO RESET Before removing the Micro SD card, in <Setup (...
- Page 20 indoor dome camera [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
- Page 21 1-4. Mount the cable bushing to the camera case. 2-3. Mount the cable bushing to the camera case. [Installing the network cable] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. 2-2. Use the cap installer to pass through the RJ45 cable. Cap Installer English _21...
- Page 22 indoor dome camera [Installing audio/alarm cables] Installing the camera module 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 1. Connect the network/power/audio/alarm cables to the camera module terminal. 2. Attach the camera module to the case. A magnet is embedded at the bottom of the module Take caution not to allow any foreign objects between the attaching surfaces.
- Page 23 Assembling the dome cover [Directly installing on wall/ceiling] 1. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 Be careful not to alter the monitoring direction of your camera. English _23...
-
Page 24: At A Glance
bullet camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount plate Sunshield fixing screw Bottom cover Tooth washer Sunshield <XNO-6083R/XNO-8083R/XNO-9083R> Pipe-cover Camera body Reset button Power Port Test monitor out port Audio/Alarm cable (DC12V) port Micro USB port... - Page 25 INSTALLATION Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot. This camera is waterproof and in compliance with the IP67 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
- Page 26 bullet camera Installation (Mount plate) [Installing using pipe] 2-1. Attach the installation template and drill holes for screws and cables. [Directly installing on wall/ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. 2-2.
- Page 27 2-3. Place the pipe on the Mount plate. 1-4. Mount the cable bushing to the Bottom cover. 2-4. Fix the Mount plate using appropriate screws. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. Installation (Bottom cover) Use a cable bushing compliant with the network cable to be connected. [Installing the network cable] Camera main: use a cable with the diameter of Ø5 to 6.5 2-1.
- Page 28 bullet camera 2-3. Mount the cable bushing to the Bottom cover. 4. Join the Mount plate with the Bottom cover. TR20 [Installing audio/alarm cables] 3-1. Mount the cable bushing of the provided audio/alarm cables to the Bottom cover. 28_ bullet camera...
- Page 29 Installing the camera module 3. Attach the camera body to the Bottom cover. 1. Hang the safety cable up on a hook that looks like an arrow in the Bottom cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 e.g.
- Page 30 bullet camera 5. Use the sunshield mounting screws and tooth washers to join the sunshield to the camera body. Outside installation Once installation is complete, peel off the protective cover from the camera lens. When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.
-
Page 31: At A Glance
box camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mounting Bracket Screw Hole CS mount Lens (not included) Auto Iris Lens port Test monitor out port <XNB-6003/XNB-8003/XNB-9003> Audio cable port Built-in microphone Micro SD card Compartment Option (not included) -
Page 32: Mounting The Lens
box camera MOUNTING THE LENS Disconnect the power before proceeding. Focusing The CS mount Lens are not included in the product package. Select a target to film, turn the zoom lever of the lens to adjust the magnification and then focus the lens so that It is recommended that megapixel lens are use on this camera to optimise performance. -
Page 33: Inserting/Removing A Micro Sd Card
INSERTING/REMOVING A MICRO SD CARD Inserting a Micro SD card Removing a Micro SD card Insert a Micro SD card in the arrow direction shown in the figure. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot. -
Page 34: Adjusting The Monitoring Direction For The Camera
installation & connection ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Adjust the direction of IR LEDs not to hinder their view by an instrument. Tilt Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Adjust the direction of IR LEDs not to hinder their view by a weather cap (if any). -
Page 35: Connecting With Other Device
Power Ethernet Monitor for installation Ethernet <XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R/XND-6083RV/XND-8083RV/XND-8093RV/XND-9083RV> <XNB-6003/XNB-8003/XNB-9003> The Test Monitor Out port of the product is provided for easier installation, and is not recommended for monitoring purposes. Monitor for installation The Micro USB port of the product is provided for easier installation, and is not recommended for monitoring purposes. - Page 36 If you are connecting using a router that supports PoE or PoE+, you do not need to use a separate power supply. 2. Select the camera SSID after turning on the WiFi. Use PoE that is compliant with the IEEE 802.3at protocols. (XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R/XND-6083RV/ 3. Run the Wisenet Installation application.
- Page 37 ~ Audio in (XND-6083RV/XND-8083RV/XND-8093RV/XND-9083RV/XNB-6003/XNB-8003/XNB-9003) : Selectable (microphone/Line-in/Built-in microphone), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm ~ Audio in (XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R/XNO-6083R/XNO-8083R/XNO-9083R) : Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm Network ~ Audio out : Line-out (3.5mm mono jack), Maximum output: 1Vms, Line out impedance : 600Ω...
- Page 38 By connecting an external device to the [RS-485 +, –] port, the external device can be controlled. The GND connection is recommended for RS-485 communications. If you encounter a communication failure, connect the GND pin <XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R/XND-6083RV/XND-8083RV/ as appropriate to correct the GND level between camera and external device.
- Page 39 TRANSISTOR RESISTOR Warning lamp / TRANSISTOR RELAY Siren When the warning light/siren does not exceed DC12V/50mA (only applicable for XNV-6083R/XNV-8083R/XNV-8093R/XNV-9083R/XND-6083RV/XND-8083RV/XND- 8093RV/XND-9083RV/XNO-6083R/XNO-8083R/XNO-9083R) External connection Inside of the camera Warning lamp / Siren power ALARM Out DC 12 V/50 mA MAX Warning lamp /...
-
Page 40: Connecting The Camera Directly To Local Area Networking
network connection and setup network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1. -
Page 41: Using Device Manager
USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com). -
Page 42: Manually Registering Camera
network connection and setup Configuring Dynamic IP AUTOMATICALLY CONFIGURING IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically ~ Example of the Dynamic IP environment configure the IP. XNO-9083R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. -
Page 43: Port Range Forward (Port Mapping) Setup
Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”. -
Page 44: Connecting To The Camera From A Shared Local Pc
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. 44_ network connection and setup... -
Page 45: Connecting To The Camera
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration. -
Page 46: Password Setting
web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network. -
Page 47: Troubleshooting
appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION Voice is not recorded even though When an Windows 10 user accesses ~ You must enable the <Audio In> check box in <Basic> - <Video Profile>. ~ This is what happens when microphone driver has been set to Realtek driver. audio input settings are configured. - Page 48 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
