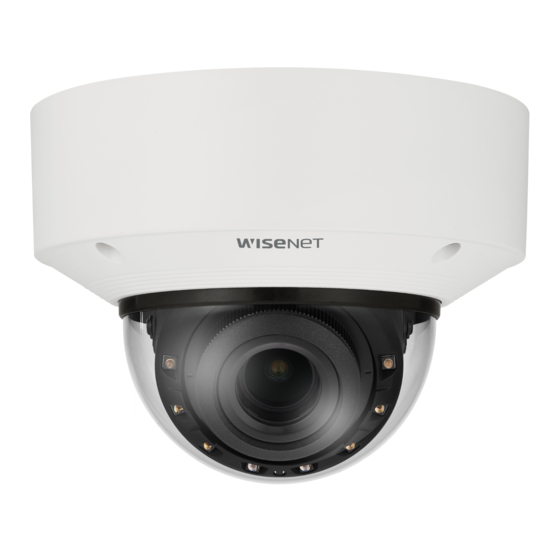

Wisenet XNV-C6083 User Manual
Hide thumbs Also See for XNV-C6083:

Advertisement

Quick Links

NETWORK CAMERA
User Manual
XNV-C6083

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNV-C6083 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wisenet XNV-C6083

  • Page 1 NETWORK CAMERA User Manual XNV-C6083...
  • Page 2 Network Camera User Manual Copyright ©2022 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 22. Although a rapid change in temperature could cause frost inside the dome, there will be no problem with the video. 23. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable 1.
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
  • Page 5: Table Of Contents

    CONTENTS OVERVIEW WEB VIEWER Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs Optional Accessories for Installation What’s Included At a Glance APPENDIX Troubleshooting INSTALLATION &...
  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)
  • Page 7: Optional Accessories For Installation

    Hanging Mount Backbox SBP-300LMW (Parapet Mount) SBP-156LMW (Parapet Mount) SBP-300CMW (Ceiling Mount) SBP-156CMW (Ceiling Mount) SBV-180WW SBP-300WMW (Wall Mount) XNV-C6083 SBP-167HMW SBV-180BW SBP-300WMW1 (Wall Mount) SBP-300NBW (Installation Box) SBP-300BW (Wall Mount Base) SBP-300PMW1 (Pole Mount) SBP-300KMW1 (Corner Mount) English _7...
  • Page 8: What's Included

    overview WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount-plate Camera-body Dome-cover Pipe-cover Audio/Alarm Lens cable port Reset button Micro USB port Use installation screws of at least M4, L30 for the installation of this product. Micro SD card slot Network Port...
  • Page 9: Installation & Connection

    installation & connection INSTALLATION 2. Use the provided Torx L wrench to turn the mount plate screws counterclockwise to release the camera body. Note that it is not necessary to loosen the screws completely. This camera is waterproof and in compliance with the IP66 / IP67 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 10 installation & connection Inserting a Micro SD card Removing a Micro SD card Slide the Micro SD card into the Micro SD card slot on the camera module in the direction of the arrow. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot.
  • Page 11 Installation (mount plate) When connecting the cable through the side, remove the wiring hole cover first before doing so. [Directly installing on wall/ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. 1-2. Fix the mount plate using appropriate screws. 1-3.
  • Page 12 installation & connection [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
  • Page 13 Installation (camera body) [Installing the network cable] (IP66) 2-1. Pull off the extruded part of the 1-hole cable bushing provided. Use a cable bushing compliant with the network cable to be connected. 2-2. Use the cap installer to pass through the RJ45 cable. Camera main: use a cable with the diameter of Ø5 to 6.5 Components: use a cable with the diameter of Ø5 to 8.5 Cap Installer...
  • Page 14 installation & connection [Installing audio/alarm cables] 5. Connect the network/power/audio/alarm cables to the terminal on the camera body. 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera body. 6. Adjust the lens to the desired direction with reference to “Adjusting the monitoring direction for the camera”...
  • Page 15 Assembling the dome cover Be careful not to alter the monitoring direction of your camera. [Directly installing on wall/ceiling] 7. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 Outdoor installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be...
  • Page 16: Adjusting The Monitoring Direction For The Camera

    installation & connection CONNECTING WITH OTHER DEVICE ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Tilt WiFi dongle PoE Device Lens rotation Power Ethernet ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. At this time, rotating the main body of the camera in the left and right direction is called PAN, and adjusting the angle of the camera is called TILT.
  • Page 17 If you want to connect an external device, you must turn off the external device before proceeding. 1. Install the Wisenet Installation application. Connect the set and the adapter power line first, and then connect the power cable to the outlet on the wall.
  • Page 18 installation & connection Connecting to Audio Input/Output ~ Audio Codec - Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate: 16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling Frequency: 16kHz) Speaker - Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz)
  • Page 19 Connecting to the I/O port box To connect to an external sensor Connect the Alarm I/O cable to the corresponding port of the port box. To use as an Alarm IN: Connect one of the [ALARM I/O] port and the other terminal to the [GND] port. Alarm In Wiring Diagram(example) Alarm cable External connection...
  • Page 20: Network Connection And Setup

    network connection and setup network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
  • Page 21: Using Device Manager

    USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Techwin website (http://www. ex) 192.168.1.2~254, 192.168.0.2~254, hanwha-security.com).
  • Page 22: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. XNV-C6083 - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.
  • Page 23: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.
  • Page 24: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. 24_ network connection and setup...
  • Page 25: Connecting To The Camera

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.
  • Page 26: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.
  • Page 27: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION Voice is not recorded even though When an Windows 10 user accesses ~ You must enable the <Audio In> check box in <Basic> - <Video Profile>. ~ This is what happens when microphone driver has been set to Realtek driver. audio input settings are configured.
  • Page 28 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
