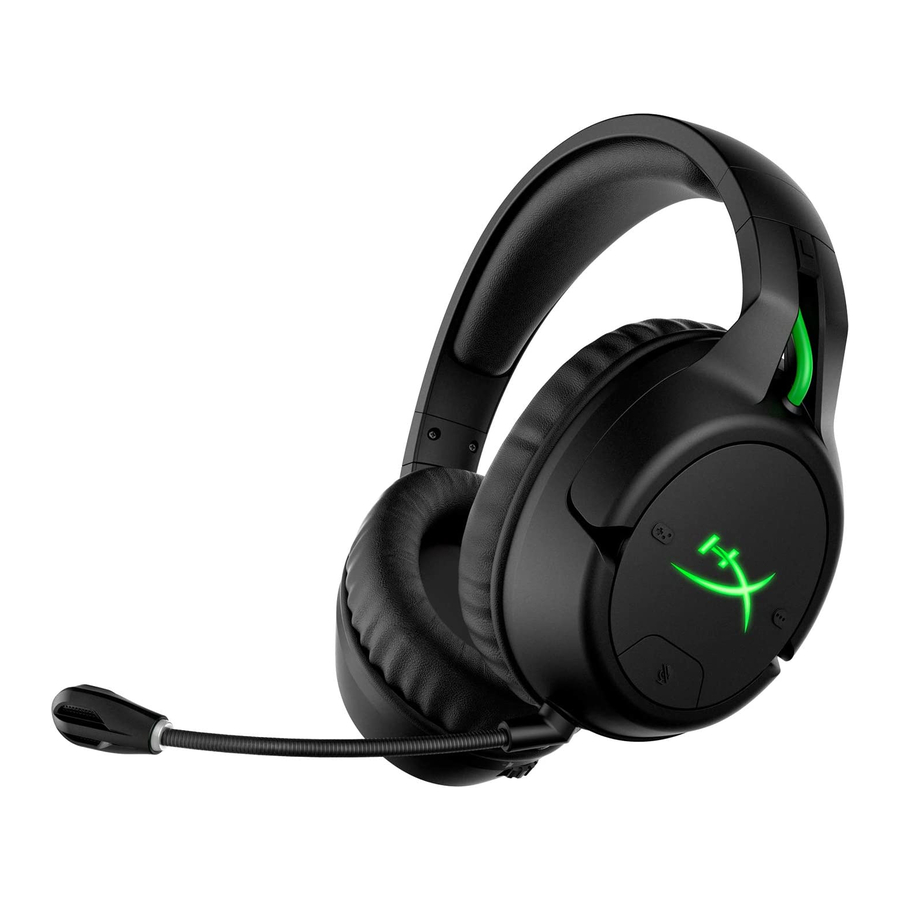

HyperX CloudX Flight HX-HSCFX-BK/WW Manual

1. Game balance button
2. Chat balance button
3. Microphone mute button
4. Ear cup LED
5. USB charge port
6. Power button
7. Microphone port
8. Volume wheel
9. Detachable microphone
10. Microphone mute LED
11. Wireless adapter
12. Wireless status light
13. USB charge cable

Usage

Using with Xbox One^®

1. Connect the wireless adapter to a USB port on the Xbox One^® system.
2. Power on the headset.
3. When the wireless adapter status light is solid, the headset is now connected to the adapter.
4. If logged in with an account, the Xbox One^® will assign the headset to that account and notify the user.

NOTE:
Connecting the headset to the Xbox One^® system does not automatically mute or adjust the sound from the TV.

Headset Controls

Power button

Hold the power button for 3 seconds to power on/off the headset.
With the headset powered on, short press the power button to cycle through the ear cup LED modes.
The supported LED modes are solid (default), breathing, and off.

Volume wheel

Rotate the volume wheel up or down to adjust the volume level.

Game/Chat balance buttons

Press the game/chat balance buttons to adjust mix between game audio and chat audio.

The game/chat balance functionality operates independently from the overall headset audio volume.

Microphone mute button
Press the microphone mute button to toggle the microphone mute. The microphone mute LED will indicate the current mute status.

Hold the microphone mute button for 3 seconds to turn mic monitoring on/off.

Headset Status Beep Tone Indicators

The headset will emit beep tones to indicate status for power, volume, game/chat balance, microphone mute, mic monitoring, and battery charge.

Headset Charging

When the headset is connected to a charger with the USB charge cable, the ear cup LEDs will indicate the charge status.

Manually Pairing Headset and Wireless Adapter

The headset and wireless adapter are already paired together for first time use. If manual pairing is necessary, follow the steps below to pair the headset and wireless adapter together.

1. Make sure the headset is powered off.
2. Plug the USB wireless adapter into the Xbox One^® system.
3. Use a small pin to press the small button on the back side of the USB wireless adapter for 3 seconds. The USB wireless adapter LED will be fast blinking.


4. With the headset turned off, press and hold the headset power button for 10 seconds to enter pairing mode. The headset earcup LEDs will blink rapidly.


5. When the USB wireless adapter LED turns solid and the headset ear cup LEDs have returned to their last used mode, the pairing process has been completed.

Specifications

Headphone

Driver: Dynamic, 50mm with neodymium magnets
Type: Circumaural, Closed back
Frequency response: 20Hz–20,000Hz
Impedance: 32 Ω
Sound pressure level: 113dBSPL/mW at 1kHz
T.H.D.: < 2%
Weight: 288g
Weight with mic: 298g
Cable length and type: USB charge cable (1m)

Microphone

Element: Electret condenser microphone
Polar pattern: Bi-directional, Noise-cancelling
Frequency response: 100Hz-10,000 Hz
Sensitivity: -51dBV (0dB=1V/Pa, 1kHz)

Battery life*

30 hours - LED off
18 hours - Breathing LED
13 hours - Solid LED

Wireless Range**

2.4 GHz
Up to 20 meters

*Tested at 50% headphone volume
**Wireless range may vary due to environmental conditions

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/headsets
