Versamatic Porta-Matic SPA153 Service & Operating Manual

SERVICE & OPERATING MANUAL
ORIGINAL INSTRUCTIONS
Porta-Matic Model SPA153
Model SPA15-BSP3

OPERATING INSTRUCTIONS

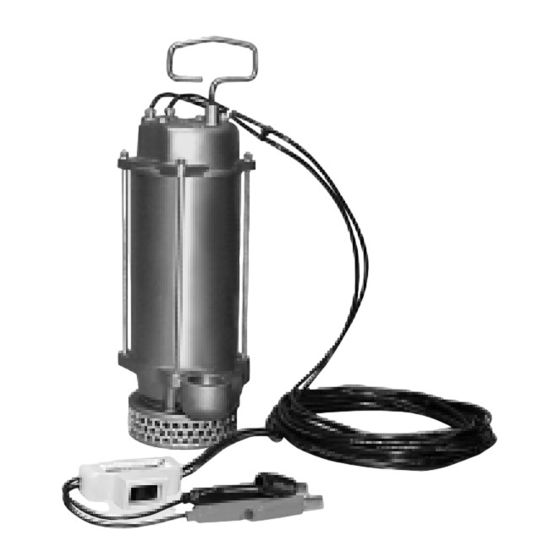

THE PUMP: This pump is a totally enclosed, submersible dewatering unit. It is
powered by a 1/3 HP, 12 volt DC 30 AMP motor. Battery clips on the power cord allow
easy connection to any 12 volt vehicle battery.
SWITCHING: The on-off switch is located on the power cord.

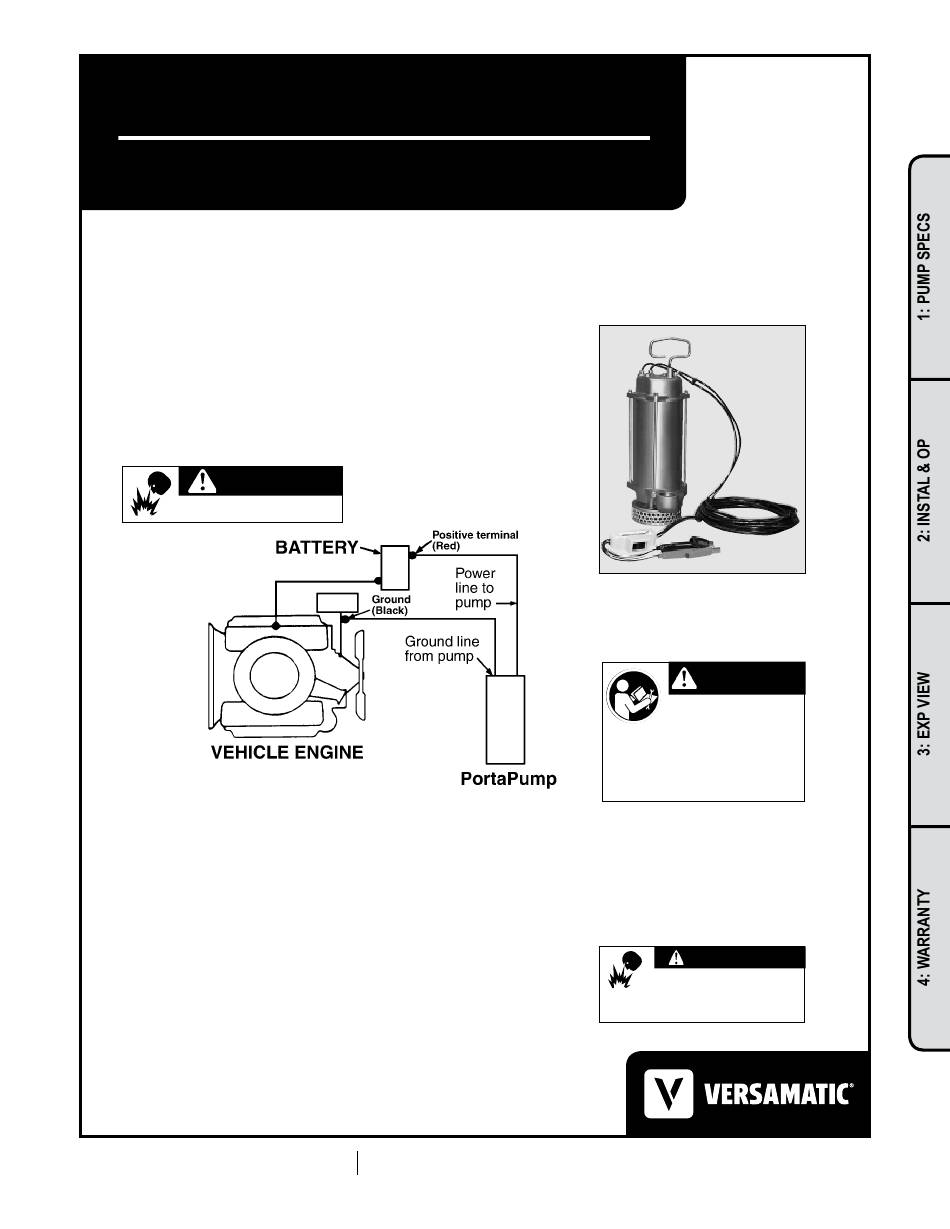

CONNECTING TO BATTERY: When connecting the clips to a battery, arcing is
eliminated by keeping the on-off switch in the "off" position. Connect the red battery
clamp to the positive (+) battery terminal. Connect the black battery clamp to ground:
preferably on the vehicle's engine to a solid, metallic, stationary point. The connection
should be at least 18 inches (480mm) from the battery.
DANGER
Turn off before connecting battery
clamps to battery. Arcing could result.
HOSE: Since the pump develops relatively low pressure, it is recommended
that non-collapsible hose be used for maximum pumping rates.
HOISTING & LOWERING: An eye at the top of the unit is provided for attaching
a line for hoisting or lowering. Do not use power cable for handling unit.
TO OPERATE: Lower unit into liquid to be pumped and activate switch. Pump
can be run for a few minutes without liquid, however, do not run completely dry for
extended periods. Damage to shaft seal may result.
RUNNING TIME: This unit draws about 30 amperes and can be operated about
1hour on a fully charged 55 AMP-hour battery and still permit starting of
vehicle under normal conditions. Caution should be used when running time
exceeds 30 or 40 minutes without engine running to recharge battery, particularly in
cold weather when battery efficiency is lowered. Battery size (AMP-hour rating) and
the use of other accessories such as lights and radios, etc., must be taken into
consideration for practical running periods without engine running.
OVERLOAD PROTECTION is provided by means of a 40 amp automatic reset
circuit breaker, located under top cover.
VERSA-MATIC PUMP, A unit of IDEX Corporation • 6017 Enterprise Drive • Export, PA 15632 USA • (724) 327-7867 Fax (724) 327-4300
520-377-000 Rev C 8/02
VERSAMATIC
®
Warren Rupp, Inc. • A Unit of IDEX Corporation
SERVICE AND OPERATING MANUAL
Porta-Matic Model SPA153
Model SPA15-BSP3
Model SPA15 and SPA15-BSP Design Level 3 Page 1
800 North Main Street, Mansfield, OH 44902 USA
Phone: (419) 526-7296 • www.versamatic.com
VM
IMPORTANT SAFETY
INFORMATION
IMPORTANT
Read these safety warnings
and instructions in this
manual completely, before
installation and start-up of the pump. It is
the responsibility of the purchaser to retain
this manual for reference. Failure to comply
with the recommendations stated in this
manual will damage the pump, and void
factory warranty.
1. Make sure the vehicle and the
pump are not in contact during
connection.
2. Do not use power cable for
handling unit.
3. Do not run completely dry for
extended periods. Damage to shaft
seal may result.
DANGER
DANGER: Not for use with fluids
that have a flash point below 100°
F (38° C) [examples: gasoline, alcohol.]
Sparking could result in death.
A C C E S S O R I E S
Warren Rupp, Inc. All rights reserved
© Copyright 2019
