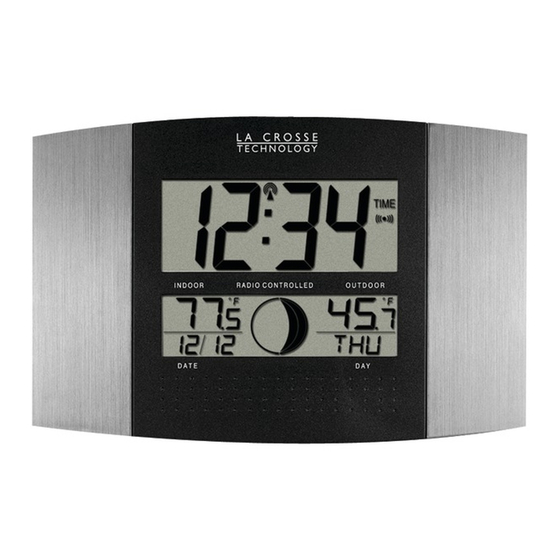

La Crosse Technology WS-8117U-AL Instruction Manual

ATOMIC CLOCK WITH OUTDOOR WIRELESS TEMPERATURE AND
MOON PHASE
Instruction Manual
FEATURES:
ATOMIC CLOCK:
LCD1
display
LCD2
display
• WWVB Radio controlled time with manual time setting
• 12/24 hour time display
• Time display: hour, minute, second
• Alarm setting with snooze function
• Calendar display
• Weekday display (3 languages to choose from: English, French and Spanish)
• Time zone setting
• Daylight savings time ON/OFF option (DST)
• ºC or ºF temperature display selectable
• Indoor temperature display
• Outdoor temperature display via 433MHz transmission
• Wall mount or freestanding
• Current moon phase display
WS-8117
Hanging holes
Function keys
Foldable stand
Battery cover
OUTDOOR TEMPERATURE TRANSMITTER:
• Remote transmission of outdoor temperature to the atomic clock by 433 MHz signals
• Wall mounting case
TO INSTALL AND REPLACE BATTERIES IN THE ATOMIC CLOCK
The atomic clock uses 2 x AA, 1.5V batteries. To install and replace the batteries, please follow the
steps below:
1. Insert finger or other solid object in the space at the bottom center of the battery compartment
and lift up to remove the cover.
2. Insert batteries observing the correct polarity (see marking inside battery compartment).
3. Replace compartment cover.
DO NOT SET THE CLOCK.
TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER
The transmitter uses 2 x AA,1.5V batteries. To install and replace the batteries, please follow the
steps below:
1. Remove the cover.
2. Insert the batteries, observing the correct polarity (see marking inside battery compartment).
3. Replace the battery cover on the unit.
Alkaline batteries are recommended for use in both units. Avoid using rechargable batteries.
Holder
