EC-05

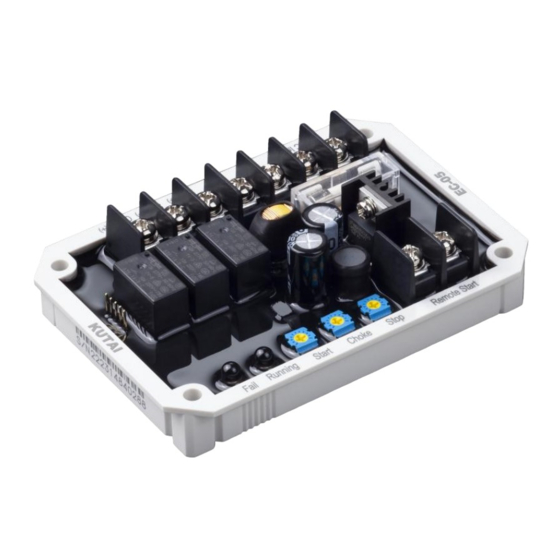

Auto Start Module for Gasoline Engine Generators
Operation Manual
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 806037, Taiwan
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kutai electronics EC-05
Summary of Contents for Kutai electronics EC-05
- Page 1 EC-05 Auto Start Module for Gasoline Engine Generators Operation Manual KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 806037, Taiwan...
- Page 2 SECTION 2 : PRODUCT OVERVIEW terminal. Terminal output is the battery (+) of The EC-05 Auto Start Module can accept signals from DC12V / 24V when the engine is cranking. a remote switch or an ATS to automatically start and stop a gasoline engine generator and obtain remote Stop Terminal ：...
- Page 3 Engine Start Failure indicator will illuminate, indicating that the engine has failed to start. SECTION 6 : APPEARANCE / DIMENSIONS / INSTALLATION DRAWING (mm) 75.0 [2.95"] M4 L30 59.0 [2.32"] [0.20"] 15.5 [0.61"] 107.0 91.0 [4.21"] [3.58"] 28.0 [1.10"] Unit : mm [inch] ___________________________________________________________________________________________ EC-05...
- Page 4 SECTION 7 : RECOMMENDED CONNECTIONS DIAGRAM EC-05 Start Choke Motor Solenoid Alternator Ignition Engine Coil Stop Spark Switch Plug Battery pulse Sensor ※ Use only fuses of the type and rating specified in this manual. ※ Appearance and specifications of all products are subject to change for improvement without prior notice.
