Summary of Contents for Kutai electronics ECU-04

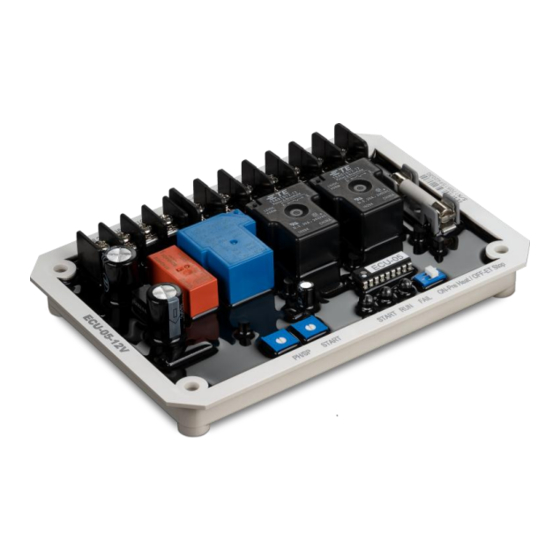

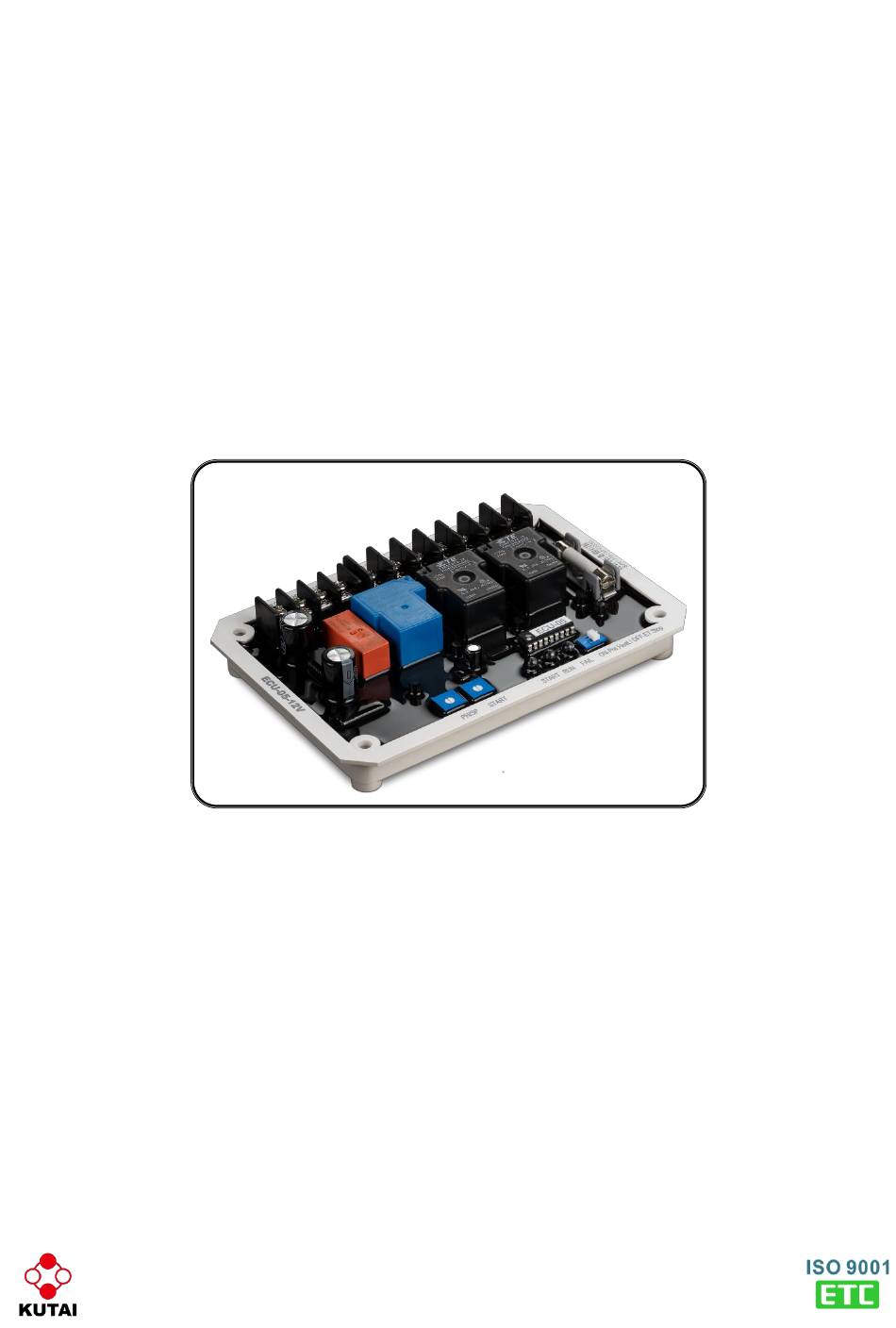

- Page 1 ECU-04 Ver1.0 Control Unit for Key Switch Type Generator KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 806037, Taiwan...
- Page 2 SECTION 1 : INTRODUCTION STANDARD FEATURES SECTION 2 : ● Small size, low cost, low power consumption and The ECU-04 Generator Auto Start Control, simply changes any manual key start generator to auto-start easy to install. by automatically mimicking the action taken by ●...
- Page 3 OFF for use on Gasline Engine with Carburetor guide. 4 8 seconds are recommended. ( Please refer to Figure 1 below ) ● L1：Remote start activated indicator LED. ( Please 162.0 138.0 Unit : mm Figure 1 ___________________________________________________________________________________________ ECU-04...
- Page 4 SW-OFF Generator To Carburetor Stop Key Switch Ignition & Accessories Accessories "ON" Start Strater "ON" Starter Aux. Dry Contact Open-When Engine Running Close-When Engine Stop Remote Start Switch Open-STOP Close-START AC Input from Generator From 100 to 240Vac ___________________________________________________________________________________________ ECU-04...
