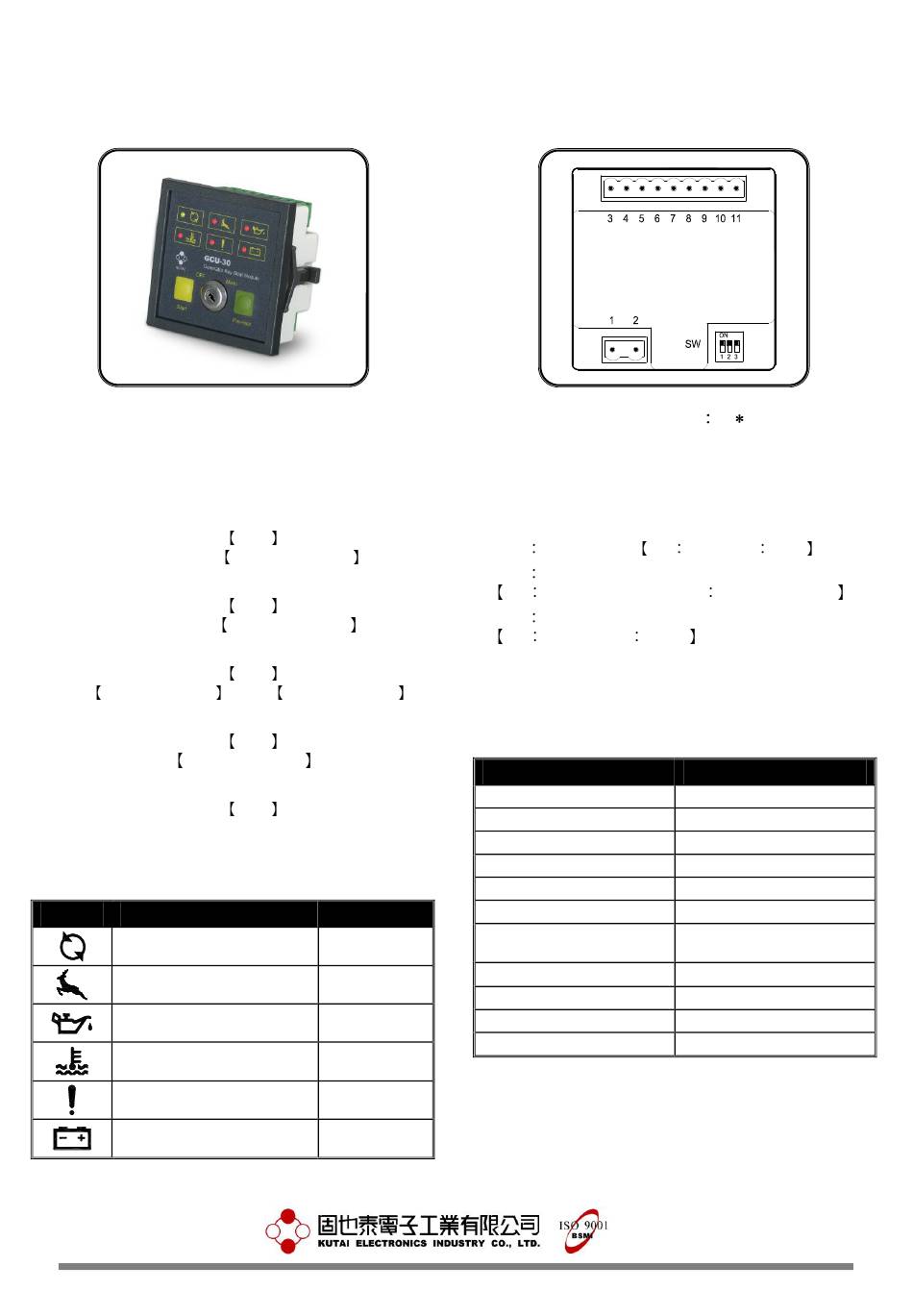

Kutai electronics GCU-30 Quick Start Manual

GCU-30
Manual Key Start Genset Control and
Protection Module
GCU-30 is a manual key start genset control and protection
module suitable for most available genset on the market.

System Protection

Description of each protection, condition and manners :
● High Engine Temperature Protection :
Failure confirmation delay 3sec
Temperature Switch type Normal Open NO.
● Low Oil Pressure Protection :
Failure confirmation delay 3sec
Oil Pressure Switch type Normal Close NC.
● Engine Over Speed Protection :
Failure confirmation delay 3sec
50Hz Activate @ 55Hz : 60Hz Activate @ 66Hz
● User Define Protection :
Failure confirmation delay 2sec
Input contact type Normal Open NO.
●
Charge Alternator Failure :
Failure confirmation delay 3sec
Warning activated when Charge voltage is below Battery
5VDC

Warning Icon Reference Table

ICON DESCRIPTION
Engine Running
Over-speed
Low Engine Oil Pressure
High Coolant
Temperature
Spare Shutdown
Charge Alternator Failure
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 80664, Taiwan
Tel : + 886-7-8121771

System Setting

GCU-30 is equipped with a 3P dip switch for system setting.
User should select the correct setting to comply with the
system specification
● SW 1 AC Frequency ON 50Hz OFF 60Hz
● SW 2 Engine Stop Mode
ON Energized to Start OFF Energized to Stop
● SW 3 Engine Stop Timer Delay
ON 20 sec OFF 10 sec
After wiring is completed, user should always check and
adjust the system setting accordingly to prevent engine from
failing to operate.

Specification

Rated DC Input Voltage
Rated AC Input Voltage
AC Frequency
Engine Stop Signal Output
Engine Start Signal Output
Preheat Signal Output
ACTION
Charge Motor Excitation
None
Signal Output
Operation Temperature
Shutdown
Relative Humidity
Rated Dissipation
Shutdown
Weight
Shutdown
Shutdown
Warning
Fax : + 886-7-8121775

Rear Panel Layout

Suggested Panel Opening 66 66 ± 0.5 mm
ITEM
9.0 to 36 V
5 ~ 300VAC
50/60 Hz
1.2 Amp @ 12/24VDC
1.2 Amp @ 12/24VDC
1.2 Amp @ 12/24VDC
12/24VDC
-20 C to 60 C
90% or Below
Under 3W
101 g ± 2%
URL : http://www.kutai.com.tw
DESCRIPTION
