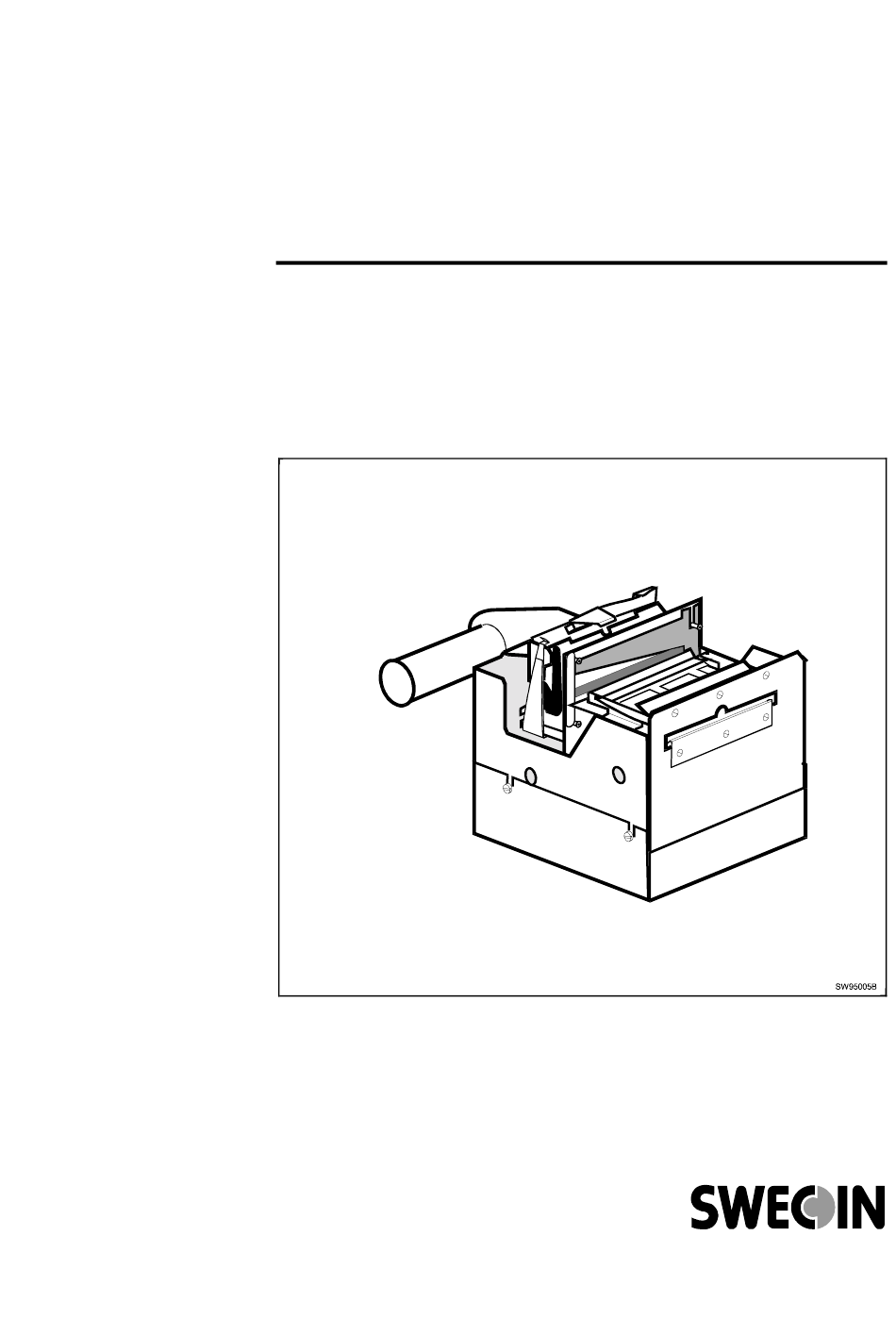

- Page 1 TTP 5250 Kiosk Printer Evaluation Kit Getting Started Publ. No 01451-000 D...
- Page 2 Swecoin AB disclaims any liability resulting from the use of this information and reserves the right to make changes without notice.
-
Page 3: Table Of Contents
6.1 Normal mode ....................10 6.2 Hex dump mode ..................10 6.3 Using the TTP Editor..................10 6.4 Printing under Windows ................11 7 FAULT FINDING......................11 8 PAPER JAM REMOVAL....................11 0110 TTP 5250 Kiosk Printer Evaluation Kit – Getting Started... -
Page 4: Introduction
INTRODUCTION This manual describes how to install and set up the equipment contained in the TTP 5250 Kiosk Printer Evaluation Kit. The following TTP 5250 printer evaluation-kits are available: TTP 5250 Evaluation Kit (basic printer configuration) • 01384-060 60 mm paper width •... -
Page 5: Unpacking
Parallel interface adapter cable, L=230 mm 00601-000 Serial interface adapter cable, L=200 mm 00602-200 Serial RS232 cable 1.5m 10825-000 TTP 5250 Evaluation Kit — Getting Started, this manual 01451-000 TTP 5250 Technical Specification 01441-000 TTP 5250 Installation Manual 01436-000 TTP 5250 Operating Instructions... -
Page 6: Product Presentation
PRODUCT PRESENTATION Figure 1. Printer exterior Figure 2. Power supply unit TTP 5250 Kiosk Printer Evaluation Kit – Getting Started 0110... -
Page 7: Installation Considerations
Additional space is required for paper replenishment and paper jam removal. Consider mounting the printer on a movable platform so that the printer can be maintained outside the printer enclosure. 0110 TTP 5250 Kiosk Printer Evaluation Kit – Getting Started... -
Page 8: Printer Preparation
Connect power cables Connect the power supply unit at the back of the printer (see figure 3). Figure 3. Connectors at the back of the TTP 5250 Connect the power supply unit to a live wall outlet. Switch ON the power supply unit. Both the green and the red power indicator should light up. -
Page 9: Install Paper Roll
Insert the edge of the paper into the back of the print module. The paper should pass beneath a plastic bar (see arrow). Figure 5. Feed the paper into the printer 0110 TTP 5250 Kiosk Printer Evaluation Kit – Getting Started... - Page 10 An alternative way of loading the paper is to feed it manually, with the paper release lever down, until the paper becomes visible in the presenter module. Then raise the paper release lever and press the paper-feed button. Figure 6. Perform cut and eject TTP 5250 Kiosk Printer Evaluation Kit – Getting Started 0110...
-
Page 11: Test The Printer
NOTE! — If the serial interface is used, the communication parameters in the host computer should be set to: 9600 baud 8 data bits 1 stop bit No parity These settings are the factory installed default values. Switch ON the power supply unit. 0110 TTP 5250 Kiosk Printer Evaluation Kit – Getting Started... -
Page 12: Operating The Printer On-Line
If a PC is used as host, you can install the TTP Editor (MS Windows program) from the enclosed diskette and operate the printer using a number of command string examples as a basis. The on-line help contains all commands with explanations, it is most helpful. TTP 5250 Kiosk Printer Evaluation Kit – Getting Started 0110... -
Page 13: Printing Under Windows
• Paper size, layout, and margins are correctly set in the application program. FAULT FINDING Refer to the enclosed Operating Instructions. PAPER JAM REMOVAL Refer to the enclosed Operating Instructions. 0110 TTP 5250 Kiosk Printer Evaluation Kit – Getting Started... - Page 14 This page intentionally left blank. TTP 5250 Kiosk Printer Evaluation Kit – Getting Started 0110...
