Swecoin TTP 5000 Series Service Manual

Hide thumbs Also See for TTP 5000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
TTP 5000 Series
Kiosk Printer Sub-system
Service Manual
Publ. No. 38-1151-00, Ed. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTP 5000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swecoin TTP 5000 Series

Summary of Contents for Swecoin TTP 5000 Series

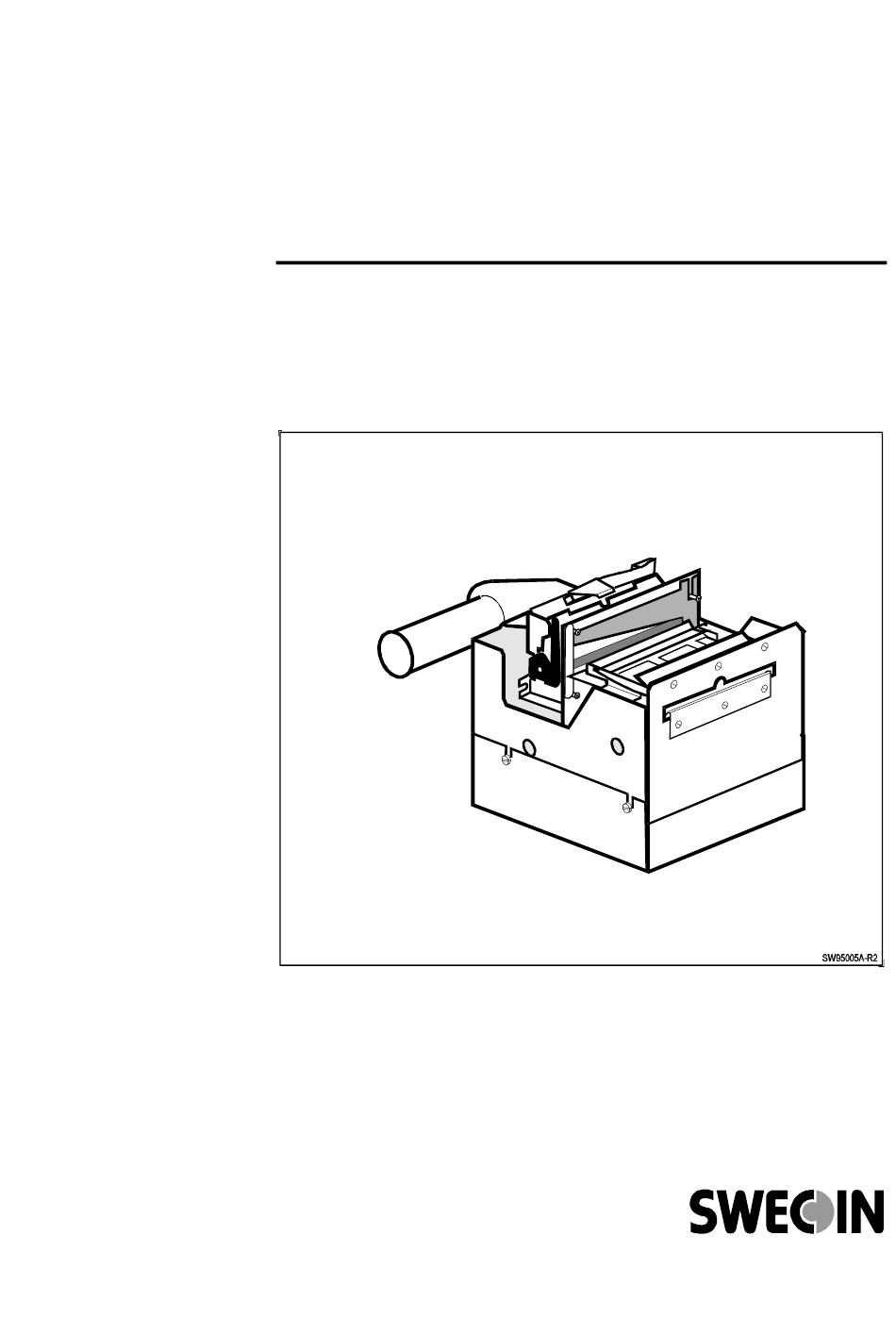

  • Page 1 TTP 5000 Series Kiosk Printer Sub-system Service Manual Publ. No. 38-1151-00, Ed. B...
  • Page 2 Swecoin Promakon AB disclaims any liability resulting from the use of this information and reserves the right to make changes without notice.

  • Page 3: Table Of Contents

    3.2.11 Presenter module..............21 3.2.12 Printhead .................. 23 4 SPARE PARTS ......................24 4.1 Printer complete ..................25 4.2 Cutter module ..................28 4.3 Presenter module ..................30 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 4 5 DRAWINGS ......................33 5.1.1 TTP 5000 control board SWC 492-000........35 5.1.2 TTP 5100 control board 728-001, -002, and -003 ......47 TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 5: Introduction

    INTRODUCTION About this manual This manual describes the Swecoin TTP 5000 Series kiosk printers, their function, maintenance instructions, spare parts, etc. Updating This manual will be updated from time to time as printer functions and features are added or amended. No automatic distribution of new editions is, however, planned.
  • Page 6 Data comm. connectors Ribbon cable-type connectors. Standard DIN and Amphenol connectors available through the use of adapter cables. Backward compatibility Fully backward compatible if the applicable firmware is downloaded. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 7 The 256 Kbyte RAM size, used as a page buffer, allows full landscape printing. A unique, Swecoin patented, feature of the TTP 5000 Series printers is that they can retain the document inside until both the printing and the cut-off operations are completed.
  • Page 8 Figure 1. Basic TTP 5XXX printer Currently available options are shown in Figure 2. Figure 2 . TTP 5000 Series options TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 9: Functional Description

    Figure 3. Printer design The printer has three motors controlled by the application software. All sensors are reflector-type opto-sensors except the printhead-up sensor that is a micro switch. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 10: Paper Handling

    If the light does not return before this number of motor steps has been effected, this will be interpreted as paper end. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 11: Paper Near-End Detection

    Paper jam error will also be signaled if the presenter sensor detects paper in unexpected situations. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 12: Cutting

    CAUTION! — if the printer is not going to be used for a week or more, disengage the printhead from the platen by lowering the paper release lever. Both the printhead and the platen can otherwise be deformed. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 13: Electronics

    (SWC-651-000) that should be mounted on top of the control board when this type of interface is required. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 14 ACK/NAK + error code Parity No parity No. of data bits No. of stop bits No. of start bits NOTE! — Changing any of these settings requires another EPROM version. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 15: Power Supply

    Current consumption during character printing is 2 A average, and 6 A at peaks. The consumption during all-black, and dense, printing is 6 A average and 10 A at peaks. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 16: Maintenance

    • Check that the printer is properly connected to protective earth. This is to prevent earth currents between printer and host, but also to prevent electro-static discharges. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 17 Use the following procedure to set the printer in HEX dump mode: 1. Switch OFF the printer. 2. Lower the paper release lever. 3. Keep the form feed button depressed while you switch the printer ON again. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 18: Parts Removal And Replacement

    3. Lift the upper module slightly and disconnect cables as required from the connector board so that you can place the upper module on its front panel in front of the bottom module. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 19: Ttp 5000 Control Board Swc 492-000

    TTP 5000 parallel interface board SWC 561-000 1. Remove the control board. See Section 3.2.3 on page 16. 2. Separate the parallel interface board from the control board. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 20: Ttp 5100 Control Board Swc 728-001

    2. It may be necessary to download the correct firmware version and/or user defined set- up menu after the board replacement. See TTP 5200/5250 Installation Manual for detailed information on how to do this. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 21: Print Module

    Figure 5. Loosening the print and cutter module assembly 4. Remove the print and cutter module assembly. 5. Separate the print module from the cutter module. See Figure 6 and Fel! Hittar inte referenskälla.. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 22 A too big distance might cause the paper running down between the cutter and the presenter modules. Figure 7. Adjusting the distance between presenter motor and cutting knife TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 23: Presenter Module

    5. Put the upper chassis module back to normal position and remove the two upper screws at the front of the upper chassis module. Figure 9. Loosening the presenter module 6. Remove the presenter module. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 24 If necessary, adjust by loosening the fixing screws of the print and cutter module assembly. A too big distance might cause the paper running down between the cutter and presenter modules. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 25: Printhead

    7. Slide the printhead gently out backwards. REPLACEMENT Assemble the printer in the reverse order. See page 34 (TTP 5100) or page 44 (TTP 5000) for correct connector positions. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 26: Spare Parts

    SPARE PARTS Items coded SP are standard spare parts. Uncoded items are supplied on special request only. Other price and delivery conditions may apply for uncoded items. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...

  • Page 27: Printer Complete

    — 9101-218 9101-218 9101-218 Screw MFX-H 3 x 4 601-000 601-000 601-000 Parallel interface adapter L=230 mm cable 602-200 602-200 602-200 Serial interface adapter L=200 mm cable Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 28 2250-001-B Paper roll support — 765-000 765-000 765-000 Spacer — 9101-222 9101-222 9101-222 Screw MFX-H 3X8 — 736-060 736-080 736-112 Roll support shaft — — 515-000 515-000 TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 29 — — — — Insulating shim, silica TTP 5250/112 only — — 875-000 Spacer TTP 5250/112 only Note 1 Not used on printers with movable print module. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 30: Cutter Module

    Cutter module TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 31 9100-199 - Screw MRX-H 2.5x16 — 9100-189 9100-189 9100-189 - Screw MRX-H 2.5 x 4 556-000 556-000 556-000 - Leaf spring 551-060 551-080 551-112 - Cutting plate Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...

  • Page 32: Presenter Module

    Presenter module TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 33 - Screw MRX 2.5 x 5 — 475-060 475-080 475-112 - Mounting bracket — 542-000 542-000 542-000 - DC-motor assy 544-060 544-080 544-112 - Feed roll assy Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 34 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 35 Component layout ....................47 SWC 728-001, logic diagram, sheet 1—3 ..............49 SWC 728-002, logic diagram, sheet 1—3 ..............55 SWC 728-003, logic diagram, sheet 1—3 ..............55 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 36 TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 37 Parallel interface board cutter-home sensor Motor, presenter module Parallel interface board TOF / paper end sensor DIP switches (see page 17) Presenter control sensor EPROM Paper-low sensor Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 38 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 39 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 40 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 41 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 42 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 43 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 44 TTP 5000 Parallel Interface Board SWC 561-000, component layout TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 45 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 46 TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 47 Motor, print module Not used Motor, cutter module Parallel interface cutter-home sensor Motor, presenter module Not used Head-up sensor Paper-low sensor Form-feed switch EPROM or flash PROM Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 48 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 49 5.1.2 TTP 5100 control board 728-001, -002, and -003 U9 is not mounted on 728-001 and -002. J16 (2-pole power connector) is not mounted. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 50 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 51 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 52 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 53 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 54 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 55 Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 56 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 57 • RAM capsule U5 (sheet 1, drawing pos. 2D) is installed. • 5 VDC voltage regulator U9 (sheet 3, drawing pos. 3B) is installed • Capacitor C66 (sheet 3, drawing pos. 3A) is not installed. Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 58 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
  • Page 59 Please return by mail to: or by fax to: Swecoin Promakon AB Int.: +46 8 96 50 54 Box 132 Nat.: 08 96 50 54 SE-191 22 SOLLENTUNA Sweden Edition B, May 97 TTP 5000 Series Kiosk Printer Sub-system — Service Manual...
  • Page 60 This page intentionally left blank. TTP 5000 Series Kiosk Printer Sub-system — Service Manual Edition B, May 97...
