Build Guide – CR10 Y (Bed) ExoSlide Motion Kit
3/10/20
www.exoslide.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR10 Y and is the answer not in the manual?

Questions and answers

Related Manuals for ExoSlide CR10 Y

Summary of Contents for ExoSlide CR10 Y

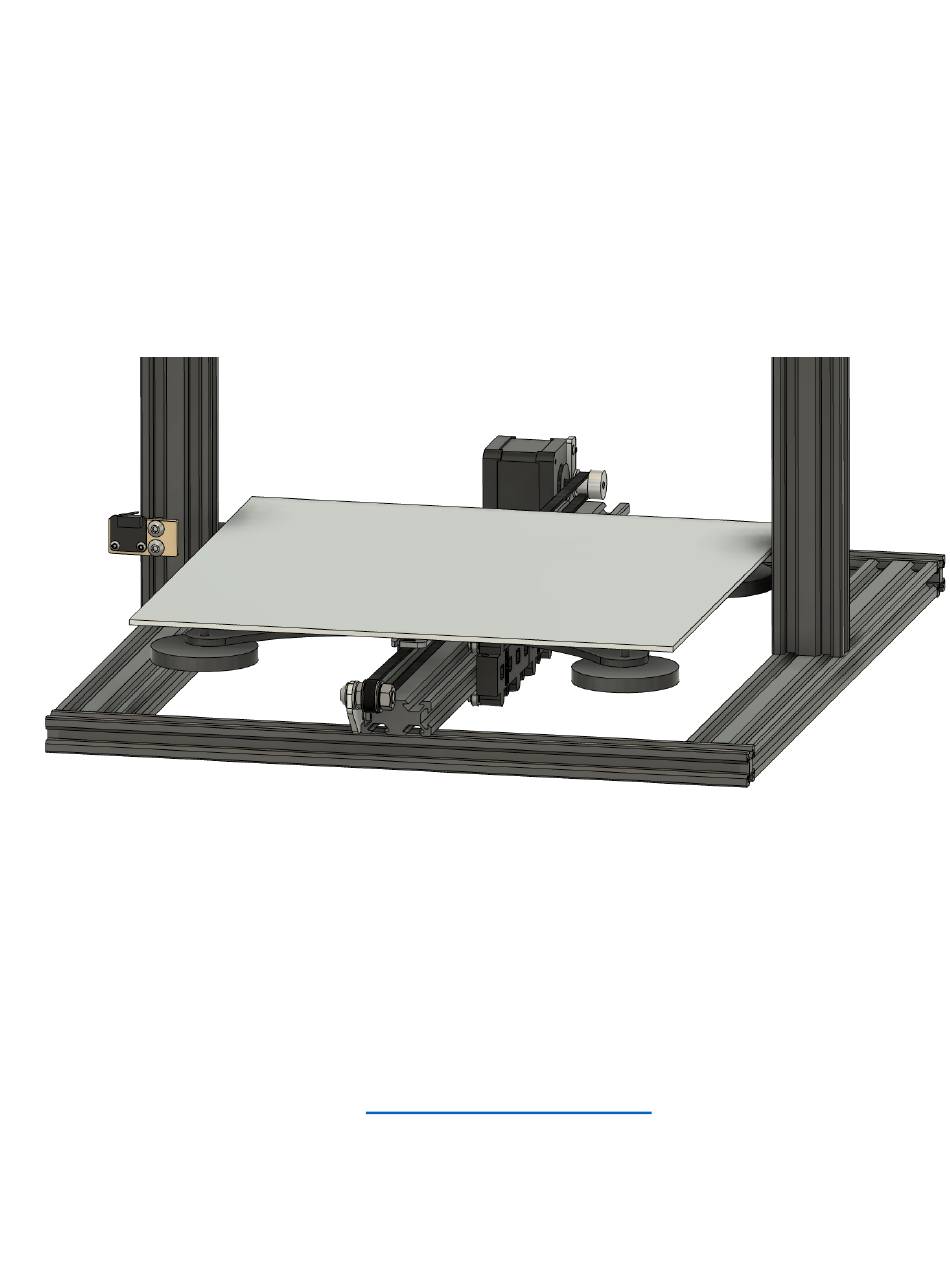

  • Page 1 Build Guide – CR10 Y (Bed) ExoSlide Motion Kit 3/10/20 www.exoslide.com...
  • Page 2 0. Parts removal and prep: -Remove the front Y belt Idler and bracket -Remove the rear Y belt motor and bracket – set aside the motor to re-use -Remove the rear Y endstop -Remove the Z endstop -Loosen all the bed hand adjusters, and remove the heated bed plate – set aside to re-use -Loosen the V-wheels, and remove the bed carrier plate –...
  • Page 3 2. ExoSlides Install: Parts Needed: ExoSlide 20P, 3x ExoSlide 40P, 2x M4x40 bolt, 4x M4x60 bolt, 4x Notes: -Ensure the orientation of the top slide is as shown (the front of the machine is on the left).
  • Page 4 3. Motor Bracket Assembly: Parts Needed: Motor bracket, 1x M3x6 bolt, 3x M5x8 bolt, 2x M5 T nut, 2x Re-use: Motor, pulley 4. Idler Bracket Assembly: Parts Needed: Idler bracket, 1x MF688 bearings, 2x M5x8 bolt, 2x M5 T nut, 2x M8x25 bolt, 1x M8 nut, 1x M8 jam nut, 1x...
  • Page 5 6. Gantry Assembly: Parts Needed: ExoSlide assembly, 1x Motor bracket assembly, 1x Idler bracket assembly, 1x Endstop Y assembly, 1x Endstop Z assembly, 1x Notes: -The Y endstop should be snug against the 2020 extrusion. -The motor assembly should be mounted as shown, with the motor even with the outside of the...
  • Page 6 7. Bed Plate Assembly: Parts Needed: Bed mount bracket, 1x M4x14 flat head bolt, 4x M4x8 bolt, 4x M4 fender washer, 4x Re-use: Bed plate A: Mounting when only Y ExoSlide kit installed B: Mounting with both Y and XZ Exoslide kits...
  • Page 7 Notes: -Install the bed plate using M4x8 bolts with fender washers. -Install the Y belt. 8. Motion Assembly: Re-use: Heated bed assembly Notes: -Install and level the bed. -Make cool stuff!
  • Page 8 ExoSlide CR10(S) Y Bed Motion Kit BOM:  ExoSlide 20P, 3x  ExoSlide 40P, 2x  Aluminum motor bracket, 1x  Aluminum idler bracket, 1x  Aluminum bed bracket, 1x  Printed Y end-stop bracket, 1x  Printed Z end-stop bracket, 1x ...
