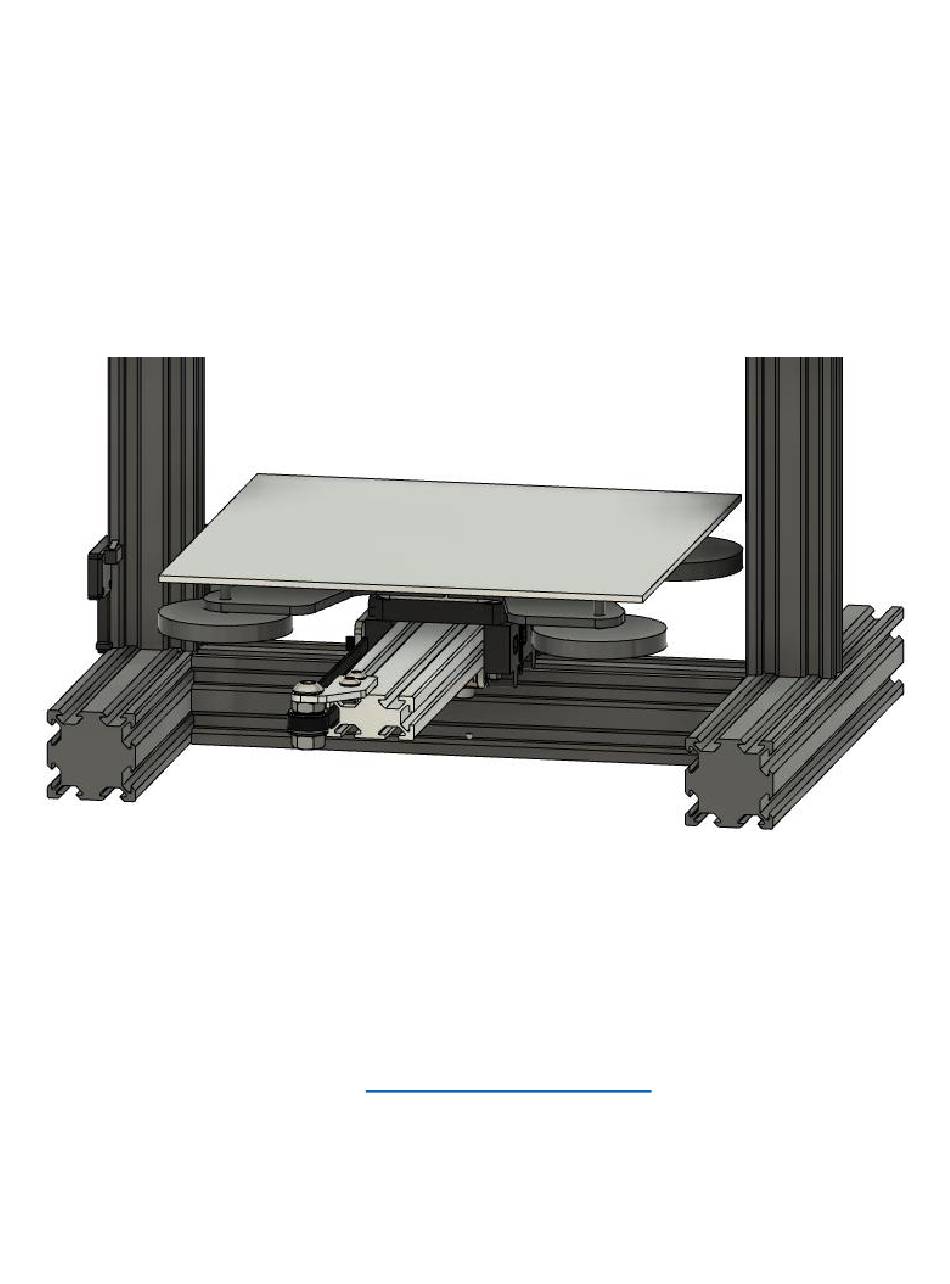

- Page 1 Build Guide - Ender 3 Y (Bed) ExoSlide Motion Kit 1/18/20 www.exoslide.com...
- Page 2 0. Parts removal and prep: -Remove the front Y belt Idler and bracket -Remove the rear Y belt motor and bracket – set aside the motor to re-use -Remove the rear Y endstop – set aside to re-use -Loosen all the bed hand adjusters, and remove the heated bed plate – set aside to re-use -Loosen the V-wheels, and remove the bed carrier plate –...
- Page 3 2. Carriage Assembly: Parts Needed: ExoSlide 20P, 2x ExoSlide 40P, 1x Belt Y Bracket, 1x M4x18 bolt, 2x M4x30 bolt, 2x M4x35 bolt, 2x M4x60 bolt, 2x M4 nylock nut, 2x Notes: -Tighten the six M4 bolts down firmly that secure the three ExoSlides together.
- Page 4 XY ExoSlide kit as well) Notes: -Install the carriage assembly first, then the other assemblies. -Tension the belt with the idler assembly. -If only installing the Y ExoSlide kit, install the printed end-stop bracket (to clear bed plate of the next step)
- Page 5 6. Bed Plate Assembly: Parts Needed: Bed mount bracket, 1x M4x14 flat head bolt, 4x M4x8 bolt, 4x M4 fender washer, 4x Re-use: Bed plate A: Mounting when only Y ExoSlide kit installed B: Mounting with both Y and XZ Exoslide kits...
- Page 6 Notes: -Install the bed mount bracket on the top ExoSlide with then four M4x14 flat head bolts. -Install the bed plate using M4x8 bolts with fender washers. 7. Motion Assembly: Re-use: Heated bed assembly Notes: -Install and level the bed.
