- Page 1 TEMPRA User Manual ENGLISH VALID FOR THE FOLLOWING MODELS TBL 100 TBL 100 F TBL 120 TBL 120 F TBL 150 TBL 150 F...
- Page 2 INSTRUCTIONS FOR THE PROPER DISPOSAL This electronic device is subject to the European Directive 2012/19/EU. according to the local waste disposal rules, do not dispose of old products with normal household waste. The proper disposal of products that can no longer be used prevents potential negative consequences for the environment and for the population.
- Page 3 INDEX 1. safety instructions 2. Package contents 3. DESCRIPTION 4. structure 5. Installation 6. Tempra batteries Parallel 7. Wiring and fuses 8. N-bus Network and Controllers 9. n-BUS / Ci-bus selection 10.Master and slave 11.Bus power supply 12.Feeding Tempra 13.OPERATION 14.Charge 15.Discharge 16.BLUETOOTH...
-
Page 4: Safety Instructions
• The information contained in this manual may be changed without notice. NDS Energy s.r.l. reserves the right to make changes and improvements to the product at any time without notice and without obligation to apply these changes to the devices... - Page 5 • Product images are purely indicative and may therefore not be fully representative of the characteristics of the product, differing in colour, size or accessories. Symbol Meaning Pay attention Comply with battery operating temperatures Do not install and use the device in very humid environments, in direct contact with splashes of water, liquids or atmospheric agents Do not expose to fire or heat sources...
-
Page 6: Package Contents

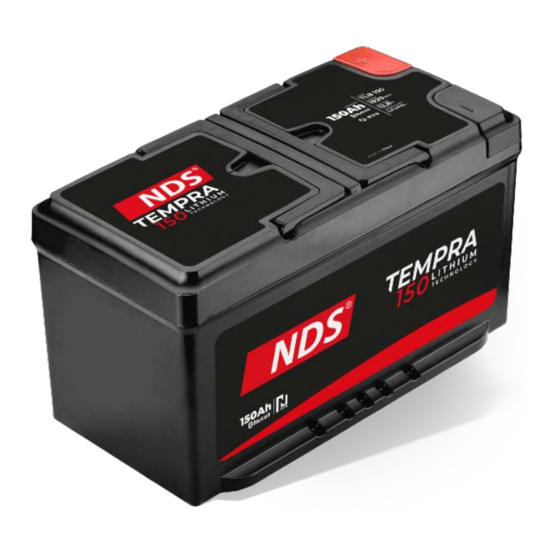

The TEMPRA battery with N-BUS system has an excellent power-to-weight ratio thanks to the new cells NDS HDP (high density power): a concentrate of power in a minimum space! Up to 150Ah capacity in the size of a classic L5 box. - Page 7 Due to the N-BUS protocol, the TEMPRA battery is an integral part of the NDS energy ecosystem and you can control all your devices (with N-BUS) with a single display, such as the DTB 01 Display Bus (optional) or the NDS Mobile App available for iOS and Android.
- Page 8 STRUCTURE The battery has 2 terminals (negative and positive) with threaded hole and 1 Multicolour LED indicator on top. On the side, there's a "Setup and connections" compartment to make the settings for battery operation, to connect it to the N-BUS network and to connect the DTB01 touch screen display (optional).
- Page 9 You can install automotive poles with an M8 screw, or use a bolt in case you want to use eyelet connectors. CONNECTION COMPARTMENT Fig.2 REFERENCE FUNCTION Green connector (not used) Red connector (not used) ON/OFF Button N-BUS_1 connection for Display or other N_BUS device N-BUS_2 connection for Display or other N_BUS device...
-
Page 10: Installation
TEMPRA. Don’t use: different brand, different lithium technology, different capacity or voltage). • Do not connect TEMPRA lithium batteries in series. • Use only NDS TEMPRA batteries for parallel connection, do not use batteries of other technology Lithium or Lead/Acid batteries (AGM, Gel, Flooded). - Page 11 The connection cable between several N-BUS devices is a 6- pole (straight through) cable with RJ11 6C/6P connectors at both ends. It is possible to buy a pre-assembled NDS cable available in different models and lengths BC 03M (3m), BC 06M (6m) and BC 10M (10m).
-
Page 12: Wiring And Fuses
7. WIRING AND FUSES In order to properly dimension wiring and fuses, an analysis of distances and loads must be carried out. It is not possible to provide a unique figure valid for every installation, the following examples are purely indicative. - Page 13 8. N-BUS NETWORK AND CONTROLLERS N-BUS devices can be networked for optimal operation of the entire NDS energy system. To start setting up your new energy system, simply connect two or more N-BUS devices with the optional data cable, available in v a r i o u s l e n g t h s ( B C0 3 M , B C0 6 M o r B C 1 0 M ) .
-
Page 14: Master And Slave
9. N-BUS / CI-BUS SELECTION TEMPRA battery supports both the native N-BUS protocol and the Ci-BUS protocol, shared with other manufacturers. Act on Dip-Switch No.1 to set the desired protocol. In the case of Ci-BUS selection, it is also necessary to move the Dip-Switch No. 4. N-BUS setup (default) Ci-BUS setup CAUTION... -
Page 15: Bus Power Supply
11.BUS POWER SUPPLY This Dip Switch allows the BUS (N-BUS and Ci-BUS) to be powered on and off. Switching off the Bus means switching off all connected devices, such as the DTB01 display. BUS ON (default) BUS OFF NOTE Even if the battery is powered off and the connections to its poles are disconnected, the BUS power line remains powered. -
Page 16: Operation
• ON/OFF Button (Fig.2 - Ref. G). • Display NDS DTB01 button. • NDS ENERGY APP Mobile button (per iOS e Android) • Dip switch (Fig. 2 - Ref. L) selector No. 6 “ON/OFF” SWITCH-OFF WITH ON/OFF BUTTON (Fig.2 - Ref. G) - Page 17 Release the button. The battery will be switched off. SWITCH OFF WITH NDS DTB01 DISPLAY Press and hold the button on the side of the NDS DTB01 display until the message "Shutdown..." is displayed. Release the button. The battery will turn off after a few seconds, and Bluetooth will stay active with no voltage at the poles.
- Page 18 SWITCH OFF VIA BUTTON ON APP STEP 1 Tap on the Menu icon in the top right-hand corner. STEP 2 Tap on the Bluetooth icon.
- Page 19 STEP 3 Tap on the Battery icon. The Tempra battery will switch off after a few seconds, and Bluetooth will stay active. DIP SWITCH DEACTIVATION (Fig. 2 - Ref. L) Complete deactivation of the battery by means of a Dip Switch is recommended in the case of long-term storage (more than 3 months) or if you do not have a Bluetooth device connected to the battery.
- Page 20 14.CHARGE For optimal management, it is recommended to use a charger that performs a CV/CC charging curve and respects the parameters in the table below Max Recommended Model Max voltage Current continuous charge TLB 100 / TLB 100F 14.4V±0.1V TLB 120 / TLB 120F 14.4V±0.1V TLB 150 / TLB 150F 14.4V±0.1V...
- Page 21 Min. Charging Max. Charging Model temperature temperature TLB 100 -10°C +45°C TLB 100F -30°C +45°C TLB 120 -10°C +45°C TLB 120F -30°C +45°C TLB 150 -10°C +45°C TLB 150F -30°C +45°C When the battery is being charged at temperatures below 0°C, the cell heating system (for models with an "F") is activated.
- Page 22 5.0 low power consumption, which allows you to view information and control not only the TEMPRA battery, but also all other NDS devices in the N-BUS network from a single display. To connect to the battery, you need a Bluetooth BLE- compatible smartphone (version 4.2 and above) and...
-
Page 23: Led Indicator
17.LED INDICATOR Here is the meaning of the LED indicator on the side of the battery (Fig. 1 - Ref. C): • Green LED Steady: battery is starting up. Voltage on poles not present. • Green LED flashing: battery active. Voltage on poles present. - Page 24 In the event of a persistent fault, contact an authorized NDS dealer. The alarm is automatically reset by the battery, however, it may persist for some time (from a few seconds to several minutes) depending on the anomaly detected.
- Page 25 with a voltage of one or more cells below the safety limit, the battery will switch off after approx. 10 seconds. it is possible to reactivate the battery by following the procedure below: a. Connect a charger to the battery poles and switch it b.
- Page 26 On the BUS display (DTB 01) and on the mobile app, the following notification appears: "Battery voltage low". If on the NDS display (DTB 01) and on the APP, the notification 'Battery Fault' appears, the alarm is not reset, you must contact service.
-
Page 27: Technical Features
19.TECHNICAL FEATURES Model TLB100 TLB100F TLB120 TLB120F TLB150 TLB150F Nominal 12,8Vdc 12,8Vdc 12,8Vdc 12,8Vdc 12,8Vdc 12,8Vdc voltage Nominal capacity 100Ah 100Ah 120Ah 120Ah 150Ah 150Ah 25°C Nominal 1280Wh 1280Wh 1536Wh 1536Wh 1920Wh 1920Wh energy 25°C Number of series cells Technology LiFePO LiFePO LiFePO... - Page 28 End-of- 14.4V± 14.4V± 14.4V± 14.4V± 14.4V± 14.4V± charging 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V voltage Number of cycles 80% 3500* 3500* 3500* 3500* 3500* 3500* Discharge working -20°C/ -20°C/ -20°C/ -20°C/ -20°C/ -20°C/ temperatur +60°C +60°C +60°C +60°C +60°C +60°C Operating temperatur -10°C/...
- Page 29 DECLARATION OF CONFORMITY - TEMPRA LITHIUM BATTERY Company: NDS ENERGY S.R.L. Address: Via giovanni pascoli 65010 - cappelle sul tavo (PE) Italy Declares under its own responsibility that the product: Commercial Name: BATTERIA LIFEPO TEMPRA Models: TLB100, TLB100F, TLB120, TLB120F, TLB150, TLB150F...
-
Page 30: Warranty
20.WARRANTY... - Page 32 0050_MANS_TLBBatt_GB02 NDS ENERGY s.r.l. Via Pascoli, 96/98 65010 Cappelle sul Tavo (Pe) Italy Tel.:+39 085 4470396 web: www.ndsenergy.it email: customer@ndsenergy.it LIKE US: facebook.com/ndsenergysrl...
