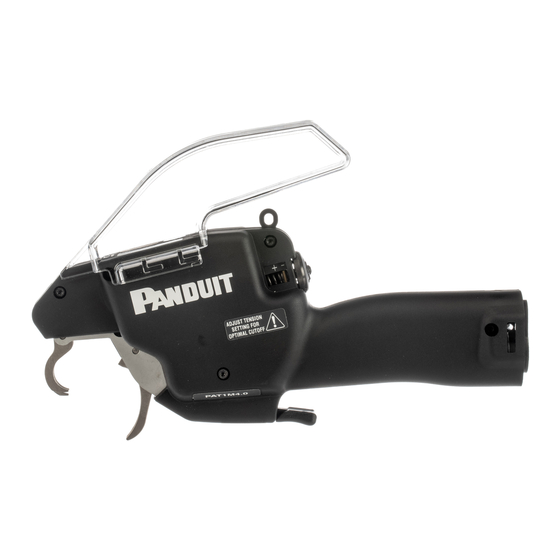

Panduit PAT4.0 Series Quick Manual

© Panduit Corp. 2018
Preventive Maintenance
The following maintenance of the PAT4.0 Family Tool Systems (PAT1M4.0, PAT1M4.0-BT, PAT1.5M4.0 and
PAT1.5M4.0-BT) must be performed daily (as needed) to ensure optimum performance and trouble-free operation of
the system.
INTERVAL
No more than 300 cycles
No more than 2500 cycles (= ½ cable tie reel)
CAUTION: SAFETY GLASSES WITH SIDE SHIELDS MUST BE WORN AT ALL TIMES
DURING THE MAINTENANCE OR ADJUSTMENT OF THE PAT4.0 FAMILY OF TOOLS.
CAUTION: ALWAYS DISCONNECT AIR SUPPLY FROM TOOL BEFORE DISASSEMBLY.
CAUTION: ELECTROSTATIC SENSITIVE DEVICE. DO NOT OPEN OR HANDLE EXCEPT AT A
STATIC FREE WORK STATION.
The following maintenance of the PAT4.0 Family Tool Systems must be completed within the recommended intervals
to ensure trouble-free operation and longevity of the system. Certain extended maintenance procedures must be
performed by your maintenance department. Please notify your maintenance department when these specific
maintenance intervals are reached.
1. Disconnect the PHM Transfer Hose
from the PAT4.0
Remove the tip collector from the tool.

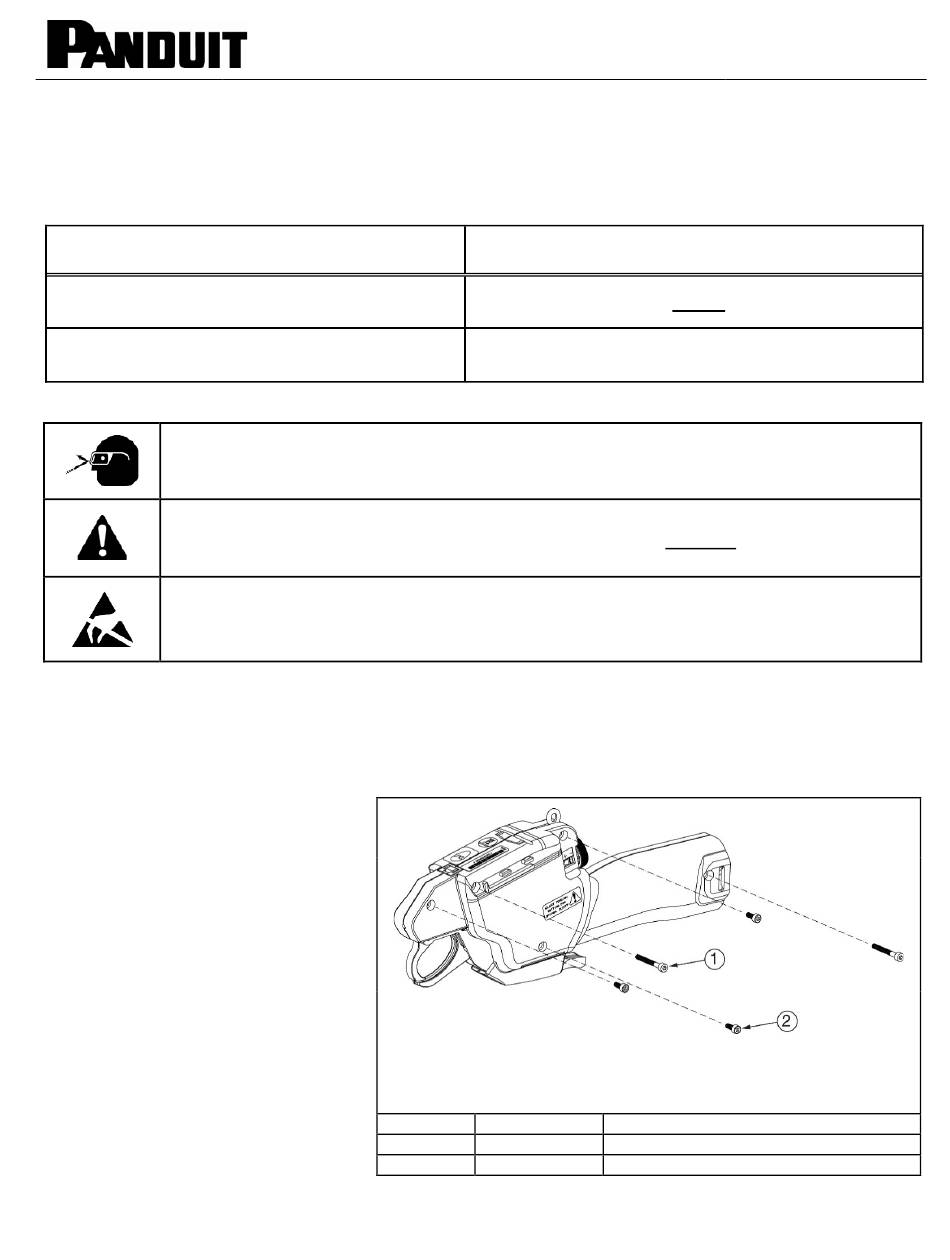

2. Place the tool on a table top with the
jaws to the left. Using a 2.5 mm hex
wrench, remove the five (5) socket
head cap screws from the left-hand
housing. Make note of the correct
locations for each of the screws using
Fig. 1.
3. Perform the following maintenance
procedures shown below at the
prescribed interval:
PA28677A01_01
PAT4.0 Family
Quick Guide Service Document
tool system.
ITEM
1
2
Page: 1 of 4
MAINTENANCE PROCEDURE
Empty tool tip collector before full.
Empty dispenser carrier strip scrap bin.
Fig. 1
QTY
2
3
PA28677A01
Rev. 01 2-2018
SIZE
M3 x 25
M3 x 8
2-2018
