Panduit CT-1123 Operation, Inspection And Maintenance Instructions

OPERATION, INSPECTION and MAINTENANCE INSTRUCTIONS
© Panduit Corp. 2006

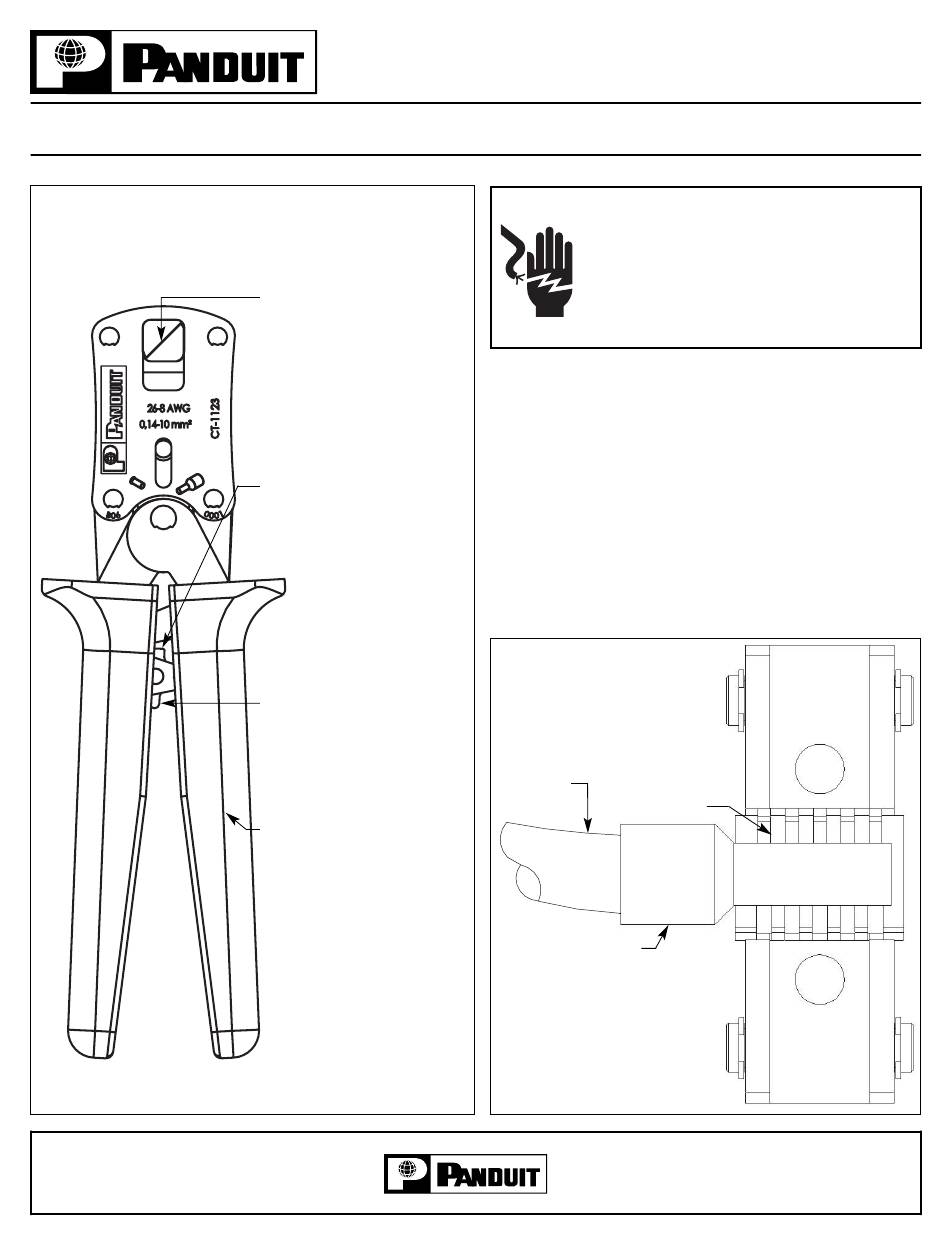

Fig. 1
CT-1123 Tool
Website: www.panduit.com
E-mail: cs@panduit.com
CT-1123 and CT-1104
CONTROLLED CYCLE FERRULE CRIMPING TOOLS
Self-adjusting crimp die
for Insulated and non-
insulated ferrules.
Ferrule size dependent on
wire gage.
Refer to ferrule packaging
for proper ferrule and wire
combinations.
Controlled cycle
mechanism prevents tool
from opening before
crimp cycle is
complete.
Manual release lever,
push forward in the event
that controlled cycle
mechanism must be
released.
Cushioned handle grips
(CT-1104 Tool not shown)
Verify power is "OFF" before working on
to insulate against electrical shock while
CT-1123 and CT-1104 TOOLS
1. With the handles in the open position, insert the ferrule
into the crimp pocket. Make sure that the ferrule is
inserted fully into the crimp die (see Figure 2).
2. Insert the stripped wire into the ferrule until the wire
stops. Refer to ferrule packaging for wire strip length.
3. Crimp the ferrule by closing the handles until the
controlled cycle mechanism releases. Upon release,
the handles will open automatically and the crimped
ferrule can be removed.
Fig. 2
Stripped
Wire
Ferrule
Page: 1 of 2
REV: 00 3-2006
CAUTION:
wiring with these tools.
The plastic grips are for the user's
comfort, and are not intended
working on live electrical circuits.
Crimp Die
For Technical Support:
888-506-5400, ext. 3255
Fax.: 630-759-7532
PA25121A01
