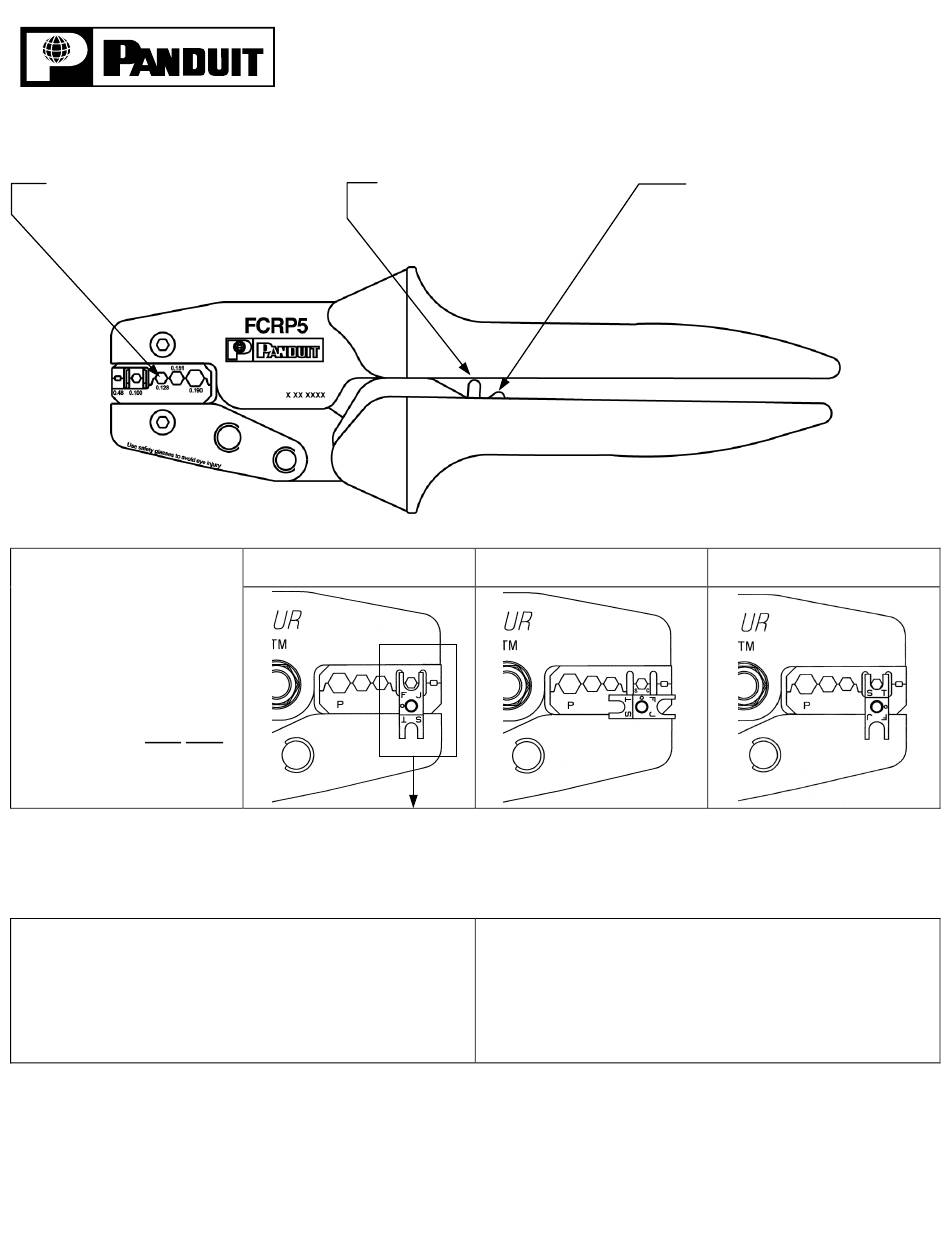

FCRP5 CONTROLLED CYCLE CRIMPING TOOL
OPERATION / INSPECTION / MAINTENANCE / TROUBLESHOOTING INSTRUCTIONS
CRIMP Pockets for fiber optic
connectors. Refer to connectors
installation instructions for proper
crimp pocket. Crimp pockets are
identified by size.
OPERATION
The Ferrule Assembly
Retainer Clip is used to
retain the ferrule assembly
in position when crimping
connectors in the .100"
crimp pocket.
Pull the Ferrule Assembly
Retainer Clip away from the
tool by grasping both ends
and rotating it into the
position shown for the
specific connector type.
REPLACEMENT KIT FOR FERRULE ASSEMBLY RETAINER - PART NUMBER: TD24269A01 - INCLUDES: 1 Clip, 1 Screw, 1 Spring
INSPECTION / MAINTENANCE
NEW TOOLS - BEFORE PLACING INTO SERVICE:
1. CLEAN AND INSPECT THE TOOL FOR DAMAGE.
2. CLEAN EXCESS OIL FROM THE CRIMP DIES AND USE.
Copyright © 2001 Panduit Corp.
All Rights Reserved
CONTOUR CRIMP
CONTOUR CRIMP
CONTOUR CRIMP
CONTOUR CRIMP
Controlled cycle mechanism
prevents tool from opening
before crimp cycle is
complete.
For FJ Connector
For SC Connector
All Panduit crimping tools are calibrated and inspected
before they are shipped from the factory. All new tools
should be inspected before being used.
New tools are shipped, factory lubricated, in protective
packaging. After inspection, simply clean any excess oil
from the crimping dies and place into service.
J
Manual release lever, push
forward in the event that
controlled cycle mechanism
must be released.
For ST Connector
PA23992A01
10-2001
1
