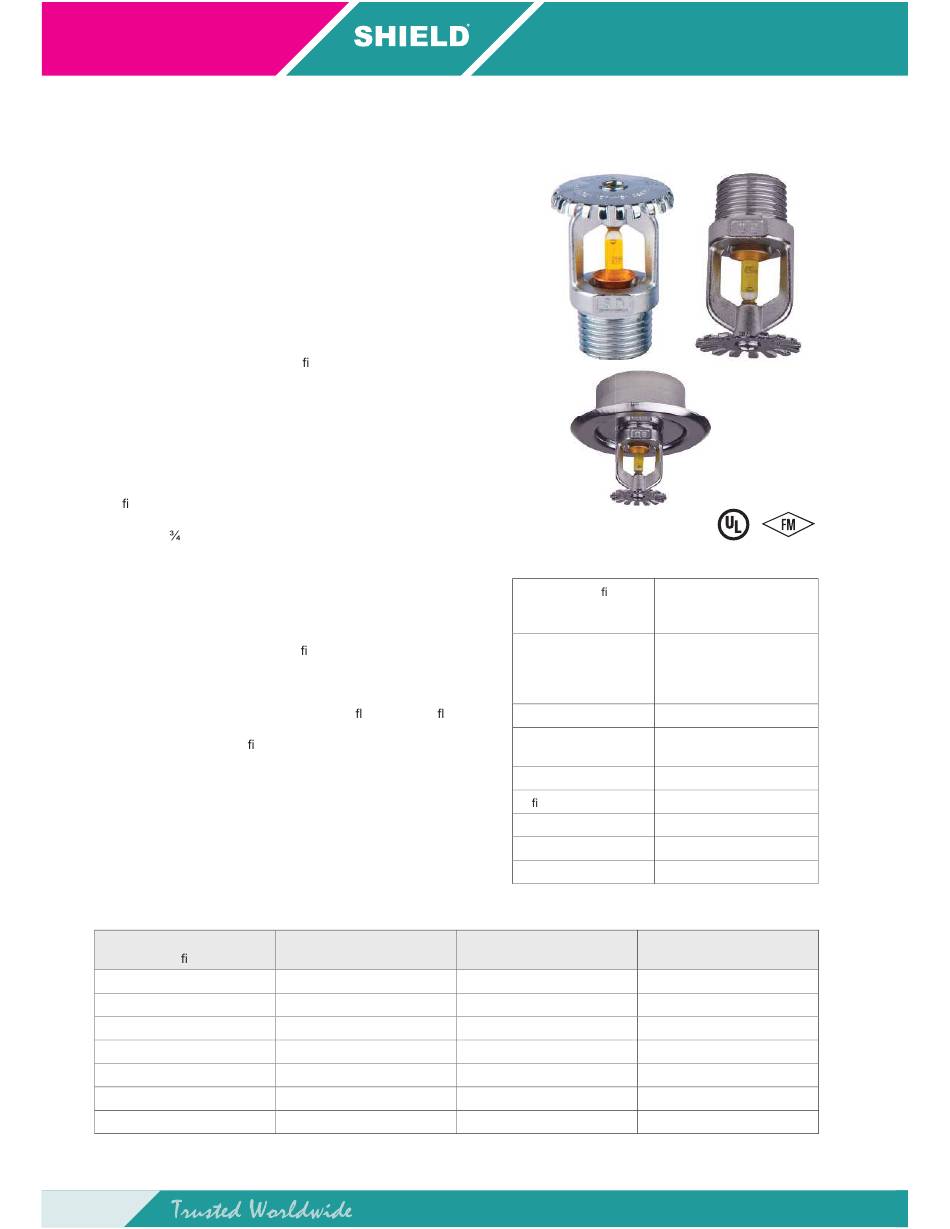

Shield SD1010 Manual

SPRINKLER HEAD
Upright, Pendent & Recessed Pendent Sprinklers
MODEL: SD1010, SD1015, SD1030, SD1032
DESCRIPTION
The SHIELD Sprinklers, SD1010, SD1015, SD1030, SD1032
(Glass Bulb Type), Standard Ori ce, Upright, Pendent and
Recessed Pendent type, design incorporates state-of-the-art,
heat responsive, frangible glass bulb design (standard or quick
response) for prompt, precise operation.
The die cast frame is more streamlined and attractive than
traditional sand cast frames. It is cast with a hex-shaped wrench
boss to allow easy tightening from many angles, reducing assembly
effort. This sprinkler is available in various temperature ratings
and nishes to meet many design requirements. The recessed
pendent should be utilized with a recessed escutcheon which
provides up " of adjustments. All Sprinklers are manufactured
using the time proven Belleville seal used exclusively by all major
manufactures to ensure long life and safe operation.
SPRINKLER OPERATION
The operating mechanism is a frangible glass bulb which contains
a heat responsive liquid. During a re, the ambient temperature
rises causing the liquid in the bulb to expand. When the ambient
temperature reaches the rated temperature of the sprinkler, the
bulb shatters. As a result, the waterway is cleared of all sealing
parts and water is discharged towards the de ector. The de ector
is designed to distribute the water in a pattern that is most
effective in controlling the re.
MAXIMUM COVERAGE
Standard spray coverage is up to: Light Hazard = 225 square
feet(20.9 sq.m); Ordinary Hazard = 130 square feet(12.1 sq.m) per
NFPA 13.
RATINGS
Sprinkler Temperature
Classi cation
Ordinary**
Ordinary
Intermediate
Intermediate
High*
Extra High*
Open*
* Non-Approved
**UL Listed only.
6
Norminal Sprinkler N.F.P.A Maximum Ambient
Temperature Rating (Ceiling) Temp.(Allowed)
155ºF/57ºC
155ºF/68ºC
175ºF/79ºC
200ºF/93ºC
286ºF/141ºC
360ºF/182ºC
Open
TECHNICAL SPECIFICATION
Sprinkler Identi cation Standard SD1015, SD1010
Number (bulb 5mm), Quick Response
SD1030, SD1032 (bulb 3mm)

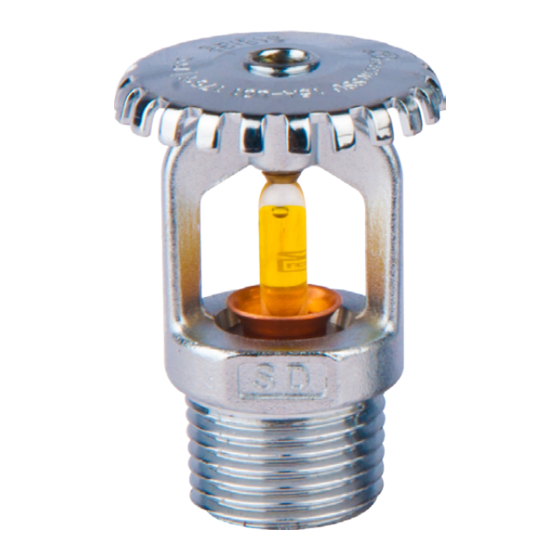

Style Upright Sprinkler SD1015,
SD1032, Pendent &
Recessed Pendent
SD1010, SD1030
K Factor 5.6gpm/psi
Response Time Index Standard 50
(RTI) Quick Response 30
½ "NPT(15mm)
Nominal Thread Size
Or ce Size 13mm
Max. Working Pressure 175PSI(1200kPa)
Factory Hydrostatic Test 100%@500PSI(3450 kPa)
Min. Operation Pressure 7 PSI(48 kPa)
Glass Bulb Color
100ºF/38ºC
100ºF/38ºC
150ºF/65ºC
150ºF/65ºC
225ºF/107ºC
300ºF/149ºC
-
www.shieldglobal.com
½ ½
. (80lpm/bar )
Orange
Red
Yellow
Green
Blue
Mauve
No Bulb
