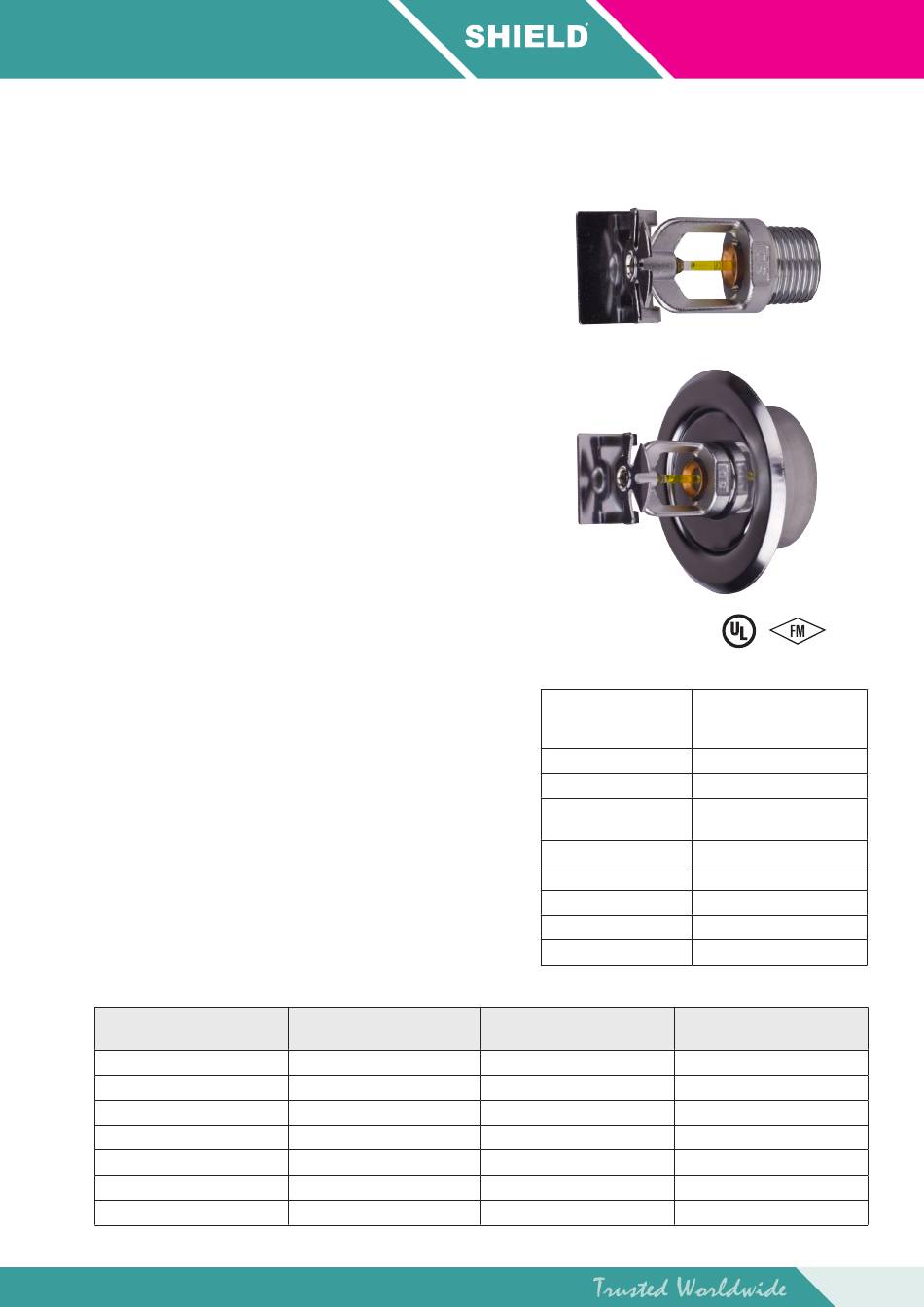

Shield SD1133 Manual

SPRINKLER HEAD
Horizontal Sidewall Sprinkler
MODEL: SD1133, SD1121
DESCRIPTION
The SD1133, SD1121, ½" orifice, standard horizontal sidewall
sprinkler is designed for standard or recessed installation. The
design provides a crescent-shaped water discharge pattern for
installation along a wall or under a beam or ceiling. The design
incorporates state-of-the-art, heat responsive, frangible glass
bulb design (standard or quick response) for prompt, precise
operation. The die cast frame is more streamlined and attractive
than traditional sand cast frames.
It is cast with a hex-shaped wrench boss to allow easy tightening
from many angles, reducing assembly effort. This sprinkler is
available in various temperature ratings and finishes to meet
many design requirements. The recessed pendent should be
utilized with a recessed escutcheon which provides up �" of
adjustments.
SPRINKLER OPERATION
The operating mechanism is a frangible glass bulb which contains
a heat responsive liquid. During a fire, the ambient temperature
rises causing the liquid in the bulb to expand.
When the ambient temperature reaches the rated temperature of
the sprinkler, the bulb shatters. As a result, the waterway is cleared
of all sealing parts and water is discharged towards the deflector.
The deflector is designed to distribute the water in a pattern that is
most effective in controlling the fire.
MAXIMUM COVERAGE
Standard spray coverage is up to: Light Hazard = 196 square
feet(18,2 sq.m); Ordinary Hazard = 100 square feet(9,3 sq.m)per
NFPA 13.
RATINGS
Sprinkler Temperature
Classification
Ordinary
Ordinary
Intermediate**
Intermediate**
High*
Extra High*
Open*
* Non-Approved ** FM Approved only
www.shieldglobal.com
Norminal Sprinkler N.F.P .A Maximum Ambient
Temperature Rating
155ºF/57ºC
155ºF/68ºC
175ºF/79ºC
200ºF/93ºC
286ºF/141ºC
360ºF/182ºC
Open
TECHNICAL SPECIFICATION
Sprinkler Identification
Number
Style
K Factor
Response Time Index
(RTI)
Nominal Thread Size
Orfice Size
Max. Working Pressure
Factory Hydrostatic Test 100%@500PSI(3450 kPa)
Min. Operation Pressure
(Ceiling) Temp.(Allowed)
100ºF/38ºC
100ºF/38ºC
150ºF/65ºC
150ºF/65ºC
225ºF/107ºC
300ºF/149ºC
-
Standard SD1133 (bulb
5mm), Quick Response
SD1121 (bulb 3mm)
Horizontal Sidewall
½ ½
5.6gpm/psi . (80lpm/bar )
Standard 50
Quick Response 30
½"NPT(15mm)
13mm
175PSI(1200kPa)
7 PSI(48 kPa)
Glass Bulb Color
Orange
Red
Yellow
Green
Blue
Mauve
No Bulb
11
