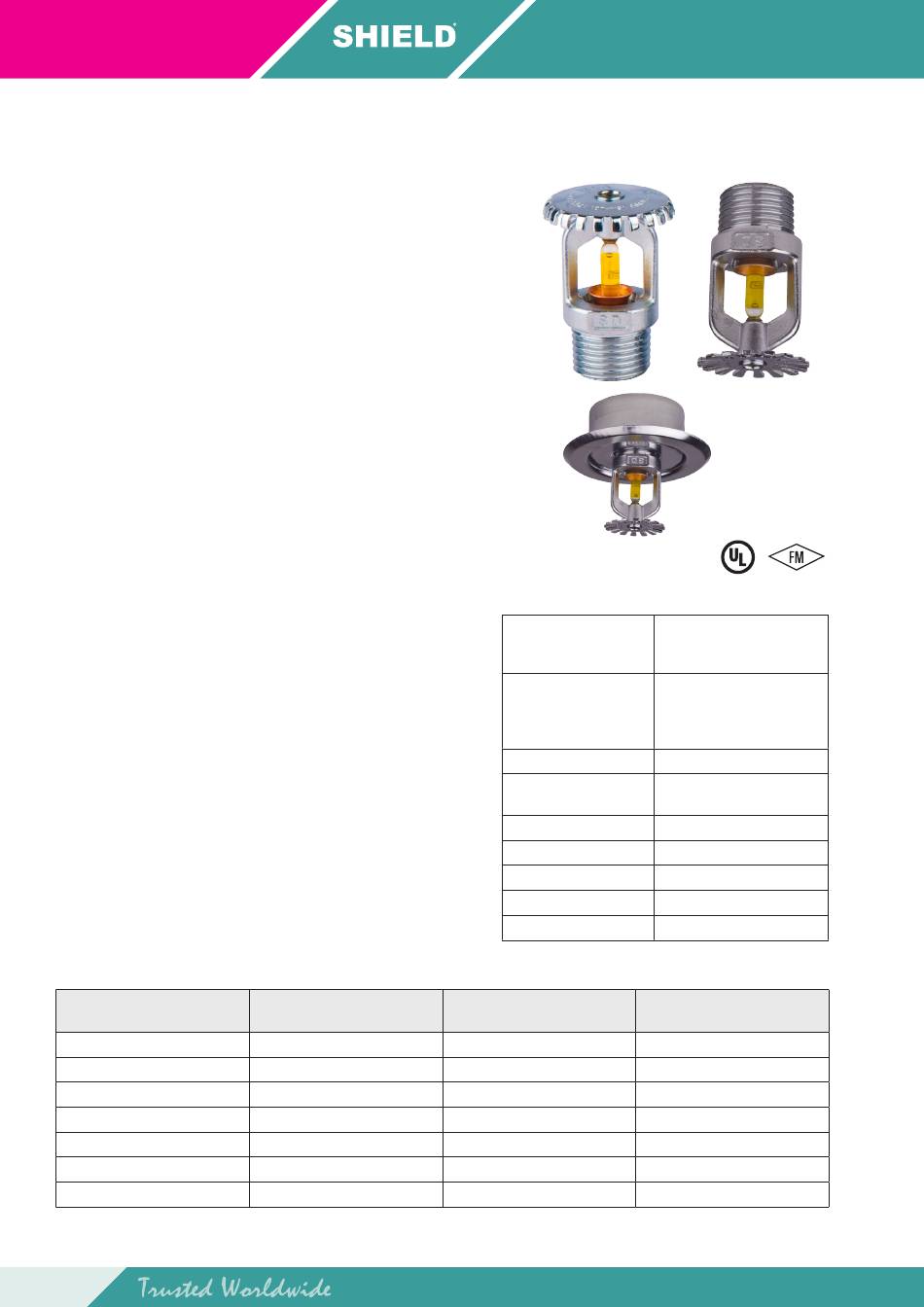

Shield SD1010 Quick Manual

SPRINKLER HEAD
Upright, Pendent & Recessed Pendent Sprinklers
MODEL: SD1010, SD1015, SD1030, SD1032

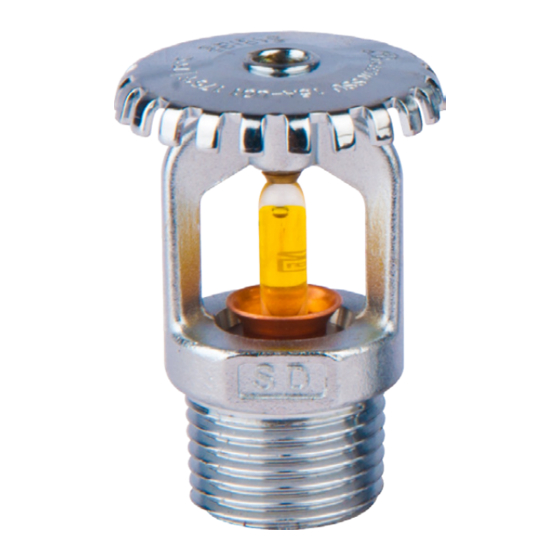

DESCRIPTION
The SHIELD Sprinklers, SD1010, SD1015, SD1030, SD1032
(Glass Bulb Type), Standard Orifice, Upright, Pendent and
Recessed Pendent type, design incorporates state-of-the-art,
heat responsive, frangible glass bulb design (standard or quick
response) for prompt, precise operation.
The die cast frame is more streamlined and attractive than
traditional sand cast frames. It is cast with a hex-shaped wrench
boss to allow easy tightening from many angles, reducing assembly
effort. This sprinkler is available in various temperature ratings
and finishes to meet many design requirements. The recessed
pendent should be utilized with a recessed escutcheon which
provides up �" of adjustments. All Sprinklers are manufactured
using the time proven Belleville seal used exclusively by all major
manufactures to ensure long life and safe operation.
SPRINKLER OPERATION
The operating mechanism is a frangible glass bulb which contains
a heat responsive liquid. During a fire, the ambient temperature
rises causing the liquid in the bulb to expand. When the ambient
temperature reaches the rated temperature of the sprinkler, the
bulb shatters. As a result, the waterway is cleared of all sealing
parts and water is discharged towards the deflector. The deflector
is designed to distribute the water in a pattern that is most
effective in controlling the fire.
MAXIMUM COVERAGE
Standard spray coverage is up to: Light Hazard = 225 square
feet(20.9 sq.m); Ordinary Hazard = 130 square feet(12.1 sq.m) per
NFPA 13.
RATINGS
Sprinkler Temperature
Classification
Ordinary**
Ordinary
Intermediate
Intermediate
High*
Extra High*
Open*
* Non-Approved
**UL Listed only.
6
Norminal Sprinkler N.F.P .A Maximum Ambient
Temperature Rating
155ºF/57ºC
155ºF/68ºC
175ºF/79ºC
200ºF/93ºC
286ºF/141ºC
360ºF/182ºC
Open
TECHNICAL SPECIFICATION
Sprinkler Identification
Number
Style
K Factor
Response Time Index
(RTI)
Nominal Thread Size
Orfice Size
Max. Working Pressure
Factory Hydrostatic Test 100%@500PSI(3450 kPa)
Min. Operation Pressure
(Ceiling) Temp.(Allowed)
100ºF/38ºC
100ºF/38ºC
150ºF/65ºC
150ºF/65ºC
225ºF/107ºC
300ºF/149ºC
-
Standard SD1015, SD1010
(bulb 5mm), Quick Response
SD1030, SD1032 (bulb 3mm)
Upright Sprinkler SD1015,
SD1032, Pendent &
Recessed Pendent
SD1010, SD1030
½ ½
5.6gpm/psi . (80lpm/bar )
Standard 50
Quick Response 30
½"NPT(15mm)
13mm
175PSI(1200kPa)
7 PSI(48 kPa)
Glass Bulb Color
Orange
Red
Yellow
Green
Blue
Mauve
No Bulb
