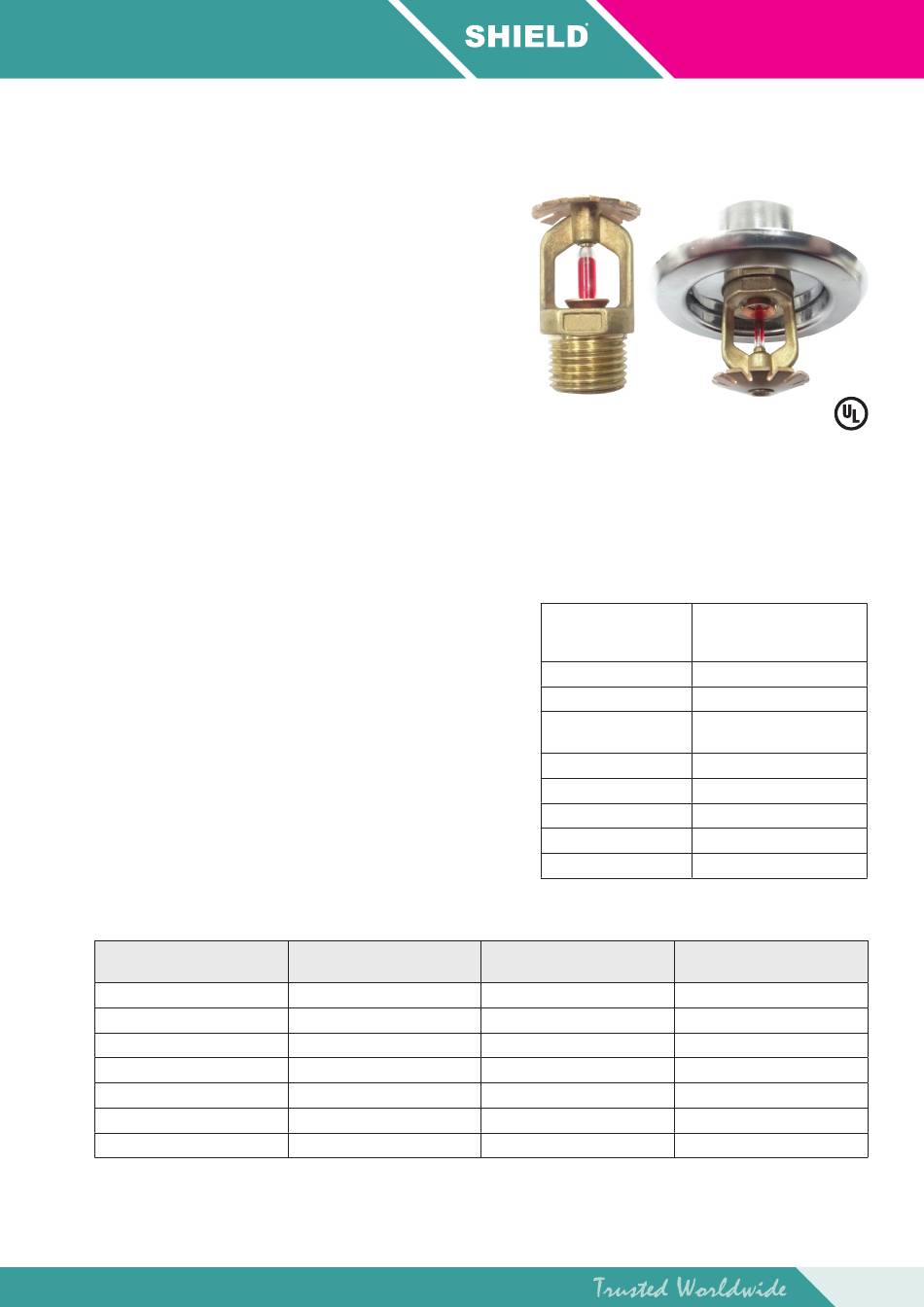

Shield SD1025 Instruction Manual

SPRINKLER HEAD
Conventional Sprinkler
MODEL: SD1025, SD1026

DESCRIPTION

The SHIELD Sprinkler, SD1025, SD1026 (Glass Bulb Type)
½" Orifice, Conventional sprinkler is designed for standard or
recessed installation. The design incorporates state-of-the-art,
heat responsive, frangible glass bulb design (standard or quick
response) for prompt, precise operation. The die cast frame is
more streamlined and attractive than traditional sand cast frames.
It is cast with a hex-shaped wrench boss to allow easy tightening
from many angles, reducing assembly effort. This sprinkler is
available in various temperature ratings and finishes to meet
many design requirements. The recessed pendent should be
utilized with a recessed escutcheon which provides up �" of
adjustments. All sprinklers are manufactured using the time
proven Belleville seal used exclusively by all major manufactures
to ensure long life and safe operation.

SPRINKLER OPERATION

The operating mechanism is a frangible glass bulb which contains
a heat responsive liquid. During a fire, the ambient temperature
rises causing the liquid in the bulb to expand.
When the ambient temperature reaches the rated temperature
of the sprinkler, the bulb shatters. As a result, the waterway is
cleared of all sealing parts and water is discharged towards the
deflector. The deflector is designed to distribute the water in a
pattern that is most effective in controlling the fire.

RATINGS

Sprinkler Temperature
Classification
Ordinary
Ordinary
Intermediate
Intermediate
High*
Extra High*
Open*
* Non-Approved
www.shieldglobal.com
Norminal Sprinkler N.F.P .A Maximum Ambient
Temperature Rating
135ºF/57ºC
155ºF/68ºC
175ºF/79ºC
200ºF/93ºC
286ºF/141ºC
360ºF/182ºC
Open

MAXIMUM COVERAGE

Standard spray coverage is up to: Light Hazard = 229
square feet(20.9 sq.m); Ordinary Hazard = 130 square
feet(12.1 sq.m)per NFPA 13.

TECHNICAL SPECIFICATION

Sprinkler Identification
Number
Style
K Factor
Response Time Index
(RTI)
Nominal Thread Size
Orifice Size
Max. Working Pressure
Factory Hydrostatic Test 100%@500PSI(3450 kPa)
Min. Operation Pressure
(Ceiling) Temp.(Allowed)
100ºF/38ºC
100ºF/38ºC
150ºF/65ºC
150ºF/65ºC
225ºF/107ºC
300ºF/149ºC
-
Standard SD1025 (bulb
5mm), Quick Response
SD1026 (bulb 3mm)
Conventional Sprinkler
½ ½
5.6gpm/psi . (80lpm/bar )
Standard Response 50
Quick Response 30
½
"NPT (15mm)
13mm
175PSI(1200kPa)
7 PSI(48 kPa)
Glass Bulb Color
Orange
Red
Yellow
Green
Blue
Mauve
No Bulb
