Technical Documentation

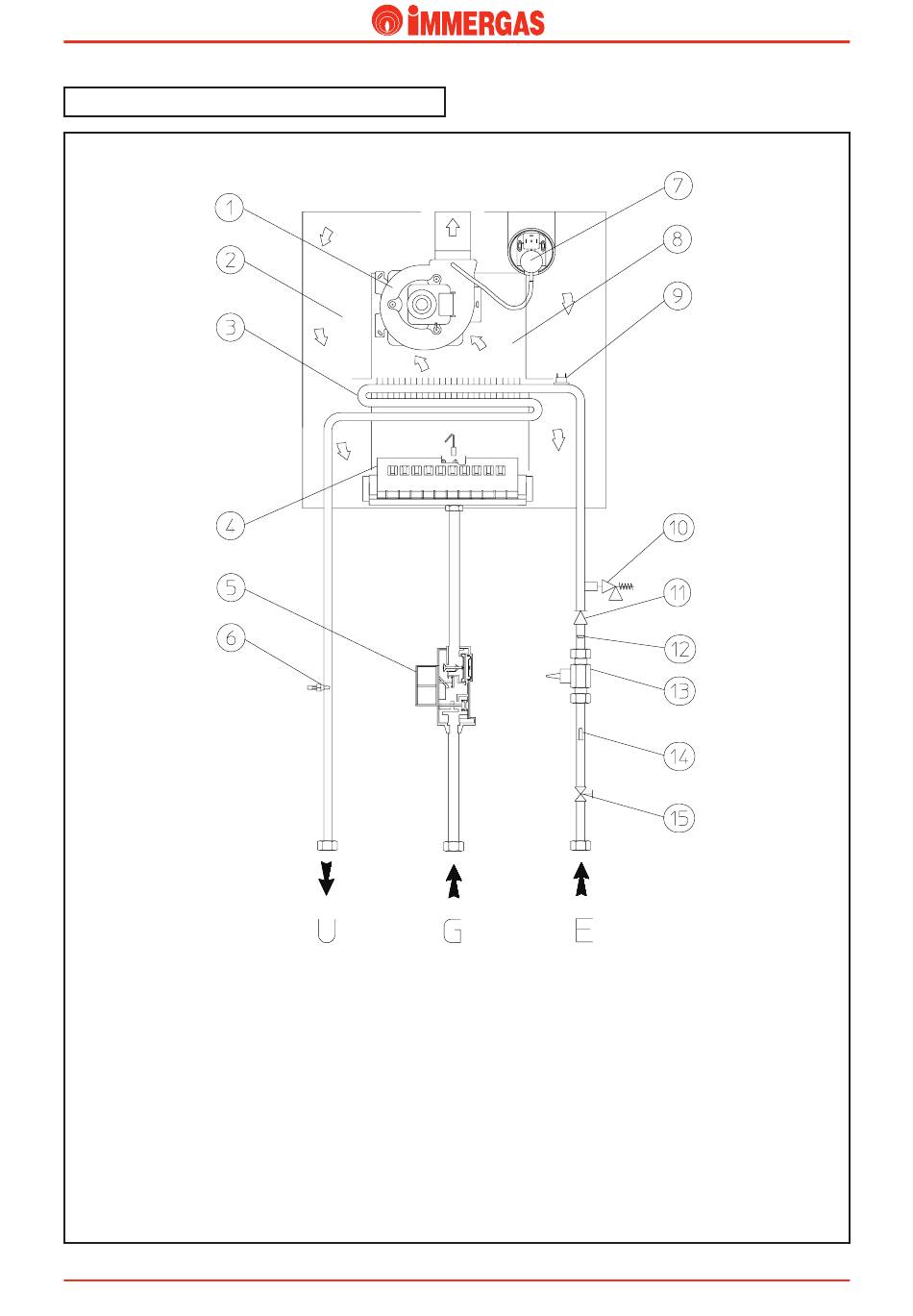

Super CAESAR hydraulic diagram.
Legend:
1 - Fan
2 - Sealed chamber
3 - Heat exchanger
4 - Burner
5 - Gas valve
6 - NTC probe
7 - Flue pressure switch
8 - Draught diverter
9 - Overheating safety thermostat
10 - 10 bar safety valve
11 - One-way valve
STSC ed 09/04
Technical Documentation
12 - Flow limiter
13 - Flow meter
14 - Water inlet filter
15 - D.h.w. inlet cock
U - D.h.w. outlet
G - Gas supply
E - D.h.w. inlet
4
Super CAESAR
