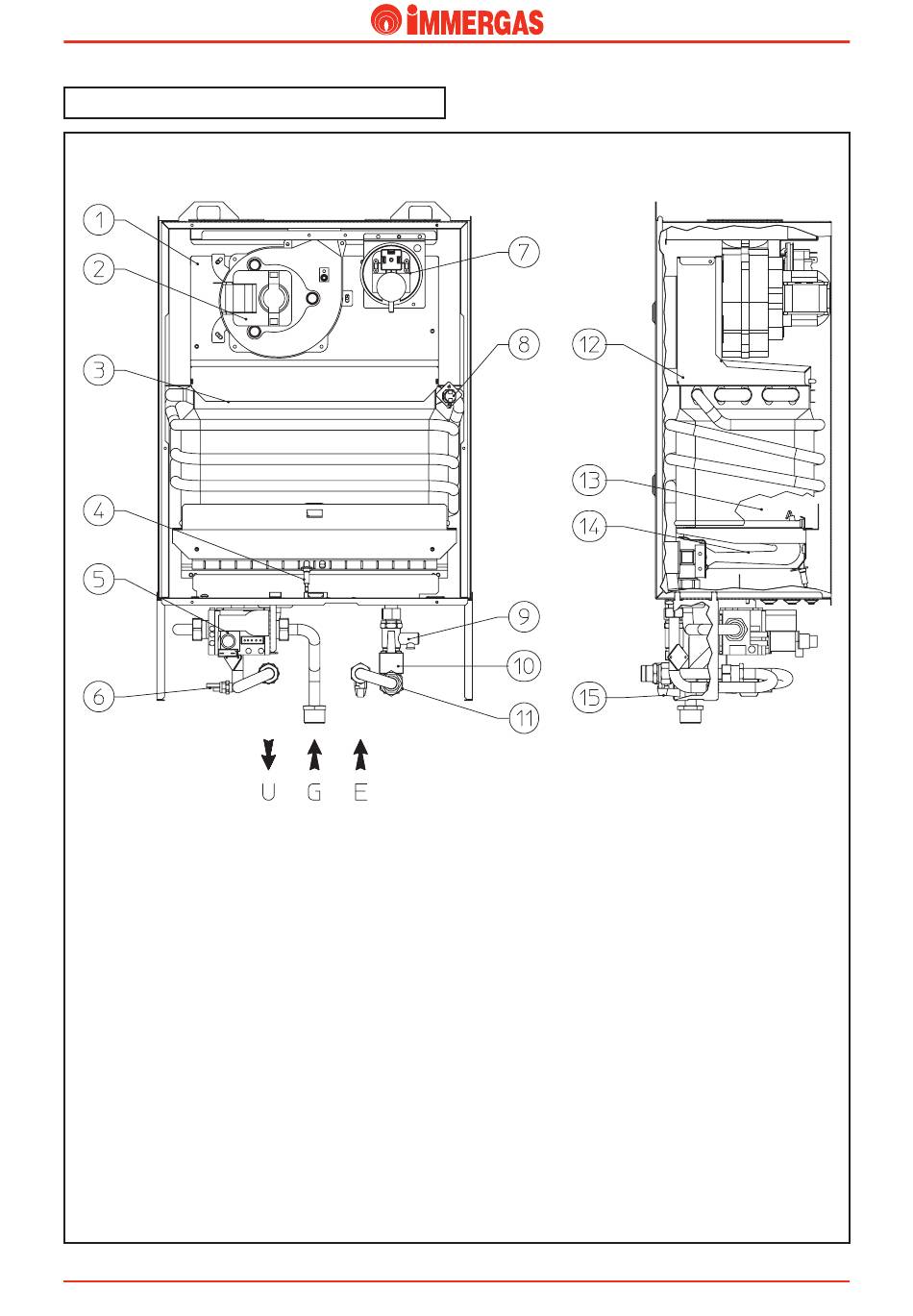

Super CAESAR Main component.
Legend:
1 - Sealed chamber
2 - Fan
3 - D.h.w. exchanger
4 - Ignition/detection electrode
5 - Gas valve
6 - NTC probe
7 - Flue pressure switch
8 - Overheating safety thermostat
9 - 10 bar safety valve / one way valve
10 - Flow meter
11 - Flow limiter
12 - Draught diverter
13 - Combustion chamber
14 - Burner
15 - Cold water inlet cock
STSC ed 09/04
