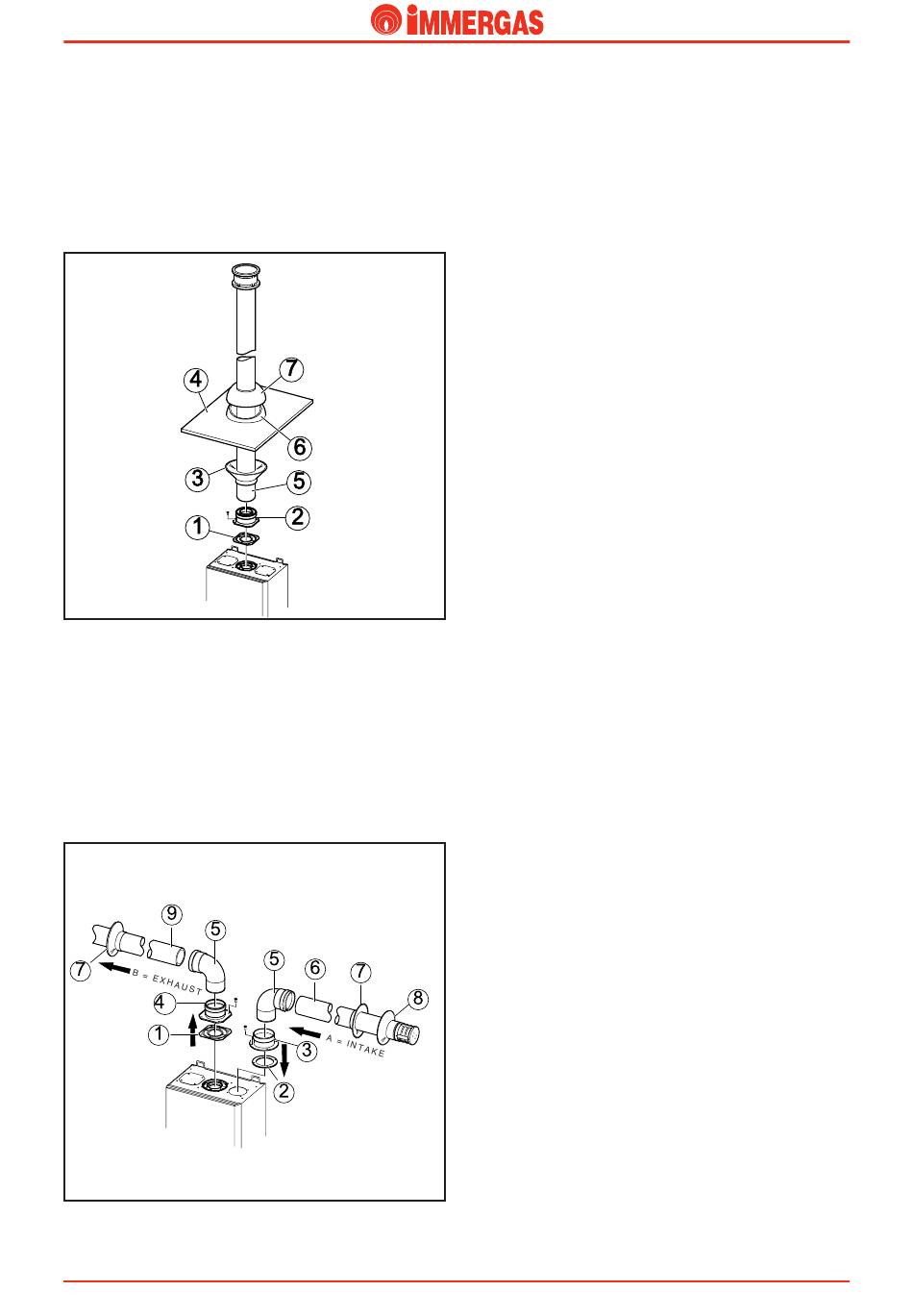

Ø 60/100 vertical concentric kit.
The exhaust pipe (Ø 60 mm) is fitted inside the intake pipe
(Ø 100 mm).
Connection to the appliance is by means of a flange (2) which,
by means of the necessary extensions, must be connected to the
intake and exhaust flue terminal (5) with aluminium tile (4).
The maximum overall length allowed is 4.7 straight vertical
metres.
Ø 80/80 twin pipe.
The pipes both have a diameter of 80 mm.
Connections to the appliance are by means of two special
flanges for exhaust (4) from the central duct and for intake
(3) from one of the two side holes.
The maximum length allowed (intake + exhaust) is 33 straight
horizontal metres and 41 straight vertical metres.
To avoid problems of condensate, the exhaust pipe should be
restricted to a max of 5 m.
