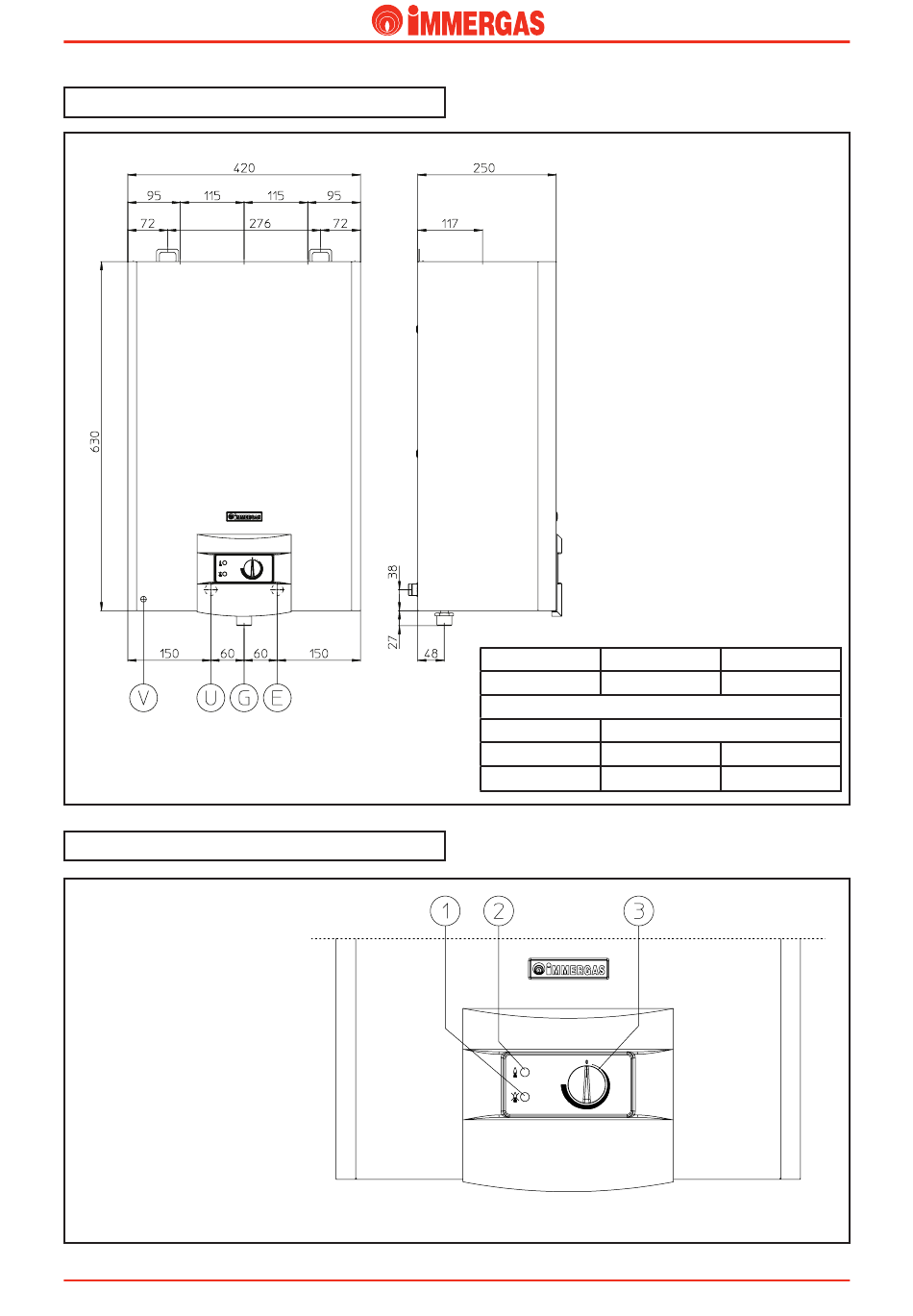

Main dimensions and connections.
Control panel.
Legend:
1 - Red indicating led - ignition lock
2 - Yellow indicating led - flame On
3 - Functioning knob: 0 / (Reset) and On / temperature selection
STSC ed 09/04
Technical Documentation
Legend:
Height (mm)
Width (mm)
630
GAS
G
3/4"
2
U - Domestic hot water outlet
G - Gas supply
E - D.h.w. inlet
V - Power connections
Depth (mm)
420
250
Connections
DOMESTIC HOT WATER
U
E
1/2"
1/2"
Super CAESAR
